Poulan Paramount PT1000-01 Electric Trimmer

Model: PT1000-01 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

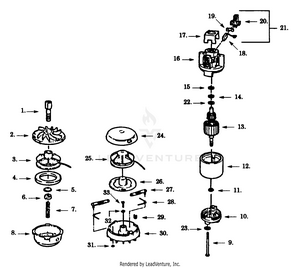

BRUSH ASSEMBLY

...
...
1
Shaft Adapter-Model PT1000-00,PT1200-00 PLN-534787800
...
2
Rear Plate PLN-534167215
...
3
PT1000-00 PLN-534167805
...
3
PT1200-00 PLN-534167815
...
4
Foam Pad PLN-534167700
...
5
O-Ring PLN-534316200
...
6
Adapter Nut PLN-534166700
...
7
Spring PLN-534819200
...
8
Hub Ass'y. PLN-534167935
...
9
Screw PLN-534228703
...
10
Endbell Ass'y. (Drive) PLN-534207101
...
11
Washer PLN-534228800
...
12
Field Ass'y. PLN-534227004
...
13
Armature Ass'y. PLN-534767701
...
14
Washer, (As required) PLN-534228802
...
15
Washer PLN-534238903
...
16
Endbell Ass'y. (Brush) PLN-534227501
...
17
Insulator PLN-534226000
...
18
Brush PLN-534227800
...
19
Brush Spring PLN-534228000
...
20
Brush Holder PLN-534227700
...
21
Brush Kit (Incl.18-20) PLN-534450400
...
22
E Clip PLN-534246700
...
23
E Clip PLN-534747002
...
24
Cover PLN-534919200
...
25
Spool w/Line PLN-534919001
...
26
Cam PLN-534100640
...
27
Arm PLN-534918800
...
28
Spring PLN-534908501
...
29
Line Saver PLN-534918500
...
30
Hub PLN-534972601
...
31
Nut PLN-534400700
...
32
Washer PLN-534908700
...
33
Screw PLN-534978600

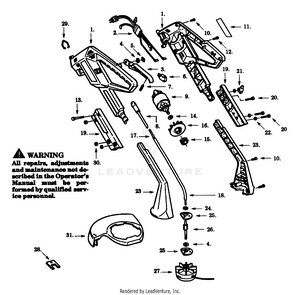

TRIMMER ASSEMBLY

...
...
1
Model PT1000-00,PT1200-00,PT1000-01A PLN-534787902
...
1
Model PT1000-01,PT1200-01 PLN-534982300
...
2
Harness Ass'y. PLN-534789301
...
3
Trigger PLN-534788305
...
4
Washer, (As required) PLN-534228802
...
5
Push Nut PLN-534790800
...
6
Switch PLN-534789000
...
7
Trigger Spring PLN-534790700
...
8
Upper Sleeve Model PT1000-01,PT1200-01, PT1000-01A PLN-534788905
...
9
Motor Ass'y. PLN-534768301
...
10
Screw PLN-534790300
...
11
Warning Label (Not a serviceable part) PLN-534798700
...
12
Screw PLN-534790301
...
13
Screw PLN-534903100
...
14
Washer PLN-534757900
...
15
Fan Clamp Model PT1000-00,PT1200-00 Only PLN-534560103
...
16
Fan PLN-534526802
...
17
Model PT1000-00,PT1200-00 PLN-534788505
...
17
Model PT1000-01,PT1200-01,PT1000-01A PLN-534901003
...
18
Model PT1000-00,PT1200-00 PLN-534788902
...
18
Model PT1000-01,PT1200-01,PT1000-01A PLN-534788903
...
19
Housing Set PLN-534788102
...
20
Screw PLN-534829601
...
21
Knob PLN-534903000
...
22
Washer PLN-534828701
...
23
Spindle Housing Set PLN-534788005
...
24
Felt Washer PLN-534636002
...
25
Bearing Holder PLN-534790600
...
26
Shaft Adapter PLN-534789901
...
27
Model PT1000-00,PT1200-00 PLN-534167005
...
27
Model PT1000-01,PT1200-01,PT1000-01A PLN-534167011
...
28
Spanner Wrench PLN-534166800
...
29
Hanger PLN-534270100
...
30
Nut PLN-534790500
...
31
Model PT1000-00,PT1200-00 PLN-534337100
...
31
Model PT1000-01,PT1200-01 PLN-534790200
...
31
Model PT1000-01A PLN-534954300
...
...
...
