Poulan Paramount PB80C-00 Electric Blower

Model: PB80C-00 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

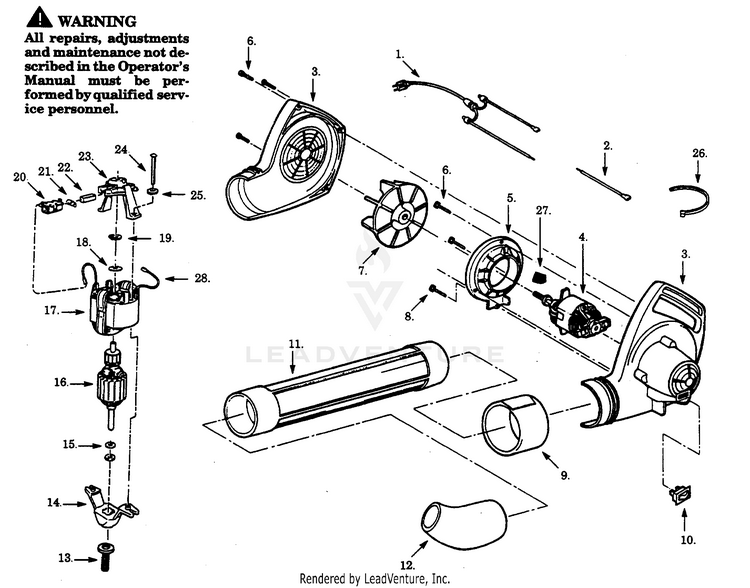

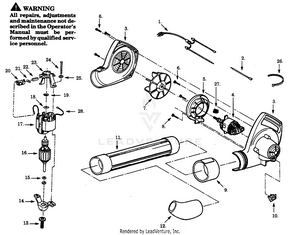

BLOWER ASSEMBLY

...
...
1
Harness Ass'y. PLN-534441001
...
2
Leadwire Ass'y. PLN-534440800
...
3
Housing Set PLN-534444612
...
4
Motor/Adapter Ass'y. PLN-534444101
...
5
Mounting Plate PLN-534408505
...
6
Screw PLN-534222400
...
7
Impeller PLN-534319315
...
8
Screw PLN-534184700
...
9
Ferrule Sleeve PLN-534408415
...
10
Switch Ass'y. PLN-534332502
...
11
Outlet Tube PLN-534352705
...
12
Curved Nozzle PLN-534373405
...
13
Impeller Adapter PLN-534440700
...
14
Endbell Ass'y. (Drive) PLN-534710671
...
15
Washer PLN-534520022
...
16
Armature Ass'y. PLN-534440201
...
17
Field Ass'y. PLN-534440100
...
18
Washer PLN-534520031
...
19
Retaining Ring PLN-534246701
...
20
Brush Holder PLN-534260007
...
21
Brush Spring PLN-534570009
...
22
Brush PLN-534200018
...
23
Endbell Ass'y.(Brush) PLN-534710641
...
24
Screw PLN-534500262
...
25
Lockwasher PLN-534520020
...
26
Tie Wrap PLN-534134704
...
27
Rubber Spacer PLN-534569300
...
28
Lead Wire PLN-534810031
...
...
...
