Poulan Paramount PB356 Electric Blower

Model: PB356 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

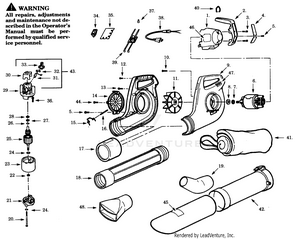

BLOWER ASSEMBLY

...
...
1
Motor Cover PLN-534319602
...
2
Handle PLN-534319705
...
3
Screw PLN-530015772
...
4
Plate Warning PLN-534404355
...
5
Screw PLN-534908400
...
6
Motor PLN-534992001
...
7
Retaining Ring PLN-534747011
...
8
Washer PLN-534757900
...
9
L.H/R.H. Housing PLN-534491722
...
10
Screw PLN-534967501
...
11
Impeller Ass'y. PLN-534398315
...
12
Screw PLN-534790302
...
13
Screw PLN-534790300
...
14
Inlet Cover PLN-534498205
...
15
Spring PLN-534475900
...
16
Hinge Pin PLN-534327201
...
17
Ferrule Sleeve PLN-534408415
...
18
Outlet Tube PLN-534352705
...
19
Concentrated Nozzle PLN-530401318
...
20
Screw PLN-534228700
...
21
Endbell Ass'y. (Drive) PLN-534207101
...
22
Washer PLN-534228802
...
23
Field Ass'y. PLN-534227001
...
24
Retaining Ring PLN-534994500
...
25
Armature Ass'y. PLN-534920101
...
26
Retaining Ring PLN-534246700
...
27
Washer PLN-534228800
...
28
Washer PLN-534238903
...
29
Endbell Ass'y. (Brush) PLN-534227501
...
30
Insulator PLN-534226000
...
31
Brush PLN-534227800
...
32
Brush Spring PLN-534228000
...
33
Brush Holder PLN-534227700
...
34
On-Off Switch Ass'y. PLN-534447903
...
35
Mounting Board PLN-534334800
...
36
Screw PLN-534624001
...
37
Wire Nut PLN-534253201
...
38
Power Cord/Harness Ass'y. PLN-534970301
...
39
P.C. Board Ass'y. PLN-534807002
...
40
Hanger PLN-534270100
...
41
Vacuum Bag PLN-530095114
...
42
Vacuum Tube PLN-534528705
...
43
Brush Kit (Incl. 31,32,33) PLN-534450400
...
44
Screw PLN-534826801
...
45
Warning Label-Tube (Not a serviceable part) PLN-534970600
...
46
Motor Cover Label (Not a serviceable part) PLN-534970800
...
47
Switch Position Label PLN-534500300
...
48
Nozzle PLN-530053890
...
xx
Operator Manual Not Shown. PLN-530082610
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534825314
...
xx
Warning Decal (Not a serviceable part) Not Shown. PLN-534971000
...
...
...
