product name

Poulan Paramount PB300-01 Electric Blower

Model: PB300-01 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

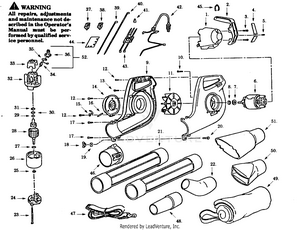

BLOWER ASSEMBLY

...
...
1
Motor Cover PLN-534319602
...
2
Handle PLN-534319702
...
3
Screw PLN-534136402
...
4
Plate PLN-534404355
...
5
Screw PLN-534193700
...
6
Motor PLN-534225010
...
7
Washer PLN-534136100
...
8
Retaining Ring PLN-534747002
...
9
R.H./L.H. Housing PLN-534334711
...
10
Screw PLN-534136401
...
11
Impeller Ass'y. PLN-534398315
...
12
Screw PLN-534184700
...
13
Screw PLN-534222400
...
14
Inlet Cover PLN-534398605
...
15
Spring PLN-534377000
...
16
Hinge Pin PLN-534327200
...
17
SCREW PLN-534222402
...
18
Wing Nut PLN-534352300
...
19
Washer PLN-534356900
...
20
Screw PLN-534352400
...
21
Outlet Tube PLN-534352705
...
22
Curved Nozzle PLN-534373405
...
23
Screw PLN-534228700
...
24
Endbell Ass'y. (Drive) PLN-534207101
...
25
Washer PLN-534228800
...
26
Field Ass'y. PLN-534227001
...
27
Retaining Ring PLN-534747002
...
28
Armature Ass'y. PLN-534225110
...
29
Retaining Ring PLN-534246700
...
30
Washer PLN-534228802
...
31
Washer PLN-534238903
...
32
Endbell Ass'y. (Brush) PLN-534227501
...
33
Insulator PLN-534226000
...
34
Brush PLN-534227800
...
35
Brush Spring PLN-534228000
...
36
Brush Holder PLN-534227700
...
37
On-Off Switch PLN-534332506
...
38
Speed Switch PLN-534332500
...
39
Leadwire Ass'y. PLN-534433700
...
40
Leadwire Ass'y. PLN-534433800
...
41
Connector PLN-534561000
...
42
Power Cord Ass'y. PLN-534434000
...
43
P.C. Board Ass'y. PLN-534335300
...
44
Mounting Board PLN-534334800
...
45
Hanger PLN-534270100
...
46
Adapter Tube Ass'y. PLN-534393800
...
47
Shoulder Strap PLN-534358900
...
48
Adapter PLN-534333705
...
49
Vacuum Bag PLN-534339900
...
50
Diffuser Nozzle PLN-534339405
...
51
Vacuum Nozzle Ass'y. PLN-534377200
...
52
Brush Kit (Incl. 34,35,36) PLN-534450400
...
53
Operator Manual Not Shown. PLN-534883631
...
...
...
