Poulan Paramount PB165 Electric Blower

Model: PB165 Electric Blower

Save
Part Not Listed?Part Not Listed?
product name

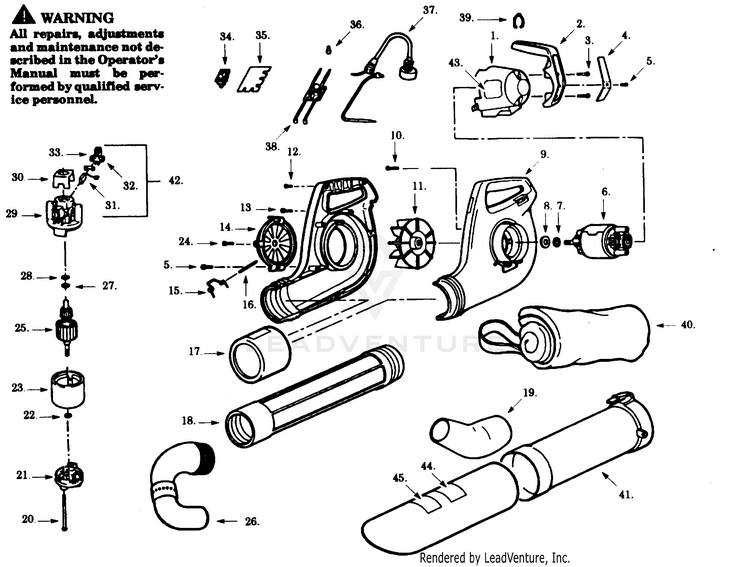

BLOWER ASSEMBLY

...
...
1
Motor Cover PLN-534319602

...





...
7
Retaining Ring PLN-534994500

...

...
9
L.H/R.H. Housing PLN-534491722

...

...
11
Impeller Ass'y. PLN-534398315

...

...

...
14
Inlet Cover PLN-534498205

...
15

...
16
Hinge Pin PLN-534327201

...
17
Ferrule Sleeve PLN-534408415

...
18
Outlet Tube PLN-534352705

...
19
Curved Nozzle PLN-534373405

...

...
21
Endbell Ass'y. (Drive) PLN-534207101

...
22

...
23
Field Ass'y. PLN-534227001

...

...
25
Armature Ass'y. PLN-534992401

...
26
Nozzle Ass'y. PLN-534380700

...
27

...
28

...
29
Endbell Ass'y. (Brush) PLN-534227501

...
30
Insulator PLN-534226000

...

...
32
Brush Spring PLN-534228000

...
33
Brush Holder PLN-534227700

...
34
On-Off Switch Ass'y. PLN-534447903

...
35
Mounting Board PLN-534334800

...
36

...
37
Power Cord Ass'y. PLN-534434001

...
38
P.C. Board Ass'y. PLN-534345405

...
39

...
40
Vacuum Bag PLN-534339900

...
41
Vacuum Tube PLN-534528705

...
42
Brush Kit (Incl. 31,32,33) PLN-534450400

...
43
Motor Cover Label (Not a serviceable part) PLN-534875600

...
44
Name Plate Label PLN-534100461

...
45
Warning Label PLN-534803400

...
46
Operator Manual Not Shown. PLN-534886570

...
47
Gutter Attachment Manual (Not a serviceable part) Not Shown. PLN-534875707

...
48
Carton (Not a serviceable part) Not Shown. PLN-534875707

...
49
Goggles Not Shown. PLN-952062003
...
...
...
