Poulan Paramount HT1750 Electric Hedgetrimmer

Model: HT1750 Electric Hedgetrimmer

Save
 Part Not Listed?Part Not Listed?
product name

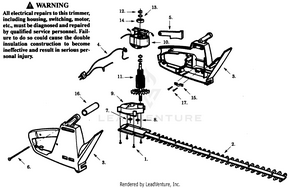

HEDGE TRIMMER

...
...
1
Screw PLN-534101640
...
2
Blade Ass'y. - HT1450 PLN-530036312
...
xx
Blade Ass'y. - HT1750 PLN-530036313
...
xx
Blade Ass'y. - HT1950 PLN-530036316
...
xx
Blade Ass'y. - HT2250 PLN-530036317
...
3
Housing Set PLN-534014568
...
4
Switch/Plug Ass'y. PLN-534101360
...
5
Trigger Switch PLN-534101380
...
6
Screw PLN-534184700
...
7
Washer PLN-530015965
...
8
Drive Washer PLN-534812100
...
9
Gear Box Ass'y. (Inc. Gear Assy) PLN-530014503
...
10
Field Ass'y. PLN-534100680
...
11
Armature Ass'y. PLN-530036407
...
12
Retaining Ring PLN-530036314
...
13
Washer PLN-534228804
...
14
Bearing PLN-534101130
...
15
Clamp PLN-534101120
...
16
Cushon Handle PLN-534101430
...
17
Screw PLN-530015533
...
xx
Operator Manual Not Shown. PLN-534068496
...
xx
Warning Decal Not Shown. PLN-534036635
...
xx
Carton for model:, HT1450 & HT1750 (Not a serviceable part) Not Shown. PLN-534061522
...
xx
Carton for model:, HT1950 & HT2250 (Not a serviceable part) Not Shown. PLN-534061524
...
...
...
