Poulan Paramount GB151C Gas Blower

Model: GB151C Gas Blower

Save
Part Not Listed?Part Not Listed?
product name

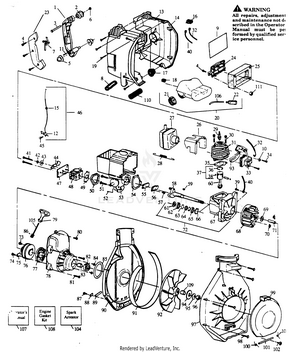

BLOWER ASSEMBLY

...
...

...
2
Front Isolator PLN-530026994

...


...
5
Rear Isolator PLN-530029130


...
7

...

...
9
Instruction Decal PLN-530029991

...
10


...
12
Cable Assembly PLN-530037492

...
13
Shroud-Left PLN-534100570

...
14
Shroud-Right PLN-534100560

...
15

...
16

...
17

...
18

...

...
20
Fuel Tank Ass'y. (Inc. 21,22,106) PLN-530014162

...
21
Assy-Fuel Cap PLN-530014347

...
22
Assy-Fuel Pickup PLN-530095646

...
23
Handle Cover PLN-534100550

...

...
25
Air Filter PLN-530029112

...
26
Air Baffle PLN-530029404

...
27

...
28

...
29
Spark Plug (CJ-8Y) PLN-530030073

...

...
31

...
32
Lead Wire PLN-530029145

...
33
Ignition Module PLN-530039137

...

...
35
GASKET CYL W/ ADHESIVE PLN-530019267

...
36
Piston Ring PLN-530026413

...
37
Piston Kit (Incl. #36,38, Pin) PLN-530069274

...
38

...

...
40
Ground Wire PLN-530029144

...

...
42
Wave Washer PLN-530015254

...
43
Spacer-Choke PLN-530015852

...
44
Choke Shutter PLN-530029114

...

...
46
Cable Assembly PLN-530037492

...

...
48
KIT CARBURETOR ASSY PLN-545081825

...
49


...

...
52
Ground Wire PLN-530029113

...
53
Reed Block/Heat Shield PLN-530047696

...
54

...
55
Reed Valve PLN-530027593

...
56
Reed Stop PLN-530027594

...

...
58
Crankshaft PLN-530014033


...
60
Piston Rod PLN-530014005

...
61

...
62
Inner Bearing PLN-530032103

...
63
Retaining Ring PLN-530015787

...
64
Crankshaft Seal PLN-530019158

...
65
Outer Bearing PLN-530032102

...
66
Retaining Ring PLN-530015789

...
67
Crankcase PLN-530014016

...
68
Flywheel Ass'y PLN-530039189

...
69

...
70

...
71

...
72
Crankcase/Crankshaft Assy. PLN-530014156

...

...

...
75

...
76
Kit-Starter Pulley (Incl.73) PLN-530071387

...
77
STARTER SPRING PLN-545008010

...
78
Fan Housing Kit PLN-530069714

...
79
Starter Handle PLN-530027569

...

...

...
82
Fan Housing PLN-530054114

...
83

...

...
85

...
86

...

...
88

...
89

...
90
Blower Housing (Upper) PLN-530094710


...
92
ASSY-IMPELLER PLN-530047077

...
93

...
94

...
95


...
97
Blower Housing (Lower) (Incl. 99-103) PLN-530047736

...
98
Screw-Line Limiter PLN-530015814

...
99
Blower Housing (Lower) PLN-530047736

...
100


...
102

...
103

...
104
Spark Arrestor Kit PLN-530069285

...
105

...
106

...
107
Operators Manual PLN-534068201

...
108
Gasket Kit PLN-530069294

...
109
ASSY-IMPELLER PLN-530047077

...
110
Foam Grip PLN-534101900


...
xx
Carton (Not a serviceable part) Not Shown. PLN-534061445

CARBURETOR BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701

...
2
Metering Diaphragm Gasket PLN-530035151

...
3
Metering Lever Pin Screw PLN-530035016

...
4
Mixture Needle PLN-530035268

...
5
Needle Spring-Low Speed PLN-530035293

...
8
PUMP DIAPHRAGM PLN-504130807

...

...
10
Idle Speed Screw PLN-530035203

...
11


...
13
Metering Lever PLN-505520127

...
14
Metering Lever Spring PLN-530035188

...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001

...
16
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178

...
17
Carb. Kwik Repair Kit PLN-530035264

...
18
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

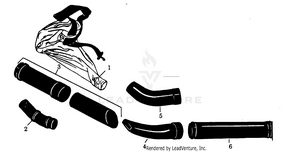

VACUUM TUBE / BLOWER TUBE ASSEMBLY

...
...
1
Collection Bag W/Strap PLN-534036223

...
2
Collection Bag Elbow Tube PLN-530095117

...
3
Vacuum Tube PLN-530069270

...
4
Blower Nozzle--Flare PLN-530094662

...
5
Tube & Nozzle Kit PLN-530069961

...
6
BLOWER TUBE KIT PLN-530069684
...
...
...
