product name

Poulan Paramount GB151 Gas Blower

Model: GB151 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

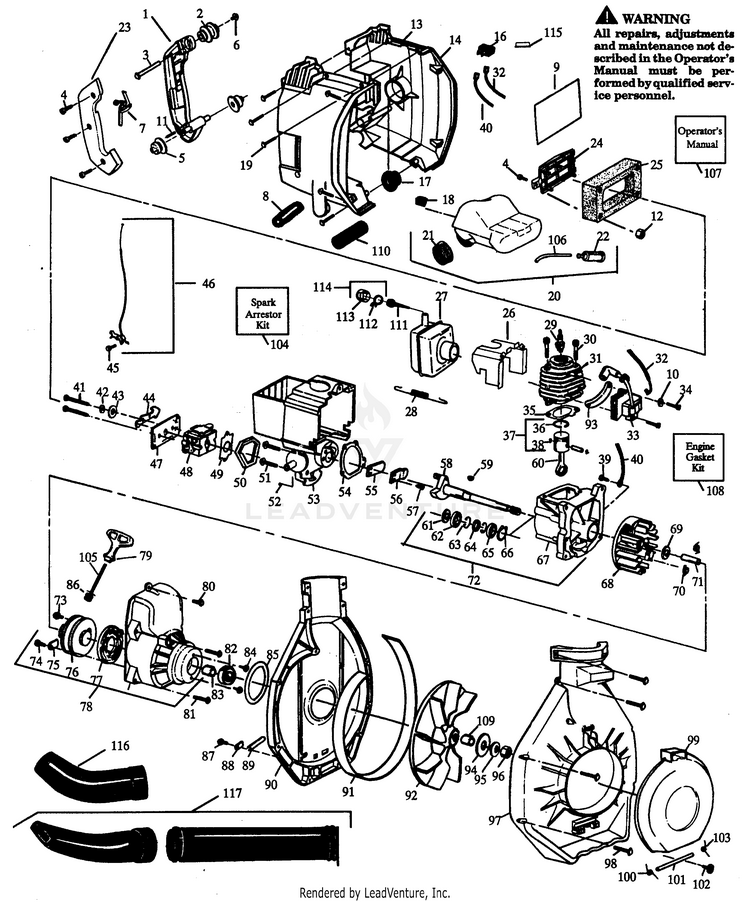

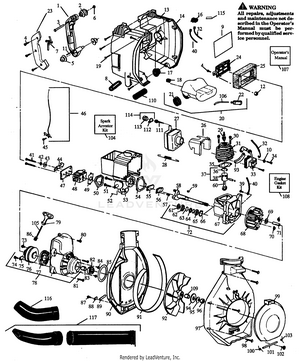

BLOWER ASSEMBLY

...
...
1
Handle PLN-534100540
...
2
Front Isolator PLN-530026994
...
3
Spacer PLN-530029111
...
4
Screw PLN-530015635
...
5
Rear Isolator PLN-530029130
...
6
Screw PLN-530015813
...
7
Trigger PLN-534100530
...
8
HANDLE PLN-530037595
...
9
Instruction Decal PLN-530029991
...
10
Washer PLN-530015811
...
11
Pin PLN-530015840
...
12
Nut PLN-530001543
...
14
Shroud-Right PLN-534100560
...
16
Kit-Switch PLN-530069572
...
17
Isolator PLN-530029129
...
18
Isolator PLN-530029295
...
19
Screw PLN-530015814
...
20
Fuel Tank Ass'y. (Incl. #21, 22 & 106) PLN-530014162
...
21
Fuel Cap (w/ retainer) PLN-530014347
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Handle Cover PLN-534100550
...
24
Cover PLN-530029989
...
25
Air Filter PLN-530029112
...
26
Air Baffle PLN-530029404
...
27
Muffler PLN-530069293
...
28
Spring PLN-530029116
...
29
Spark Plug PLN-503235112
...
30
Screw PLN-530015239
...
31
CYLINDER PLN-530012349
...
32
Lead Wire PLN-530029145
...
33
Ignition Module PLN-530039137
...
34
Screw PLN-530015776
...
35
GASKET CYL W/ ADHESIVE PLN-530019267
...
36
Piston Ring PLN-530026413
...
37
Piston Kit (Incl. #36,38, & Pin) PLN-530069274
...
38
Retainer PLN-530015162
...
39
Screw PLN-530015306
...
40
Ground Wire PLN-530029144
...
41
Screw PLN-530015849
...
42
Wave Washer PLN-530015254
...
43
Spacer PLN-530015852
...
44
Choke Shutter PLN-530029114
...
45
Screw PLN-530015775
...
46
Cable Assembly (Incl. #45) PLN-530037492
...
47
Plate PLN-530029115
...
48
KIT CARBURETOR ASSY PLN-545081825
...
48
KIT CARBURETOR ASSY PLN-545081825
...
49
Gasket PLN-530019164
...
50
Seal PLN-530019165
...
51
Screw PLN-530015771
...
52
Ground Wire PLN-530029113
...
53
Reed Block/Heat Shield PLN-530047696
...
54
Gasket PLN-530019166
...
55
Reed Valve PLN-530027593
...
56
Reed Stop PLN-530027594
...
57
SCREW 6-19X.437 PLN-545227101
...
58
Crankshaft-See Service Ref. 3 PLN-530014033
...
59
Key PLN-530015126
...
60
Piston Rod PLN-530014005
...
62
Inner Bearing PLN-530032103
...
63
Retaining Ring PLN-530015787
...
64
Crankshaft Seal PLN-530019158
...
65
Outer Bearing PLN-530032102
...
66
Retaining Ring PLN-530015789
...
67
Crankcase PLN-530014016
...
68
Flywheel Ass'y PLN-530039189
...
69
Washer PLN-530016030
...
70
Spring PLN-530023817
...
71
Spacer PLN-530029176
...
72
Crankcase/CrankshaftAssy. PLN-530014156
...
73
Screw PLN-530016068
...
74
Screw PLN-530015496
...
75
Retainer PLN-530027523
...
77
STARTER SPRING PLN-545008010
...
78
Fan Housing Kit (Incl. 73-79,86,105) PLN-530069714
...
79
Starter Handle PLN-530027569
...
80
Screw PLN-530015775
...
81
Screw PLN-530015769
...
82
Fan Housing PLN-530054114
...
83
Spacer PLN-530029110
...
84
Screw PLN-530015805
...
85
"O" Ring PLN-530019167
...
86
Eyelet PLN-530029182
...
87
Screw PLN-530015815
...
88
Retainer PLN-530027523
...
89
Roll Pin PLN-530029119
...
90
Blower Housing (Upper) PLN-530094710
...
91
Band PLN-530029173
...
92
ASSY-IMPELLER PLN-530047077
...
93
Spacer PLN-530027525
...
94
Washer PLN-530015818
...
95
Washer PLN-530015441
...
96
Nut PLN-530001733
...
97
Blower Housing (Lower) (Incl. 99-103) PLN-530047736
...
98
Screw-Line Limiter PLN-530015814
...
99
Blower Housing (Lower) PLN-530047736
...
100
Spring PLN-530015667
...
101
Pin PLN-530015647
...
102
Screw PLN-530015815
...
103
Spring PLN-530015672
...
104
T1 PLN-530069285
...
104
T2 & 3 PLN-530069348
...
105
Rope Kit PLN-530069232
...
106
Line Kit PLN-530069247
...
107
Operators Manual - Type 3 PLN-530083099
...
108
Gasket Kit PLN-530069294
...
109
ASSY-IMPELLER PLN-530047077
...
110
Foam Grip PLN-534101900
...
111
Spark Arrestor Screen PLN-530029227
...
112
Spark Arrestor Clamp PLN-530029228
...
113
Exhaust Deflector Ass'y. PLN-530029988
...
114
Deflector & Clamp Ass'y. PLN-530014339
...
115
Switch Cover-See Service Ref.2 PLN-530037071
...
116
Tube & Nozzle Kit PLN-530069961
...
117
Tube and Nozzle Ass'y PLN-530038508
...
xx
Type 2 (Not a serviceable part) Not Shown. PLN-530029990
...
xx
Type 3 Decal (Not a serviceable part) Not Shown. PLN-530038630
...
xx
Hex Wrench (5/32) Not Shown. PLN-530031159

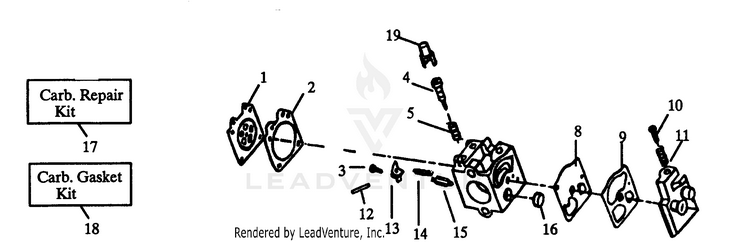

CARBURETORS WT-141 FOT TYPE 1, WT-141A FOR TYPE 2

...
...
1
DIAPHRAGM PLN-503896701
...
2
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035151
...
2
WT-141A - T2 PLN-530035378
...
3
Metering Lever Pin Screw PLN-530035016
...
4
WT-141 - T1 PLN-530035268
...
4
WT-141A - T2 PLN-530035375
...
5
Needle Spring-Low Speed PLN-530035293
...
5
WT-141A - T2 PLN-530035376
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
14
WT-141A - T2 PLN-530035377
...
15
Needle PLN-503117001
...
16
Fuel Inlet Screen PLN-530035178
...
17
Carb. Kwik Repair Kit PLN-530035264
...
18
Gasket Diaphragm Kit PLN-530069844
...
19
Limiter Cap (Gold) PLN-530038403

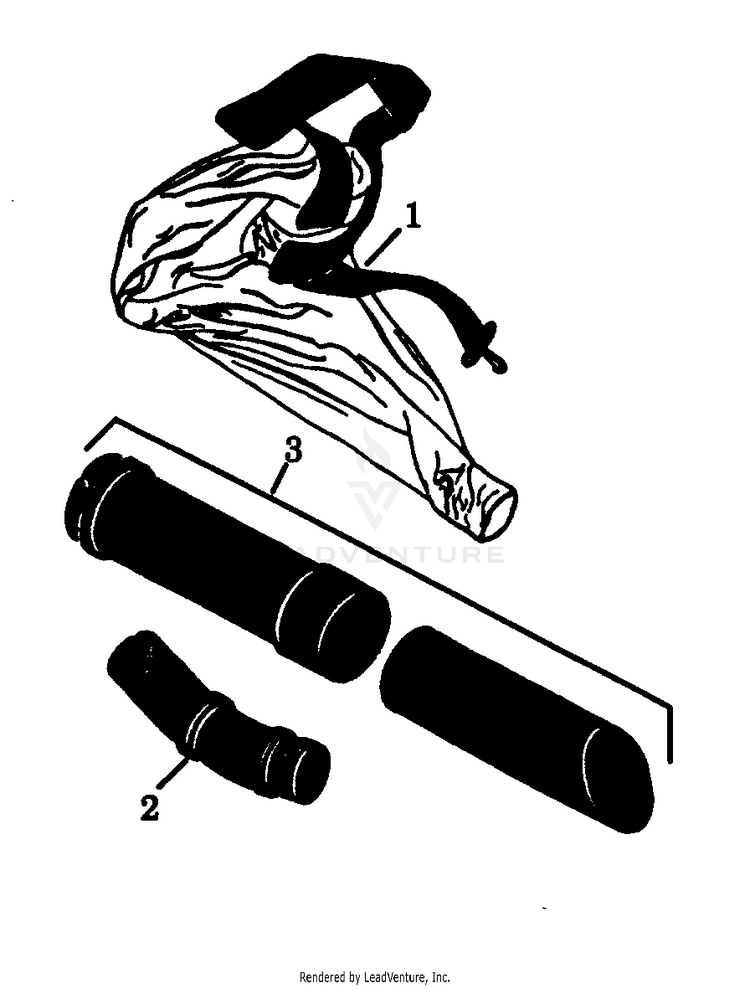

VACUUM ATTACHMENT PARTS

...
...
0
Optional Attachment Kit PLN-952710543
...
1
Collection Bag W/Strap PLN-530069272
...
2
Collection Bag Elbow Tube PLN-530095117
...
3
Vacuum Tubes PLN-530069270
...
...
...
