Poulan Paramount CT91C-00 Cordless Trimmer

Model: CT91C-00 Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

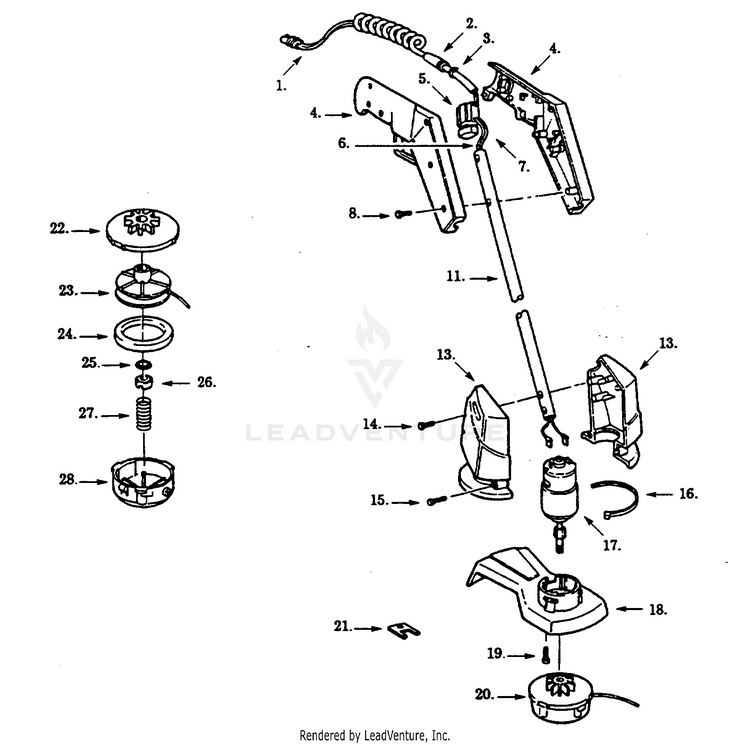

TRIMMER ASSEMBLY

...
...
1
Coiled Cord PLN-534898300
...
2
Rubber Strain Relief PLN-534459100
...
3
Strain Relief PLN-534356003
...
4
Handle Set PLN-534356782
...
5
Trigger Switch PLN-534193001
...
6
Lead Wire (Black) PLN-534896601
...
7
Lead Wire (Red) PLN-534896701
...
8
Screw PLN-534826801
...
11
Tube PLN-534897000
...
13
Housing Set PLN-534194042
...
14
Screw PLN-534826800
...
15
Screw PLN-534790301
...
16
Tie Wrap PLN-534134702
...
17
Motor/Adapter Ass'y. PLN-534896401
...
18
Guard/Blade Ass'y. PLN-534896201
...
19
Screw PLN-534183400
...
20
Head Ass'y. PLN-534966501
...
21
Spanner Wrench PLN-534166800
...
22
Rear Plate PLN-534167235
...
23
Spool & Line PLN-534167805
...
24
Foam Pad PLN-534167700
...
25
O-Ring PLN-534316200
...
26
Adapter Nut PLN-534166700
...
27
Spring PLN-534819200
...
28
Hub Ass'y. PLN-534167935
...
...
...
