product name

Poulan Paramount CT90-00 Cordless Trimmer

Model: CT90-00 Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

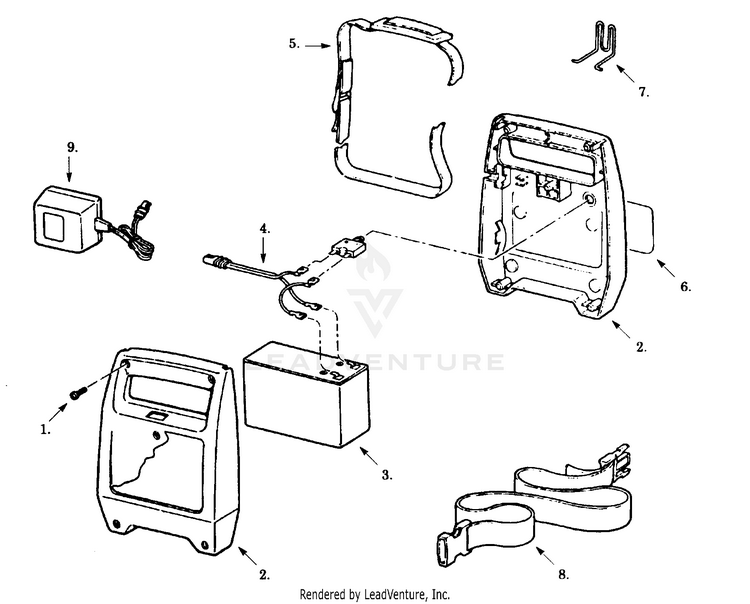

BATTERY POWER PAC KIT

...
...
0
Battery Power Pac Kit PLN-534500012
...
1
Screw PLN-534899900
...
2
Housing Set PLN-534897805
...
3
Battery PLN-534876000
...
4
Harness Ass'y. (w/ Circuit Breaker) PLN-534946201
...
5
Shoulder Strap PLN-534898901
...
6
Warning Decal PLN-534883800
...
7
Belt Hook PLN-534900100
...
8
Waist Belt PLN-534913101
...
9
Battery Charger PLN-534876100
...
xx
Operator Manual Not Shown. PLN-534886591
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534903601

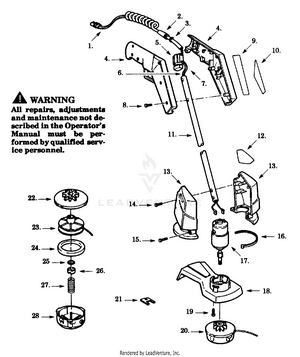

TRIMMER ASSEMBLY

...
...
1
Coiled Cord PLN-534898300
...
2
Rubber Strain Relief PLN-534459100
...
3
Strain Relief PLN-534356003
...
4
Handle Set PLN-534356782
...
5
Trigger Switch PLN-534193001
...
6
Lead Wire (Black) PLN-534896601
...
7
Lead Wire (Red) PLN-534896701
...
8
Screw PLN-534826801
...
9
Handle Label PLN-534897500
...
10
Warning Label PLN-534897400
...
11
Tube PLN-534897000
...
12
Top Hsg. Label PLN-534897300
...
13
Housing Set PLN-534194042
...
14
Screw PLN-534826800
...
15
Screw PLN-534790301
...
16
Tie Wrap PLN-534134702
...
17
Motor/Adapter Ass'y. PLN-534896401
...
18
Guard/Blade Ass'y. PLN-534896201
...
19
Screw PLN-534183400
...
20
Head Ass'y. PLN-534966501
...
21
Spanner Wrench PLN-534166800
...
22
Rear Plate PLN-534167235
...
23
Spool & Line PLN-534167805
...
24
Foam Pad PLN-534167700
...
25
O-Ring PLN-534316200
...
26
Adapter Nut PLN-534166700
...
27
Spring PLN-534819200
...
28
Hub Ass'y. PLN-534167935
...
xx
Operator Manual Not Shown. PLN-534886320
...
...
...
