Poulan Paramount 990-00 Electric Edger

Model: 990-00 Electric Edger

Save
 Part Not Listed?Part Not Listed?
product name

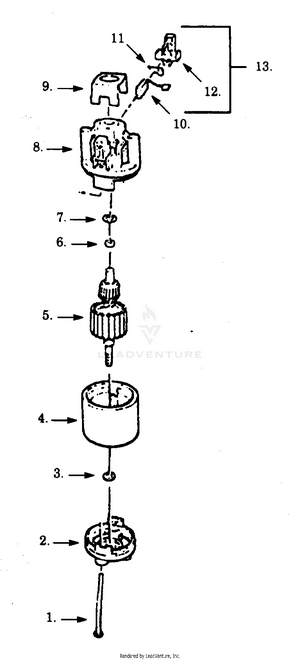

BRUSH ASSEMBLY

...
...
1
Screw PLN-534228704
...
2
Endbell Ass'y. (Drive) PLN-534207101
...
3
Washer PLN-534228800
...
4
Field Ass'y. PLN-534227005
...
5
Armature Ass'y. PLN-534225115
...
6
Washer PLN-534228802
...
7
Washer PLN-534238903
...
8
Endbell Ass'y. (Brush) PLN-534227501
...
9
Insulator PLN-534226000
...
10
Carbon Brush PLN-534227800
...
11
Brush Spring PLN-534228000
...
12
Brush Holder PLN-534227700
...
13
Brush Kit (Inc. 10,11,12) PLN-534450400

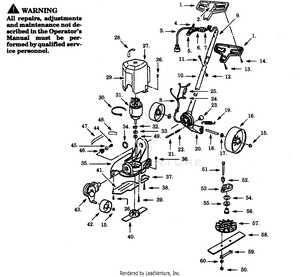

EDGER ASSEMBLY

...
...
1
Handle Set PLN-534234225
...
2
Handle Label (Not a serviceable part) PLN-534832400
...
3
Power Cord PLN-534234500
...
4
Wire Nut PLN-534253201
...
5
Switch PLN-534193004
...
6
P.C. Board Ass'y. PLN-534336501
...
7
Insulator PLN-534337101
...
8
Harness Ass'y. PLN-534337000
...
9
Upper Tube PLN-534838000
...
10
Lower Tube PLN-534838100
...
11
Screw PLN-534829600
...
12
Locknut PLN-534828300
...
13
Screw PLN-534222400
...
14
Screw PLN-534184700
...
15
Push Nut PLN-534121000
...
16
Rear Wheel PLN-534236800
...
17
Washer PLN-534137900
...
18
Rear Axle PLN-534137701
...
19
Spring PLN-534121300
...
20
Rear Swivel PLN-534137505
...
21
Swivel Lock Shaft PLN-534700002
...
22
Swivel Lock Spring PLN-534710000
...
23
Knob PLN-534720001
...
24
Terminal Cap PLN-534561000
...
25
Resister PLN-534134500
...
26
Screw PLN-534826800
...
27
Motor Cover PLN-534824902
...
28
Rear Adjust Label (Not a serviceable part) PLN-534838800
...
29
Motor Cover Label (Not a serviceable part) PLN-534832200
...
30
Tie Wrap PLN-534134700
...
31
Motor Ass'y. PLN-534225015
...
32
Retaining Ring PLN-534747011
...
33
Washer PLN-534136100
...
34
Retaining Ring PLN-534780000
...
35
Deck Frame PLN-534130505
...
36
Locknut PLN-534315300
...
37
Blade Guide PLN-534830000
...
38
Screw PLN-534315200
...
39
Screw PLN-534136401
...
40
Blade Ass'y. PLN-534135205
...
41
Side Guard Plate PLN-534131515
...
42
Front Wheel PLN-534240003
...
43
Front Swivel Ass'y. PLN-534130705
...
44
Screw PLN-534779000
...
45
Washer PLN-534778000
...
46
Front Swivel Spring PLN-534120500
...
47
Dyn Brake Label (Not a serviceable part) PLN-534838500
...
48
Warning Label (Not a serviceable part) PLN-534838700
...
49
Washer PLN-534757900
...
50
Locknut PLN-534136200
...
51
Screw PLN-534135901
...
52
Insulating Sleeve PLN-534135605
...
53
Clutch Plate PLN-534135400
...
54
Washer PLN-534136300
...
55
Spring Washer PLN-534238900
...
56
Clutch Sleeve PLN-534135500
...
57
Fan PLN-534135305
...
58
Blade PLN-534205300
...
59
Lock Strap PLN-534135700
...
60
Lockwasher PLN-534136600
...
xx
Operator Manual Not Shown. PLN-534886230
...
...
...
