Poulan Paramount 975-00 Electric Edger

Model: 975-00 Electric Edger

Save
 Part Not Listed?Part Not Listed?
product name

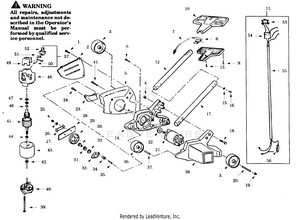

EDGER/BRUSHCUTTER ASSEMBLY

...
...
1
Screw PLN-534193800
...
2
Side Guard PLN-534323405
...
3
Wheel PLN-534240003
...
4
Nut PLN-530403094
...
5
Guard Housing PLN-534346702
...
6
Screw PLN-534136401
...
7
Power Cord PLN-534234500
...
8
Trigger Switch PLN-534193004
...
9
Screw PLN-534184700
...
10
Handle Set PLN-534234245
...
11
Harness Ass'y. PLN-534336403
...
12
Upper Handle Tube PLN-534222503
...
13
Screw PLN-534222400
...
14
Frame PLN-534323202
...
15
Lockwasher PLN-534713000
...
16
Screw PLN-534970001
...
17
Lower Handle Tube PLN-534223200
...
18
Screw PLN-534174501
...
19
Push Nut PLN-534121000
...
20
Axle PLN-534781011
...
21
Motor PLN-534225022
...
22
Thrust Washer PLN-534136100
...
23
Edge Guide PLN-534323500
...
24
Screw PLN-534222403
...
25
Nut PLN-534136200
...
26
Lockwasher PLN-534136600
...
27
Lock Strap PLN-534135700
...
28
Blade PLN-952710529
...
29
Fan PLN-534135305
...
30
Clutch Sleeve PLN-534135500
...
31
Load Spring Washer PLN-534238900
...
32
Washer PLN-534136300
...
33
Clutch Plate PLN-534135400
...
34
Sleeve PLN-534135605
...
35
Bolt PLN-534135900
...
36
Wheel PLN-534730001
...
37
Axle PLN-534740002
...
38
Motor Cover PLN-534323302
...
39
Bolt PLN-534228700
...
40
Endbell (Output) PLN-534207101
...
41
Screw PLN-534222401
...
42
Washer PLN-534238903
...
43
Field Ass'y. PLN-534227001
...
44
Retainer Ring PLN-534246700
...
45
Armature PLN-534225120
...
46
Retainer Ring PLN-534747002
...
47
Washer PLN-534228800
...
48
Endbell (Brush) PLN-534227501
...
49
Insulator PLN-534226000
...
50
Brush PLN-534227800
...
51
Brush Spring PLN-534228000
...
52
Brush Holder PLN-534227700
...
53
Power Switch PLN-534332500
...
54
P.C. Bridge Kit PLN-534402800
...
55
Harness PLN-534336403
...
56
Resistor PLN-534134500
...
57
Brush Kit (Incl. 50,51,52) Not Shown. PLN-534450400
...
58
Operator Manual Not Shown. PLN-534883580
...
...
...
