Poulan Paramount 5900 Electric Blower

Model: 5900 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

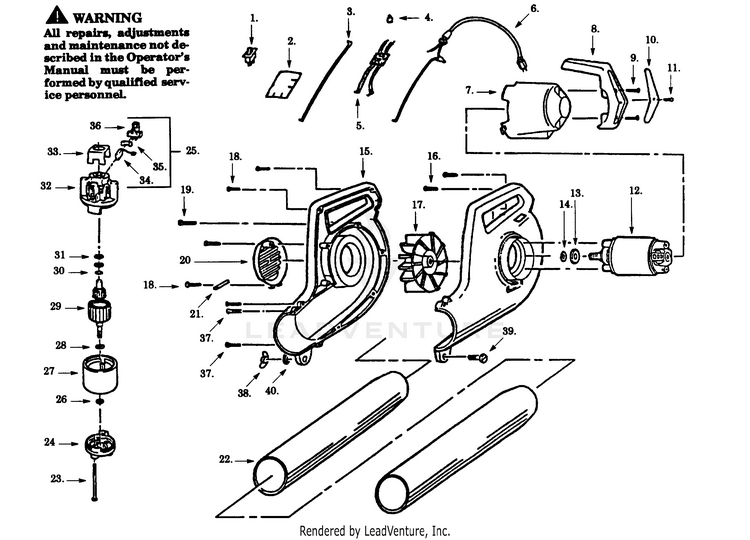

BLOWER ASSEMBLY

...
...
1
On-Off Switch PLN-534158303
...
2
Mounting Board PLN-534334800
...
3
Lead Wire Ass'y. PLN-534332201
...
4
Connector PLN-534561000
...
5
P.C. Board Ass'y. PLN-534345400
...
6
Power Cord Ass'y. PLN-534332101
...
7
Motor Cover PLN-534319602
...
8
Handle PLN-534319702
...
9
Screw PLN-534136402
...
10
Warning Plate PLN-534346022
...
11
Screw PLN-534193700
...
12
Motor PLN-534225010
...
13
Washer PLN-534136100
...
14
Retainer Ring PLN-534747002
...
15
R.H./L.H. Housing PLN-534334721
...
16
Screw PLN-534136401
...
17
Impeller PLN-534398315
...
18
Screw PLN-534184700
...
19
Screw PLN-534222400
...
20
Inlet Cover PLN-534319802
...
21
Hinge Pin PLN-534327200
...
22
Outlet Tube PLN-534352705
...
23
Screw PLN-534228700
...
24
Endbell Output PLN-534207101
...
25
Brush Kit (Inc. 34,35,36) PLN-534450400
...
26
Washer PLN-534238903
...
27
Field Ass'y. PLN-534227001
...
28
Retainer Ring PLN-534246700
...
29
Armature PLN-534225110
...
30
Retainer Ring PLN-534747002
...
31
Washer PLN-534228800
...
32
Endbell (Brush) PLN-534227501
...
33
Insulator PLN-534226000
...
34
Brush PLN-534227800
...
35
Brush Spring PLN-534228000
...
36
Brush Holder PLN-534227700
...
37
SCREW PLN-534222402
...
38
Wing Nut PLN-534352300
...
39
Screw PLN-534352400
...
40
Washer PLN-534356900
...
41
Operator Manual Not Shown. PLN-534883110
...
...
...
