Poulan Paramount 5602 Cordless Trimmer

Model: 5602 Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

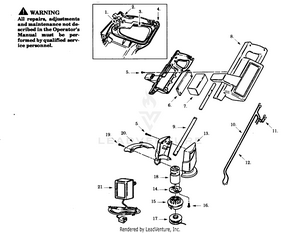

TRIMMER ASSEMBLY

...
...
1
Switch PLN-534169300
...
2
Release Button PLN-534162800
...
3
Trigger PLN-534158200
...
4
Receptacle Ass'y. PLN-534158500
...
5
Screw PLN-534256700
...
6
Foam Pad PLN-534157500
...
7
Battery PLN-534158400
...
8
Upper Hsg. Set PLN-534158106
...
9
Handle Tube PLN-534163800
...
10
Lead Wire (Red) PLN-534164000
...
11
Lead Wire (Black) PLN-534168900
...
12
Lead Wire (White) PLN-534163900
...
13
Motor Hsg. Set PLN-534194046
...
14
Motor Adapter PLN-534162900
...
15
Rotating Head PLN-534264925
...
16
Screw PLN-534183400
...
17
Spool & Line PLN-534264805
...
18
Motor PLN-534168000
...
19
Screw PLN-534222400
...
20
Foot Guard PLN-534261906
...
21
Battery Charger PLN-534168101
...
22
Operator Manual Not Shown. PLN-534881950
...
...
...
