Poulan Paramount 2201 Electric Trimmer

Model: 2201 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

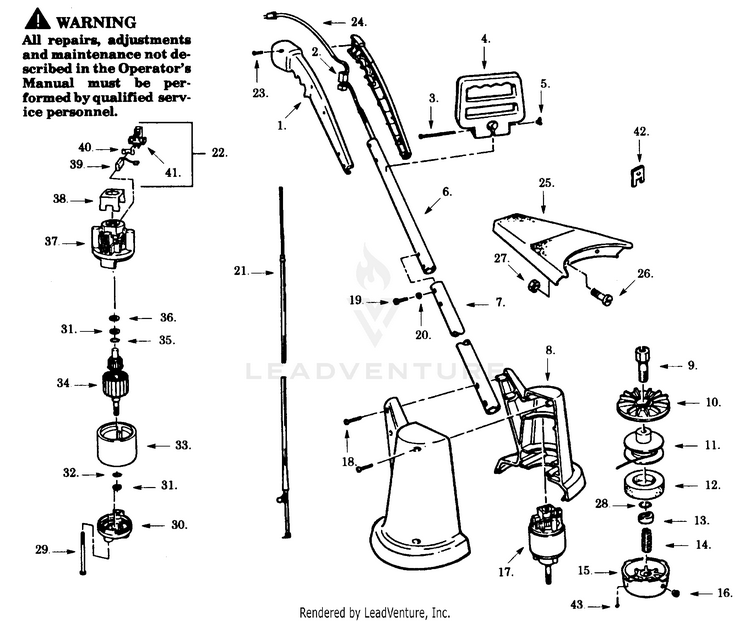

TRIMMER ASSEMBLY

...
...
1
R.H./L.H. Handle PLN-534192445
...
2
Trigger Switch PLN-534193001
...
3
Bolt PLN-534218100
...
4
Side Handle PLN-534282705
...
5
Wing Nut PLN-534437000
...
6
Upper Handle Tube PLN-534222500
...
7
Lower Handle Tube PLN-534223200
...
8
R.H./L.H. Housing PLN-534288001
...
9
Drive Adapter Sleeve PLN-534223325
...
10
Rear Plate PLN-534157305
...
11
Spool & Line PLN-534159705
...
12
Foam Pad PLN-534158600
...
13
Drive Adapter Nut PLN-534156205
...
14
Spring PLN-534157401
...
15
Hub PLN-534159805
...
16
Eyelet PLN-534157600
...
17
Motor PLN-534225001
...
18
Screw PLN-534222400
...
19
Screw PLN-534970001
...
20
Lockwasher PLN-534713000
...
21
Harness PLN-534162400
...
22
Brush Kit (Incl. 39-41) PLN-534450400
...
23
Screw PLN-534193800
...
24
Power Cord PLN-534234500
...
25
Tail Guard PLN-534282405
...
26
Screw PLN-534136503
...
27
Lock Nut PLN-534137002
...
28
O-Ring PLN-534316201
...
29
Screw PLN-534228700
...
30
Endbell Output PLN-534207101
...
31
Washer PLN-534228800
...
32
Retainer Ring PLN-534747002
...
33
Field Ass'y. PLN-534227001
...
34
Armature PLN-534225101
...
35
Retainer Ring PLN-534246700
...
36
Washer PLN-534238903
...
37
Endbell (Brush) PLN-534227501
...
38
Insulator PLN-534226000
...
39
Brush PLN-534227800
...
40
Brush Spring PLN-534228000
...
41
Brush Holder PLN-534227700
...
42
Spanner Wrench PLN-534169900
...
43
Cotter Pin PLN-534270300
...
44
Operator Manual Not Shown. PLN-534882990
...
...
...
