Poulan PT3000 Gas Trimmer

Model: PT3000 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

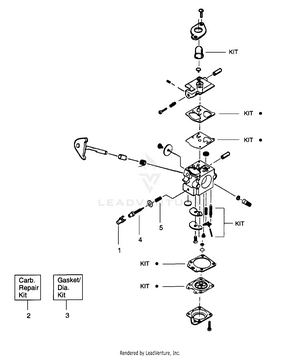

Carburetor Assembly WA230

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069842
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
4
Needle - Idle PLN-530035477
...
5
Spring - Idle Needle PLN-530035293

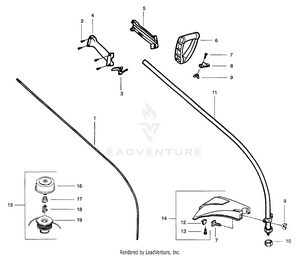

Cutting Head & Driveshaft

...
...
1
Drive Shaft PLN-530053428
...
2
Screw-Throttle Hsg. PLN-530016179
...
3
Trigger PLN-530049107
...
4
Throttle Hsg. (Right) PLN-530053029
...
5
Throttle Hsg. (Left) PLN-530053019
...
6
Handle Ass'y. PLN-530014222
...
7
Bolt - Handle/Shield PLN-530015820
...
8
Clamp - Assist Handle PLN-530094847
...
9
Nut PLN-530091373
...
10
Dust Cup PLN-530094543
...
11
Drive Shaft Hsg. Ass'y. PLN-530053429
...
12
Line Limiter PLN-530052286
...
13
Screw-Line Limiter PLN-530015814
...
14
Shield Kit Ass'y. (Incl. 12 & 13) PLN-530069930
...
15
Cutting Head Ass'y. (Incl. 16-19) PLN-952701705
...
16
Hub Ass'y. PLN-530095773
...
17
Spring - Return PLN-530053241
...
18
Retainer - Spool PLN-530401957
...
19
Spool w/Line PLN-952701706
...
xx
Operator's Manual Not Shown PLN-530087115
...
xx
Shaft Warning Decal Not Shown PLN-530047899
...
xx
Stop Decal (Not a serviceable part) Not Shown PLN-530053600

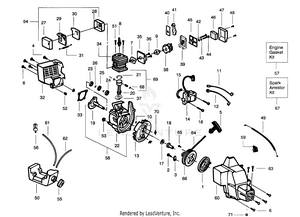

Power Unit

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw - Pulley PLN-530015775
...
3
Retainer - Pulley PLN-530027523
...
4
Screw - Shrd/Fan Hsg. PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket - Cylind./Carb. PLN-530019243
...
8
Spark Plug PLN-503235112
...
9
Gasket - Carb. PLN-530035421
...
10
Retainer Ring - C'case PLN-530015945
...
11
Lead Wire Ass'y. PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530052266
...
15
Spacer - Ignit. Module PLN-530036145
...
16
Screw - Ignit. Module PLN-530015954
...
17
Washer - Flat PLN-530015828
...
18
Drive Coupling PLN-530027953
...
19
Crankshaft Ass'y. PLN-530014532
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530053565
...
22
Crankcase Ass'y. (Incl 23-26) PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain. Ring - C'shaft PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle - Exit PLN-530053500
...
30
Muffler Baffle - First PLN-530053499
...
31
Muffler Spring PLN-530016197
...
32
Rear Shroud PLN-530053320
...
33
Gasket - C'case PLN-530019181
...
34
Cylinder PLN-530053445
...
35
Carb. Adapter Kit PLN-530069994
...
36
Screw - Carb Adaptor PLN-530016014
...
37
Gasket - Cylinder PLN-530019223
...
38
Carburetor Ass'y. Kit (Includes Limiter Cap) PLN-530069990
...
39
Air Box PLN-530052431
...
40
Choke Plate PLN-530038747
...
41
Choke Shutter PLN-530038686
...
42
Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015887
...
45
Filter Plate PLN-530036569
...
46
Air Filter Foam PLN-530036575
...
47
Air Filter Cover PLN-530036568
...
48
Screw - Air Box PLN-530015775
...
49
Throttle Cable Ass'y. PLN-530053591
...
50
Assy-Fuel Tank PLN-530049299
...
51
Screw - Cylinder PLN-530015953
...
52
Isolator - Shroud PLN-530036793
...
53
Isolator - Crankcase PLN-530036792
...
54
Muffler Kit PLN-530069989
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Engine Gasket Kit (Incl. 7, 9, 33, 37) PLN-530071253
...
58
C'case & C'shaft Assy. (Incl. 10, 19, 22 - 26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Fan Housing Ass'y PLN-530053603
...
61
Fuel Line - Carb./Purge PLN-530069247
...
62
Fuel Line - Tank/Purge PLN-530069216
...
63
Screw PLN-530015767
...
64
Rope Kit PLN-530069232
...
65
Screw - Rope Retain. PLN-530016080
...
66
STARTER PULLEY KIT (Incl. 65) PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Piston Kit (Incl. 21, 68 & Pin) PLN-530069992
...
70
Starter Dog Spring PLN-530023817
...
71
Locknut PLN-530015768
...
...
...
