Poulan PT17 Gas Trimmer

Model: PT17 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

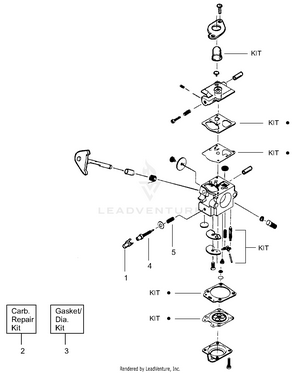

Carburetor Assembly

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069842
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
4
Needle-Idle PLN-530035341
...
5
Spring-Idle Needle PLN-530035342
...
xx
Carburetor Assembly PLN-530069754

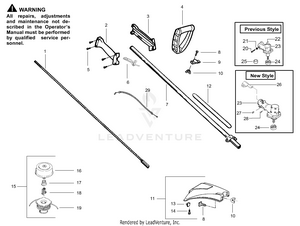

Driveshaft & Cutting Head

...
...
1
Shaft-Flex-52" PLN-530095151
...
2
Hsg. - Throttle (Right) PLN-530053020
...
3
Hsg. - Throttle (Left) PLN-530053019
...
4
Assy-Assist Handle PLN-530055699
...
5
Screw-Throttle Hsg. PLN-530016179
...
6
Trigger NEW PART NUMBER FOR THIS IPL PLN-530038682
...
8
Bolt PLN-530015820
...
9
Clamp-Handle PLN-530094742
...
10
Nut NEW PART NUMBER FOR THIS IPL PLN-530091373
...
11
Kit-Shield Ass'y. PLN-530069779
...
12
Decal-Shaft Warning PLN-530055350
...
13
Line Limiter PLN-530052285
...
14
Screw-Line Limiter PLN-530015805
...
15
Accy-Cutting Head Ass'y. (Incl. 16 - 19) PLN-952711550
...
16
TNG VI HUB ASSY LH PLN-530095772
...
17
Spring-Return PLN-530053241
...
18
Retainer-Spool PLN-530401957
...
19
Spool w/Line PLN-952711551
...
20
Screw-Gear Box PLN-530016140
...
21
Lockwasher-Gear Box PLN-530001642
...
22
Screw-Gear Box/Shield PLN-530016141
...
25
Seal Sleeve PLN-530019235
...
26
Bracket-Shield NEW PART NUMBER FOR THIS IPL PLN-530095812
...
27
Screw NEW PART NUMBER FOR THIS IPL PLN-530016301
...
28
Screw NEW PART NUMBER FOR THIS IPL PLN-530016309
...
29
Assy-Throttle Cable (type 1) NEW PART NUMBER FOR THIS IPL PLN-530071550
...
xx
Operator Manual Not Shown NEW PART NUMBER FOR THIS IPL PLN-530088837
...
xx
Decal-Stop Not Shown NEW PART NUMBER FOR THIS IPL PLN-530055162

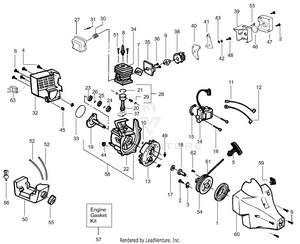

Engine

...
...
1
KIT STARTER SPRING PLN-545008011
...
2
Screw PLN-530015957
...
3
Retainer Can PLN-530016226
...
4
Screw-Shrd/Fan Hsg. PLN-530015880
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket-Cylind./Carb. PLN-530019243
...
8
Spark Plug PLN-503235112
...
9
Gasket-Carb. PLN-530019194
...
10
Retainer Ring-C'shaft PLN-530015941
...
11
Assy-Lead Wire PLN-530049390
...
12
Assy-Ground Wire PLN-530049389
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Module-Ignition NEW PART NUMBER FOR THIS IPL PLN-530055160
...
15
Spacer-Module PLN-530036145
...
16
Screw-Module PLN-530015954
...
17
Washer-Flat PLN-530015828
...
18
Coupling-Coupling PLN-530027953
...
19
Assy-Crankshaft PLN-530054083
...
20
Assy-Connecting Rod PLN-530069615
...
21
Piston Ring PLN-530053565
...
22
Assy-Crankcase (Incl 23 - 26) PLN-530071627
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain. Ring-C'shaft PLN-530015941
...
27
Kit-Muffler NEW PART NUMBER FOR THIS IPL PLN-530071390
...
28
Kit-Piston (Incl. 21, 29 & Pin) PLN-530069987
...
29
Retainer-Piston Pin PLN-530015162
...
30
Kit-Spark Arrestor NEW PART NUMBER FOR THIS IPL PLN-530071391
...
31
Spring-Muffler PLN-530042088
...
32
Shroud-Rear PLN-530053320
...
34
Cylinder PLN-530012416
...
35
Kit-Carb. Adaptor PLN-530069991
...
36
Screw PLN-530016014
...
37
Gasket-Cylinder PLN-530019223
...
38
Kit-Carburetor Ass'y (Incls. Limiter Cap) PLN-530069754
...
39
Air Box PLN-530054450
...
40
Choke Plate Mounting PLN-530047914
...
41
Choke Lever PLN-530047916
...
42
Spacer-Choke PLN-530015852
...
43
Washer PLN-530015254
...
44
Isolator-C'Case PLN-530036792
...
45
Isolator-Shroud PLN-530036793
...
46
Foam-Air Filter PLN-530047932
...
47
Cover-Air Filter PLN-530049095
...
48
Screw PLN-530015849
...
49
Spring-Starter Dog PLN-530023817
...
50
Assy-Fuel Tank (Incl. 55, 56, 70 & 71) PLN-530049299
...
51
Screw-Cylinder PLN-530015953
...
52
Kit-Fuel Line (Incls. Vent Line) PLN-530069599
...
53
Screw PLN-530015557
...
54
STARTER PULLEY KIT (Incl. 62) PLN-530071786
...
55
Assy-Fuel Cap PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Kit-Engine Gasket (Incl. 7, 9, 33, 37) PLN-530071253
...
58
Assy-C'case & C'shaft (Incl. 10, 19, 22 - 26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Assy-Fan Housing NEW PART NUMBER FOR THIS IPL PLN-530054420
...
61
Kit-Rope PLN-530069232
...
62
Screw PLN-530016080
...
63
Guard-Muffler NEW PART NUMBER FOR THIS IPL PLN-530054536
...
...
...
