Poulan PR675Y22 - 96142010700 (2012-03) Walk Behind Mower

Model: PR675Y22 - 96142010700 (2012-03)

Save
 Part Not Listed?Part Not Listed?
product name

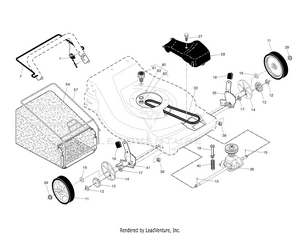

DRIVE

...
...
1
CONTROL.DRIVE.S/SPEED.FWGD PLN-532194653
...
7
BAIL.DRIVE.S/S.ROUND.MARI.21 PLN-532435281
...
11
RP.WHEEL.8X1.75.5SPK.RAD3.BLCK PLN-532430452
...
12
E-RING 7/16 RE PLN-812000058
...
13
PINION.14.TEETH.FGD PLN-532403849
...
14
COVER.DUST.WHEEL.INNER.WALK PLN-581840401
...
15
PAWL, DRIVE PLN-532404845
...
16
WASHER FLUT PLN-532067725
...
17
BEARING.ASM. PLN-532421836
...
18
SELECTOR KNOB PLN-532701037
...
19
SPRING RETAINER PLN-532150495
...
27
SCREW, HEX HD TAPPING #10-24 1 PLN-532175262
...
28
COVER.DRIVE.TORUS.B&S.BLACK PLN-532403342
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
33
KIT.SERVICE.BELT/SPRING. PLN-532157769
...
35
KIT ADJUSTER ASM.438151. . 17 18 PLN-532438485
...
36
TRANSMISSION.22.FGD/W/PULLEY PLN-532415226
...
38
NUT 1/4-20 NYLOC PLN-539976978
...
40
SPRING.EXTENSION PLN-532137090
...
41
KIT ADJUSTER ASM.438148 . 17 18 PLN-532438486
...
54
GBAG.82510010.BLK.GEN.SERVICE PLN-583327401
...
57
FRAME.GBAG.22.EZ.EMPTY.SC PLN-532411952
...
80
KIT.WASH-OUT.PORT . 81 82 83 PLN-532421114
...
81
KIT.WASH-OUT.PORT PLN-532421114
...
82
WASHER.LOCK.INTERNAL.TOOTH PLN-532415585
...
83
LOCKNUT.HEX.WITH.O-RING PLN-532415586

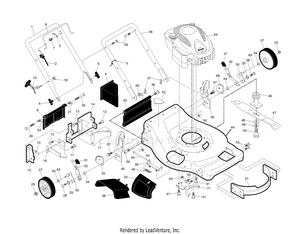

FRAME ENGINE

...
...
1
HANDLE.UP.DSTR.FG/RGD.BLACK PLN-532427738
...
2
CABLE.MZR PLN-532183567
...
3
BRACKET.UPSTOP PLN-532850733
...
4
PLUG.MULCH.22RD PLN-532166649
...
5
WIRE TIE PLN-532007192
...
6
HANDLE.KNOB.BLACK PLN-532185577
...
7
SCREW PLN-532750634
...
8
BAIL.MZR.CURVED.YELLOW PLN-532414806
...
9
DOOR.REAR.22.PLASTIC.EZ.EMPT PLN-532401813
...
10
RIVET BLIND PLN-532128415
...
11
SCREW.HXTAP.10-24 PLN-532150050
...
12
SCREW 14-20 X 5/8 PLN-817060410
...
14
PLATE.BACK.22.RD/VE/STD PLN-532195622
...
15
BAFFLE.SIDE.PNT.BLACK PLN-532410545
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS PLN-532176655
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC PLN-532140661
...
18
NUT 1/4-20 NYLOC PLN-539976978
...
19
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
20
SKIRT.REAR.22RD/SD.FO/VE PLN-532413160
...
21
SPRING.LH.22.REAR.DOOR.EZ.EMPT LH PLN-532405421
...
24
SPRING.RH.22.REAR.DOOR.EZ. RH PLN-532405423
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
26
BOLT PLN-532184193
...
27
WHEEL.8X1.75.CF5SPK.RAD.BLACK PLN-581009401
...
28
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
29
WASHER.CURVED.CYLINDRICAL PLN-532401630
...
30
AXLE ARM ASSY. PLN-532401179
...
31
SELECTOR KNOB PLN-532701037
...
32
SPRING.SELECTOR.5POS.BZP PLN-532401621
...
33
DOOR.MULCH.22.REAR.FWG.BLACK PLN-532196053
...
34
SPACER.HEIGHT.ADJUSTER PLN-532401629
...
35
BRACKET.ADJ.5.IDL.RTAB.ADS RH PLN-532407492
...
36
BRACKET.ASM.HINGE.21.FWGD. PLN-532175735
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
38
DEFLECTOR.CLIPPING.22.FGD.BLAC PLN-532402574
...
39
BRKT.ASM.HANDLE.LT LH PLN-532195916
...
40
BRKT.ASM.HANDLE.RT.BLACK RH PLN-532195917
...
41
BOLT 3/8-16X1-1/8 PLN-532150406
...
42
SPRING.TORSION PLN-532193000
...
43
NUT 1/4-20 NYLOC PLN-539976978
...
44
. 14 15 51 PLN-532430511
...
45
ROD.HINGE.21 PLN-532175650
...
46
ADAPTER.BLADE/PULLEY.25M PLN-532421176
...
47
BLADE.22.MULCH.STANDARD PLN-532406713
...
48
WASHER,HARDEN PLN-532851074
...
49
SLW 3/8 STD PLN-539990118
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
51
FRONT BAFFLE KIT . 53 PLN-532170031
...
52
DECAL.CUTFINGER.CE.02 PLN-581579101
...
53
SCREW 1/4X20 PLN-817600406
...
54
WASHER PM PLN-532088348
...
55
LOCKNUT PLN-873680600
...
56
HINGE SCREW PLN-532088652
...
57
HAIRPIN COTTER PLN-532051793
...
58
HANDLE.LOWER.D-STRAIT.BLACK PLN-532434514
...
59
BOLT, HANDLE 5/16-18X1.75 PLN-532191574
...
64
B S 126T02-1601-B1 FOR SERVICE PARTS 1-800-233-3723 PLN-000000000
...
65
O-RING..070X.487.NEOPRENE PLN-532197480
...
68
WHEEL ADJUSTING BRACKET LH LH PLN-532407493
...
69
CLIP.CABLE.BLK PLN-532197991
...
71
BRACKET.ENG/BELTKEEPER.BZP PLN-532429001
...
xx
DECAL, WARNING (NOT SHOWN) NOT SHOWN PLN-532404764
...
...
...
