product name

Poulan PP2822 - 966513101 (2011-03) Hedge Trimmer

Model: PP2822 - 966513101 (2011-03)

Save
 Part Not Listed?Part Not Listed?
product name

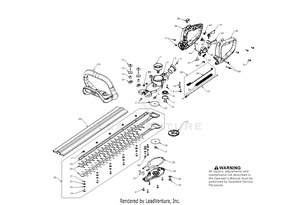

CUTTING EQUIPMENT

...
...
1
CLUTCH DRUM PLN-574678601
...
2
GEARBOX KIT . 1 5 6 7 830 32 33 PLN-577588701
...
3
HANDLE BUSH PLN-574678501
...
4
SCREW PLN-574679001
...
5
BUSH PLN-574678901
...
6
BALL BEARING 6003 C3 PLN-574679202
...
7
C RING PLN-574679301
...
8
C RING PLN-574679401
...
9
SCREW PLN-575873201
...
10
SCREW PLN-574679101
...
11
NUT PLN-574594401
...
12
SCREW PLN-574679501
...
13
SHOCK ABSORPTION PLN-574679601
...
14
BUSH PLN-574679701
...
15
SHOCK ABSORPTION LOWER PLN-574679801
...
16
HANDLE,FRONT PLN-574679901
...
17
NUT PLN-574677001
...
18
GASKET PLN-574680001
...
19
BLADE PLN-575504601
...
20
BLADE PLN-574681301
...
21
BUSH PLN-574682101
...
22
WASHER PLN-574682201
...
23
WAVE WASHER PLN-575873301
...
24
SCREW PLN-574682301
...
25
BLADE . 11 19 THRU 24 PLN-575504501
...
26
SCREW PLN-574683101
...
27
GEAR KIT PLN-577588401
...
28
BLADE COVER PLN-574682501
...
29
GASKET PLN-574682801
...
30
GEARBOX COVER PLN-574683001
...
31
FELT PLN-574683201
...
32
WASHER PLN-576936201
...
33
SCREW PLN-576936401
...
34
COIL WIRE . 34 35 PLN-574675601
...
35
FLEXIBLE CONDUIT PLN-574675801
...
36
IGNITION CABLE ASSY PLN-574693801
...
37
THROTTLE CABLE PLN-574675701
...
38
HANDLE RIGHT PLN-574675101
...
39
SWITCH PLN-574675401
...
40
SPRING RELEASE PLN-574675901
...
41
TRIGGER RELEASE PLN-574676001
...
42
THROTTLE SPRING PLN-574676101
...
43
TRIGGER PLN-574676301
...
44
TRIGGER ROTATE LOCK PLN-574676401
...
45
SPRING ROTATE RELEASE PLN-574676501
...
46
RELEASE SPRING PLN-574685901
...
47
PLATE CABLE PLN-576213201
...
48
SCREW PLN-574676601
...
49
HANDLE, LEFT PLN-574676701
...
50
SCREW PLN-574676901
...
51
SCREW PLN-574673201

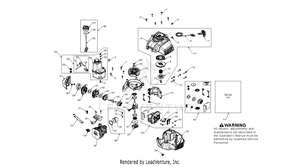

ENGINE

...
...
1
SCREW PLN-574673101
...
2
SCREW PLN-574673201
...
3
SCREW PLN-576658201
...
4
ENGINE HOUSING TOP PLN-574673701
...
5
EYELET, STARTER ROPE PLN-574605601
...
6
ROPE STARTER PLN-530021167
...
7
STARTER HANDLE PLN-574673501
...
8
Kit-Starter Spring PLN-545008013
...
9
STARTER PULLEY PLN-576936001
...
10
DECAL, WARNING PLN-545116901
...
11
STARTER HUB PLN-576935801
...
12
SCREW PLN-545112801
...
13
STARTER HOUSING ASSY . 4 THRU 12 PLN-574673401
...
14
SCREW PLN-574672101
...
15
PLN-530016897
...
16
BEARING CAP PLN-576936101
...
17
SEAL CYLINDER PLN-545083301
...
18
PLUG SPARK (RCJ6-Y) PLN-530030179
...
19
CYLINDER KIT & F'WHEEL SCROLL . 33 PLN-577587201
...
20
IGNITION MODULE PLN-575504201
...
21
GROMMET PLN-574590901
...
22
SCREW M4 X .70 TT 16MM PLN-530016456
...
23
WIRE COIL PLN-575675001
...
24
RING PISTON PLN-575227901
...
25
PISTON PLN-575504301
...
26
ASSEMBLY PLN-574671801
...
27
PISTON PIN PLN-530032159
...
28
WRIST PIN RET. PLN-530015162
...
29
Bearing - Crankshaft PLN-545013401
...
30
CRANKSHAFT SEAL PLN-545004301
...
31
GASKET, CLUTCH PLN-574674401
...
32
CLUTCH KIT . 31 PLN-577587801
...
33
CYLINDER KIT & F'WHEEL SCROLL . 19 PLN-577587201
...
34
FLYWHEEL ASSY PLN-576423301
...
35
PLN-530016828
...
36
NUT-FLYWHEEL PLN-530016134
...
37
AIR FILTER COVER PLN-574672301
...
38
NUT PLN-530016101
...
39
FOAM PLN-574672401
...
40
PLN-574372601
...
41
GASKET AIRBOX PLN-545082801
...
42
CARBURETOR KIT . 41 43 PLN-577587901
...
43
GASKET CARB PLN-545141501
...
44
CARB PLATE PLN-574672901
...
45
SCREW PLN-530016187
...
46
BOOT, CARB PLN-545132501
...
47
GASKET PLN-545119101
...
48
SPARK ARRESTOR SCREEN PLN-545118901
...
49
HOOD EXHAUST OUTLET PLN-574673901
...
50
PLN-530016241
...
51
BOLT MUFFLER PLN-530058982
...
52
MUFFLER ASSY . 47 THRU 51 PLN-574673801
...
53
ENGINE HOUSING, LOWER PLN-574674201
...
54
GROMMET PLN-576200201
...
55
FUEL TANK PLN-574677201
...
56
VALVE PLN-574607101
...
57
FOAM PLN-574678301
...
58
VALVE COVER PLN-574678401
...
59
FUEL LINE KIT PLN-577587701
...
60
FUEL LINE KIT PLN-577587701
...
61
FUEL LINE KIT PLN-577587701
...
62
FUEL LINE KIT . 59 60 61 PLN-577587701
...
63
FUEL TUBE GROMMET PLN-574678001
...
64
FUEL TANK ASSY . 55 THRU 63 68 PLN-577588001
...
65
RETAINER PLN-574677901
...
66
GASKET PLN-574677801
...
67
FUEL CAP ASSY PLN-574607701
...
68
FUEL CAP ASSY . 65 66 67 PLN-574607701
...
69
PISTON KIT . 24 25 27 28 PLN-577285101
...
70
GASKET KIT PLN-577285201
...
71
DECAL KIT PLN-577588101
...
...
...
