Poulan PP258TPC - 579218001 (2011-10) Pole Pruner-Pole Saw

Model: PP258TPC - 579218001 (2011-10)

Save
 Part Not Listed?Part Not Listed?
product name

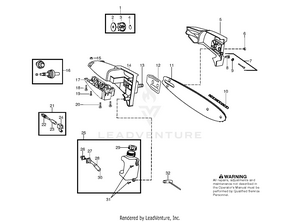

CUTTING EQUIPMENT

...
...
1
SPROCKET 2 3 4 PLN-530071647
...
2
WASHER PLN-530056521
...
3
SPROCKET PLN-530056520
...
4
RING SPROCKET RETAINER PLN-530056563
...
5
BAR CLAMP ASSY 7 PLN-530057100
...
6
BAR NUT PLN-530015917
...
7
RETAINER 8 9 PLN-530069611
...
8
ADJUST PIN,BAR 36/41 PLN-530015826
...
9
RETAINER PLN-530038593
...
10
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501
...
11
BAR PLN-530044908
...
12
PAD BAR PLATE PLN-530056523
...
13
BOLT PLN-530016133
...
14
GEAR HOUSING UPPER 13 PLN-530056513
...
15
NUT,HEX PLN-530016284
...
16
KIT GEAR ASSY PLN-530071646
...
17
GEAR HOUSING LOWER PLN-530056514
...
18
SCR 10-24 MS LDK PAN PH PLN-530016312
...
19
SCREW-10-14 X 1/2 PLASTITE PLN-530015805
...
20
SCREW-10-14 X 13/16 (PL PLN-530015886
...
21
OILER 22 23 24 26 PLN-530071645
...
22
ASSY GEAR PLUNGER PLN-530053764
...
23
BARREL PLN-530053765
...
24
OIL BLOCK ASSY 23 PLN-530057347
...
25
ASSY OIL TANK 26 27 28 29 30 PLN-530150266
...
26
OIL PUMP FITTING PLN-530056524
...
27
LINE OIL INTAKE PLN-530021160
...
28
Filter-Oil PLN-530056533
...
29
CAP OIL PLN-530150552
...
30
Filter-Oil PLN-530056533

ENGINE

...
...
1
SCREW PLN-530015880
...
2
BOLT MUFFLER PLN-530058982
...
3
ASSY MUFFLER SHIELD 2 PLN-545227901
...
4
SCREW PLN-530015953
...
5
PLUG-SPARK (RCJ-6Y) PLN-952030249
...
6
CYLINDER MACHINED 25CC LO PLN-530012541
...
8
RING PISTON PLN-545154001
...
9
WRIST PIN RET. PLN-530015162
...
10
PISTON KIT 8 9 PLN-530071833
...
11
ASSY CRANKSHAFT PLN-545145802
...
12
ASSY CRANKCASE 40 41 42 PLN-530012582
...
14
ADAPTOR CARBURETOR PLN-530057547
...
15
SCREW PLN-530016441
...
17
KIT CARB ASSY PLN-530071811
...
18
BASE AIR BOX PP GOLD PLN-545077501
...
19
SCREW PLN-530016429
...
20
AIR FILTER PLN-530036575
...
21
COVER AIR BOX FE PLN-530057545
...
22
Kit - Ignition Module PLN-545081826
...
23
SPACER FLYWHEEL PLN-530059758
...
24
SCREW PLN-530016357
...
25
LEAD WIRE ASSEMBLY PLN-530047278
...
26
SCREW PLN-530016386
...
27
HANDLE STARTER BLK PLN-530054834
...
28
KIT ROPE PLN-545050409
...
29
ASSEMBLY CLUTCH PLN-530055122
...
30
WASHER-CLUTCH PLN-530094189
...
31
HSG FAN W/EYELET PP GOLD PLN-545016004
...
32
KIT STARTER SPRING PLN-545008014
...
33
KIT STARTER PULLEY PLN-545050407
...
34
BAFFLE FAN PLN-545080601
...
35
SCREW PLN-530015880
...
36
WASHER CLUTCH PLN-530016463
...
37
ASSY FLYWHEEL PLN-530039243
...
38
ASSY CRANKCASE & CRANKSHAFT 11 12 39 PLN-545102101
...
39
RETAINING RING PLN-530015941
...
40
OUTER BEARING PLN-530055728
...
41
SEAL PLN-530019264
...
42
BEARING PLN-530032125
...
43
PISTON KIT 10 44 PLN-530071785
...
44
CONNECTING ROD ASSY PLN-530049817
...
46
ASSY REAR PLUG 45 PLN-530057954
...
47
SCREW PLN-530016386
...
48
SHROUD REAR BLACK PLN-530057539
...
49
SCREW FUEL TANK RETAINER PLN-530016445
...
50
ASSY FUEL TANK PLN-545103702
...
51
ASSY FUEL CAP W/RETAINER PLN-530057973
...
52
KIT-LINE PLN-530069247
...
53
LINE KIT PLN-530069216
...
54
FUEL PICK-UP ASSY PLN-530095646
...
55
KIT GASKET 25CC 7 12 16 45 PLN-530071750
...
56
ASSY CLUTCH DRUM W/ADPT PLN-530150247
...
57
ASSY CLUTCH COVER 60 61 PLN-545077301
...
58
SCREW PLN-530016319
...
59
SCREW-10-24 X 1" (TAP.) PLN-530015772
...
60
SCREW 12-24 X 5/8 PLN-530016381
...
61
NUT SQUARE 12-24 PLN-530016382
...
62
SCREW PLN-530015814

HANDLE CONTROLS

...
...
1
ASSY THROTTLE CABLE PLN-530059759
...
2
HOUSING THROTTLE FAN PLN-530057541
...
3
SCREW #10 PLASTITE 1.362 PLN-530016406
...
4
SCREW PLN-530015814
...
5
WIRE ASSY PLN-530054183
...
6
HSG THROTTLE LH PLN-530059760
...
7
Kit-Switch (momentary) PLN-545030601
...
8
TRIGGER RED PLN-530049107
...
9
ASSY HANDLE GAS ASSIST 1 10 11 12 PLN-530059101
...
10
Nut PLN-530091373
...
11
CLAMP ASSIST HANDLE PLN-530059185
...
12
BOLT, TYPE 2 PLN-530015820
...
13
CLAMP HARNESS UPPER PLN-530057986
...
14
KIT UPPER SHAFT BLACK 21 PLN-575260201
...
15
CLAMP LOWER HARNESS PLN-530057987
...
16
SCREW PLN-530015940
...
17
TUBE 21 PLN-576472801
...
18
ASSY D'SHAFT SVC 24" BLACK PLN-574305301
...
19
FLEX-LOWER PLN-530096218
...
20
Shoulder Strap PLN-530094417
...
21
ASSY COUPLER BLACK PLN-545213801
...
...
...
