product name

Poulan ES350 Electric Saw

Model: ES350 Electric Saw

Save
 Part Not Listed?Part Not Listed?
product name

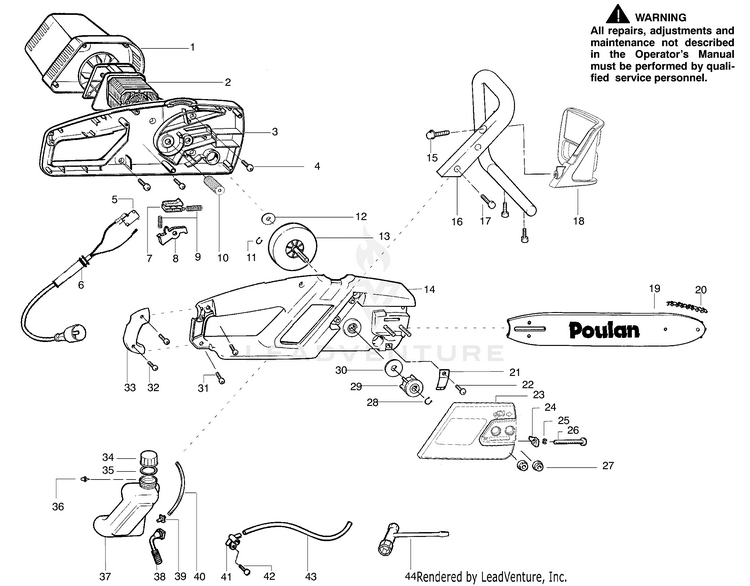

Electric Saw Assembly

...
...
1
Motor Cover PLN-530403211
...
2
Motor Outline PLN-530404233
...
3
Assy-Housing PLN-530404200
...
4
Screw PLN-530015814
...
5
Switch-Momentary PLN-530402879
...
6
Assy-Harness Incl. # 5 PLN-530404254
...
7
Lockout Button PLN-530053179
...
8
Trigger PLN-530053181
...
9
Spring-Trigger PLN-530042091
...
10
Pinion PLN-530053067
...
11
Ring-Retainer PLN-530042090
...
12
Washer-Thrust PLN-530016278
...
13
Gear Drive PLN-530053048
...
14
Housing Cover PLN-530053061
...
15
Screw PLN-530016406
...
16
Front Handle PLN-530403237
...
17
Screw PLN-530015814
...
18
Handguard PLN-530403313
...
19
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
20
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
21
Chain Catcher PLN-530029850
...
22
Screw PLN-530015940
...
23
Bar Clamp PLN-530053153
...
24
Pin-Bar Adjust PLN-530053068
...
25
Retainer-Bar Ajdust PLN-530024419
...
26
Screw-Bar Adjust PLN-530016265
...
27
Nut-Bar Mounting PLN-530015917
...
28
Ring-Retainer PLN-530042090
...
29
Sprocket (3/8 Pitch) PLN-530053053
...
30
Washer-Sprocket PLN-530016262
...
31
Screw PLN-530015775
...
32
Screw PLN-530015814
...
33
Cover Access PLN-530403217
...
34
CAP OIL PLN-530150552
...
35
O-Ring (Oil Cap) PLN-530019136
...
36
Check Valve (Duckbill) PLN-530026119
...
37
Oil Tank Ass'y. Incl.34,35,36, 38,39,40 PLN-530053248
...
38
Oil Pickup Ass'y. PLN-530047663
...
39
Oil Pickup Fitting PLN-530053270
...
40
Inlet Line PLN-530403393
...
41
Oil Pump Ass'y. PLN-530403311
...
42
Screw PLN-530015775
...
43
Outlet Line PLN-530403394
...
44
Bar Wrench PLN-530031163
...
xx
Operator Manual Not Shown PLN-545146939
...
xx
SCABBARD (16") Not Shown PLN-530029543
...
xx
Decal-Warning Not Shown PLN-530053853
...
...
...
