Poulan BVM210FA (2012-10) Blower

Model: BVM210FA (2012-10)

Save
 Part Not Listed?Part Not Listed?
product name

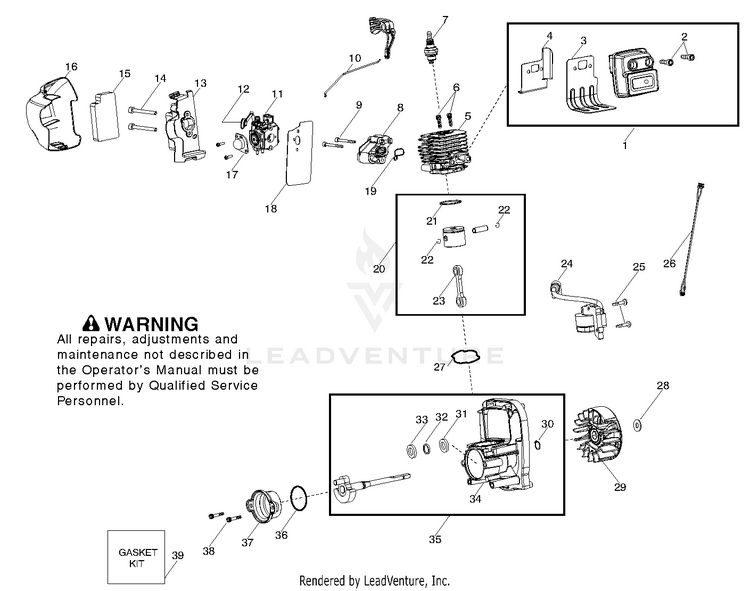

ENGINE

...
...
1
ASSY MUFFLER WELDED PLN-525592801
...
2
BOLT MUFFLER PLN-530058982
...
3
REF 1 39 PLN-000000000
...
4
SHIELD MUFFLER HEAT PLN-545098801
...
5
CYLINDER CHROME 25CC PLN-545115301
...
6
SCREW PLN-530015953
...
7
PLUG-SPARK (RCJ-6Y) PLN-952030249
...
8
ADAPTER CARBURETOR PLN-545084901
...
9
SCREW PLN-530016441
...
10
LINKAGE THROTTLE PLN-545115501
...
11
KIT CARB INCL 12 17 PLN-545180811
...
12
LEVER CHOKE PP GOLD PLN-545135905
...
13
AIRBOX BASE BLACK PLN-545163401
...
14
SCREW PLN-530016429
...
15
FOAM AIR FILTER PLN-545146501
...
16
AIRBOX COVER BLACK PLN-545163501
...
17
PURGE BULB 188-16 PLN-530035497
...
18
REF 39 PLN-000000000
...
19
REF 39 PLN-000000000
...
20
KIT PISTON CONN ROD INCL 21 22 23 PLN-545081864
...
21
PISTON RING PLN-545154009
...
22
WRIST PIN RET. PLN-530015162
...
23
KIT PISTON CONN ROD FORGED PLN-545156002
...
24
Kit - Ignition Module PLN-545081826
...
25
SCREW PLN-530016357
...
26
HARNESS WIRE PLN-545127601
...
27
REF 39 PLN-000000000
...
28
WASHER FLAT PLN-530015828
...
29
FLYWHEEL ASSY PLN-545221701
...
30
RETAINING RING PLN-530015941
...
31
OUTER BEARING PLN-530055728
...
32
SEAL PLN-530019264
...
33
BEARING PLN-530032125
...
34
ASSY CRANKCASE INCL 31 32 33 PLN-530012582
...
35
KIT CRANKCASE/CRANKSHAFT INCL 30 34 PLN-579012701
...
36
REF 39 PLN-000000000
...
37
ASSY REAR PLUG INCL 36 PLN-530057954
...
38
SCREW PLN-530016386
...
39
KIT GASKET 25CC INCL 3 18 19 27 36 PLN-545081832

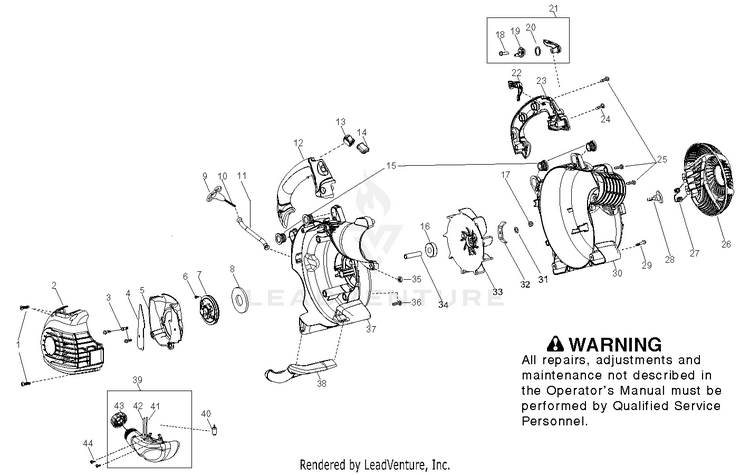

HOUSING

...
...
1
SCREW PLN-530015814
...
2
PLN-578786901
...
3
SCREW PLN-530015880
...
4
SHIELD BAFFLE PLN-545134001
...
5
BAFFLE PLN-545099101
...
6
SCREW PLN-530016080
...
7
KIT STARTER PULLEY PLN-545081852
...
8
KIT STARTER SPRING PLN-545008011
...
9
HANDLE STARTER BLK PLN-530054834
...
10
KIT ROPE PLN-545050416
...
11
TUBE STARTER ROPE PLN-545107101
...
12
HANDLE RH W/SOFT GRI PLN-545147801
...
13
KIT SWITCH INCL 14 PLN-545081830
...
14
Protector - Switch PLN-545128201
...
15
GROMMET PLN-545137701
...
16
Bearing PLN-545099001
...
17
NUT PLN-530626605
...
18
SCREW PLN-530015814
...
19
Rachet - Cruise Control PLN-545111501
...
20
WASHER PLN-545173101
...
21
KIT CRUISE CONTROL PLN-545081867
...
22
TRIGGER THROTTLE BLA PLN-545144902
...
23
ASSY HANDLE LEFT W/C PLN-545180001
...
24
SCREW #10 PLASTITE 1.362 PLN-530016406
...
25
SCREW PLN-530015814
...
26
COVER VAC DOOR PLN-545148201
...
27
SPRING VAC DOOR PLN-545115601
...
28
KNOB BLOWER PLN-545144501
...
29
SCREW PLN-530015940
...
30
ASSY SCROLL LEFT AV INCL 26 27 PLN-545180201
...
31
LOCK WASHER PLN-530092322
...
32
Blade - Mulch PLN-545120701
...
33
ASSY IMPELLER HUB PRO GOLD PLN-580780901
...
34
FLYWHEEL SPACER PLN-576810101
...
35
NUT PLN-530015197
...
36
SCREW PLN-530016386
...
37
ASSY SCROLL RIGHT W/BEARING INCL 16 PLN-545180102
...
38
HANDLE ASSIST VAC BL PLN-545148001
...
39
FUEL TANK ASSY INCL 41 42 43 PLN-578943301
...
40
FUEL PICK-UP ASSY PLN-530095646
...
41
KIT LINE CARB .188 PLN-581648601
...
42
LINE KIT PLN-530069216
...
43
FUEL CAP ASSY PLN-578931603
...
44
SCREW FUEL TANK RETAINER PLN-530016445

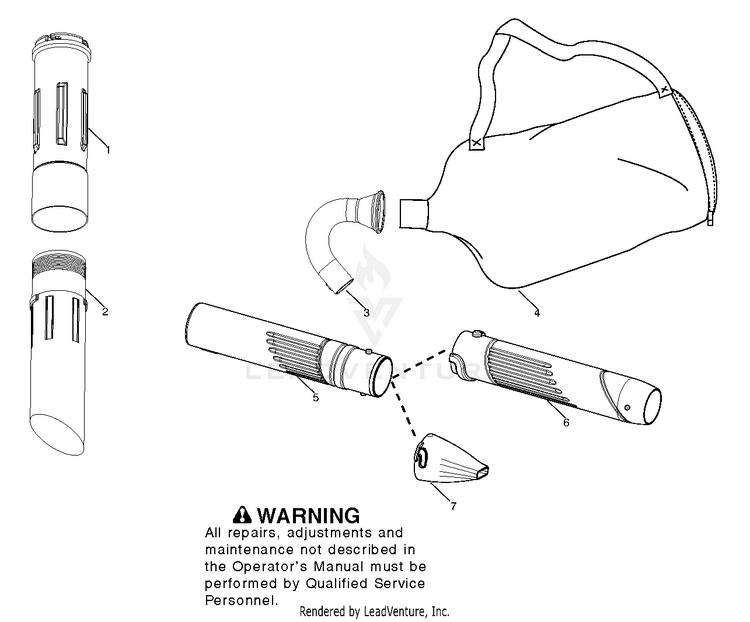

TUBE

...
...
1
TUBE VAC UPPER BLACK PLN-545099401
...
2
TUBE LOWER VAC PLN-530095589
...
3
TUBE PLN-575873601
...
4
ASSY VAC BAG GAS W/STRAP PLN-530095564
...
5
TUBE BLOWER UPPER P/S PLN-545138001
...
6
TUBE BLOWER LOWER ROUND P/S PLN-545138101
...
7
NOZZLE BLACK HI SPEED ADAPTOR PLN-545151201
...
...
...
