product name

Poulan BVM200FE (2011-05) Blower

Model: BVM200FE (2011-05)

Save
 Part Not Listed?Part Not Listed?
product name

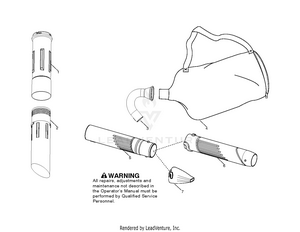

*Attachments

...
...
1
TUBE VAC UPPER BLACK PLN-545099401
...
2
TUBE LOWER VAC PLN-530095589
...
3
TUBE VACUUM J BLACK PLN-575873501
...
4
ASSY VAC BAG GAS W/STRAP PLN-530095564
...
5
TUBE BLOWER SUPPER W BLACK PLN-545100501
...
6
TUBE BLOWER LOW END BLACK PLN-545100601
...
7
NOZZLE BLACK HI SPEED ADAPTOR PLN-545151201

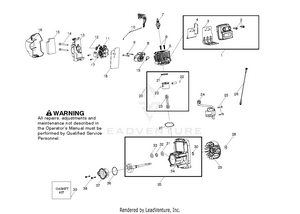

ENGINE

...
...
1
ASSY MUFFLER WELDED . 2 3 4 PLN-525592801
...
2
BOLT MUFFLER PLN-530058982
...
3
KIT GASKET 25CC GASKET KIT PLN-545081832
...
4
SHIELD MUFFLER HEAT PLN-545098801
...
5
CYLINDER CHROME 25CC PLN-545115301
...
6
SCREW PLN-530015953
...
7
PLUG-SPARK (RCJ-6Y) PLN-952030249
...
8
ADAPTER CARBURETOR PLN-545084901
...
9
SCREW PLN-530016441
...
10
LINKAGE THROTTLE PLN-545115501
...
11
KIT CARBURETOR C1U-W43 . 12 17 PLN-545081857
...
12
LEVER CHOKE C1U-W43 PLN-545157104
...
13
BASE PLN-574701601
...
14
SCREW PLN-530016429
...
15
FOAM AIR FILTER PLN-545146501
...
16
AIRBOX COVER BLK PLN-545139201
...
17
PURGE BULB 188-16 PLN-530035497
...
18
KIT GASKET 25CC GASKET KIT PLN-545081832
...
19
KIT GASKET 25CC GASKET KIT PLN-545081832
...
20
KIT PISTON CONN ROD . 21 22 23 PLN-545081864
...
21
PISTON RING PLN-545154009
...
22
WRIST PIN RET. PLN-530015162
...
23
KIT PISTON CONN ROD FORGED PLN-545156002
...
24
Kit - Ignition Module PLN-545081826
...
25
SCREW PLN-530016357
...
26
HARNESS WIRE PLN-545127601
...
27
KIT GASKET 25CC GASKET KIT PLN-545081832
...
28
WASHER FLAT PLN-530015828
...
29
FLYWHEEL ASSY PLN-545221701
...
30
RETAINING RING PLN-530015941
...
31
OUTER BEARING PLN-530055728
...
32
SEAL PLN-530019264
...
33
BEARING PLN-530032125
...
34
ASSY CRANKCASE . 31 32 33 PLN-530012582
...
35
ASSY CRANKCASE & CRANKSHAFT . 30 34 PLN-545102102
...
36
KIT GASKET 25CC PLN-545081832
...
37
ASSY REAR PLUG PLN-530057954
...
38
SCREW PLN-530016386
...
39
KIT GASKET 25CC GASKET KIT. 3 18 19 27 36 PLN-545081832

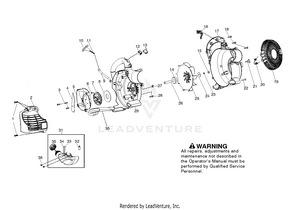

HOUSING

...
...
1
SCREW PLN-530015814
...
2
ASSY COVER ENGINE PLN-545135806
...
3
SCREW PLN-530015880
...
4
SHIELD BAFFLE PLN-545134001
...
5
BAFFLE PLN-545099101
...
6
SCREW SEMS TOOTHED WASHER PLN-530016391
...
7
KIT STARTER PULLEY PLN-545081852
...
8
KIT STARTER SPRING PLN-545008011
...
9
TUBE STARTER ROPE PLN-545107101
...
10
HANDLE STARTER BLK PLN-530054834
...
11
KIT ROPE PLN-545081833
...
12
KIT SWITCH . 13 PLN-545081830
...
13
Protector - Switch PLN-545128201
...
14
Bearing PLN-545099001
...
15
NUT PLN-530626605
...
16
TRIGGER THROTTLE RED PLN-545113803
...
17
COVER . 19 20 PLN-545134103
...
18
SCREW PLN-530015814
...
19
DOOR VAC BLACK PLN-545100801
...
20
SPRING VAC DOOR PLN-545115601
...
21
KNOB BLOWER PLN-545144501
...
22
SCREW #10 PLASTITE 1.362 PLN-530016406
...
23
LOCK WASHER PLN-530092322
...
24
Washer - Impeller PLN-545109901
...
25
ASSY IMPELLER HUB PRO GOLD PLN-580780901
...
26
SPACER FLYWHEEL PLN-545113701
...
27
NUT PLN-530015197
...
28
SCREW PLN-530016386
...
29
FAN HOUSING . 14 PLN-545100903
...
30
HANDLE VAC BLACK PLN-545101201
...
31
FUEL TANK . 32 33 34 35 PLN-576764901
...
32
FUEL PICK-UP ASSY PLN-530095646
...
33
KIT-LINE CARB /PURGE PLN-530069247
...
34
LINE KIT TANK /PURGE PLN-530069216
...
35
ASSY FUEL CAP W/RETAINER PLN-530057973
...
36
SCREW FUEL TANK RETAINER PLN-530016445
...
xx
MANUAL OPERATORS NOT SHOWN PLN-115429226
...
xx
NOT SHOWN PLN-537290301
...
xx
DECAL WARNING VAC NOT SHOWN PLN-574525901
...
...
...
