Poulan 961320071 - 96132007100 (2012-02) Walk Behind Mower

Model: 961320071 - 96132007100 (2012-02)

Save
 Part Not Listed?Part Not Listed?
product name

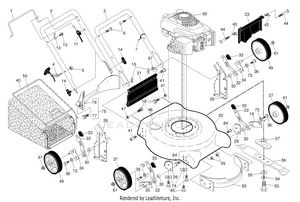

FRAME ENGINE

...
...
1
BAIL.CONT.D.STRAIGHT.PUSH.BLK PLN-532196025
...
2
HANDLE.UPPER.ECONOMY.BLACK PLN-532448263
...
3
HANDLE.LOWER.D-STRAIT.BLACK PLN-532434514
...
4
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
5
NUT 1/4-20 NYLOC PLN-539976978
...
6
BOLT, HANDLE 5/16-18X1.75 PLN-532191574
...
7
WIRE TIE PLN-532007192
...
11
CABLE.MZR.RATO.22"LOW. PLN-532440934
...
12
SCREW PLN-532178848
...
13
BRACKET.UPSTOP.RT PLN-532430034
...
14
HANDLE.KNOB.BLACK PLN-532185577
...
15
HAIRPIN COTTER PLN-532051793
...
18
SCREW 1/4X20 PLN-817600406
...
19
ARM.ASM.AXLE.5/9.POS. LH PLN-532401174
...
20
ARM.ASM.AXLE.5/9.POS.BZP RH PLN-532401175
...
21
KIT.SKIRT.21 DOMED.W/LIP PLN-532418655
...
22
SPRING.SELECTOR.5POS.BZP PLN-532401621
...
23
DOOR.REAR.21.DOMED PLN-532401814
...
25
BRACKET.ASM.HAND.LW.21.LT.BLAC LH PLN-581714502
...
26
BRACKET.ASM.HAND.LW.21.RT.BLAC RH PLN-581714602
...
28
BRACKET.ADJ.5.RTAB.LG.HOLE.ABS FRONT LH PLN-532414441
...
29
BRACKET.ADJ. RH FRONT RH PLN-532407500
...
30
SPACER.HEIGHT.ADJUSTER PLN-532401629
...
32
SPRING SELECTOR.REAR PLN-532401623
...
33
KNOB PM PLN-532087877
...
34
ARM.ASM.AXLE.REAR.5/9.POS.BZP REAR PLN-532410890
...
36
SHOULDER BOLT 5/16-18 PLN-532401638
...
37
WHEEL.7X1.75.5SPK.BRK.YELLOW PLN-532193931
...
40
FRAME.BAG.21.REAR.DOMED.PUSH PLN-532411949
...
41
SCREW.1/4-20X21/4.HEX. PLN-532194186
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT LH PLN-532405421
...
43
SPRING.RH.22.REAR.DOOR.EZ. RH PLN-532405423
...
44
BOLT PLN-532184193
...
45
BOLT 3/8-16X1-1/8 PLN-532150406
...
46
DECAL.CUTFINGER.CE.02 PLN-581579101
...
35
NUT.FLANGE.HEX.5/16X18.BLACK PLN-532426589
...
49
WHEEL.8X1.75.MARI.BRK.5SKP.1 PLN-532193905
...
50
GBAG.24710616S.WEED.BLK.YE PLN-581002106
...
52
HOUSING.21RD.DOME.GREEN.E/S . 46 PLN-532446821
...
53
BOLT.3/8-24X1.25 GR8 PLN-583116901
...
54
SLW 3/8 STD PLN-539990118
...
55
WASHER,HARDEN PLN-532851074
...
56
BLADE.21.PUSH/RWGD/FWGD PLN-532406712
...
57
ADAPTER.BLADE.W/KEY.25MM.CE PLN-532418373
...
59
ENGINE.RATO.550S.140CC.25MM RATO RV140- 1 PLN-532445722
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
73
WASHER.CURVED.CYLINDRICAL PLN-532401630
...
74
WASHER.ENGINE.BZP PLN-532125078
...
75
KIT.BAFFLE.REAR.PLASTIC.21.RD PLN-532413693
...
76
BAFFLE.REAR.PLASTIC.21.RD.ECON PLN-532410589
...
77
SCREW.HX.13X.750 PLN-817411312
...
83
BAFFLE.FRONT.21.DOME.US PLN-532428501
...
84
BOLT.5/16HEX.WHS.HD PLN-817000510
...
47
NUT.CENTERLOCK.5/16- PLN-873930500
...
xx
DECAL, WARNING (NOT SHOWN) NOT SHOWN PLN-532404764
...
...
...
