Poulan 810 EPT Electric Pole Pruner

Model: 810 EPT Pole Pruner

Save
 Part Not Listed?Part Not Listed?
product name

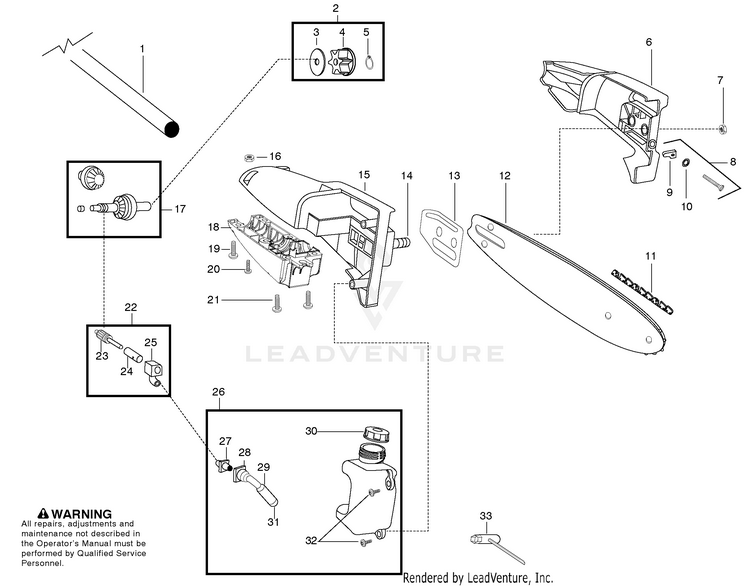

Cutting Equipment

...
...
1
Assy. - Driveshaft PLN-530096062
...
2
Kit - Sprocket Assy. (Incl. 3,4,5) PLN-530071647
...
3
Washer PLN-530056521
...
4
Sprocket PLN-530056520
...
5
Retainer - Sprocket PLN-530056563
...
6
Assy - Bar Clamp (Incl. 8) PLN-530057100
...
7
Nut - Bar Mounting PLN-530015917
...
8
Kit - Bar Adjust (Incl. 9,10) PLN-530069611
...
9
Pin - Bar Adjust PLN-530015826
...
10
Retainer - Bar Adjust PLN-530038593
...
11
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501
...
12
Bar - 8" PLN-530044908
...
13
Plate - Bar Pad PLN-530056523
...
14
Bolt - Bar PLN-530016133
...
15
Housing - Upper (Incl. 14) PLN-530056513
...
16
Nut PLN-530016284
...
17
Kit - Gear Assy. PLN-530071646
...
18
Housing - LowerScrew PLN-530056514
...
19
Screw PLN-530016312
...
20
Screw - Alignment PLN-530015805
...
21
Screw PLN-530015886
...
22
Kit - Oil Assy (Incl. 23,24,25,27) PLN-530071645
...
23
Assy. - Gear Plunger PLN-530053764
...
24
Barrel PLN-530053765
...
25
Block - Oil PLN-530056522
...
26
ASSY OIL TANK (Incl. 27,28,29,30,31) PLN-530150266
...
27
Fitting - Oil Line PLN-530056524
...
28
Intake - Oil Line PLN-530021160
...
29
Filter-Oil PLN-530056533
...
30
CAP OIL PLN-530150552
...
31
Filter-Oil PLN-530056533
...
32
Screw PLN-530015843
...
33
Wrench - Bar PLN-530031163

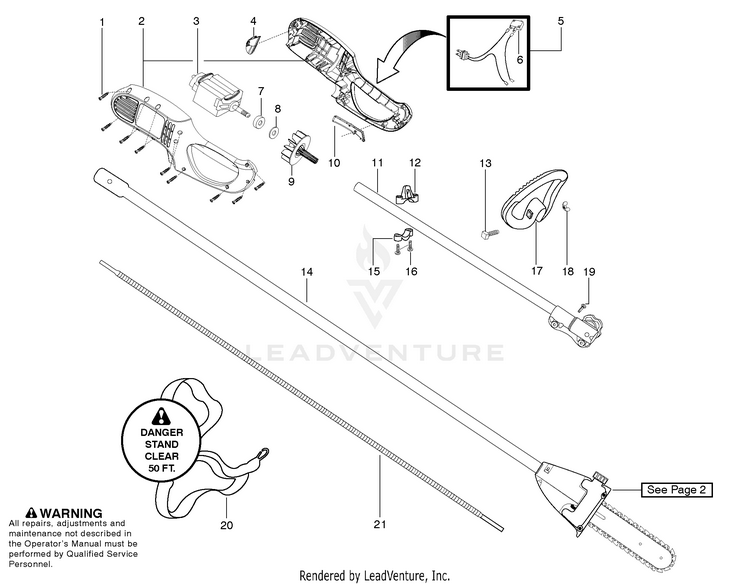

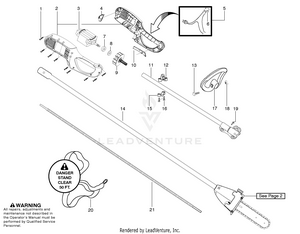

Handle and Controls

...
...
1
Screw PLN-530016120
...
2
Assy-Housing Set w/decal PLN-530071963
...
3
Assy-Motor PLN-530404326
...
4
Retainer-Cord PLN-530404385
...
5
Assy-Wire Harness (Incl. #6) PLN-530404386
...
6
Switch-Momentary PLN-530404396
...
7
Spacer PLN-530404165
...
8
Washer PLN-530400897
...
9
Fan-Cooling PLN-530404327
...
10
Trigger-Switch PLN-530404325
...
11
Kit-Upper shaft w/decal (Incl. #19) PLN-530071965
...
12
Clamp-Upper Harness PLN-530057986
...
13
Bolt-Handle PLN-530015786
...
14
Assy-Driveshaft PLN-530096012
...
15
Clamp-Lower Harness PLN-530057987
...
16
Screw PLN-530015940
...
17
Assy-Handle (Incl. 13 & 18) PLN-530058583
...
18
Nut PLN-530091373
...
19
Screw PLN-530016381
...
20
Shoulder Strap PLN-530094417
...
21
Shaft-Flex PLN-530056570
...
21
Manual - Operator Not Shown PLN-115260526
...
21
Wrench - Hex (5/32") Not Shown PLN-530031159
...
21
Attachment - Hanger Not Shown PLN-530150031
...
21
Decal - Model Warning Not Shown PLN-530150125
...
21
Decal - Shaft Warning Not Shown PLN-530150181
...
21
Decal - Pole Saw Warning Not Shown PLN-530150724

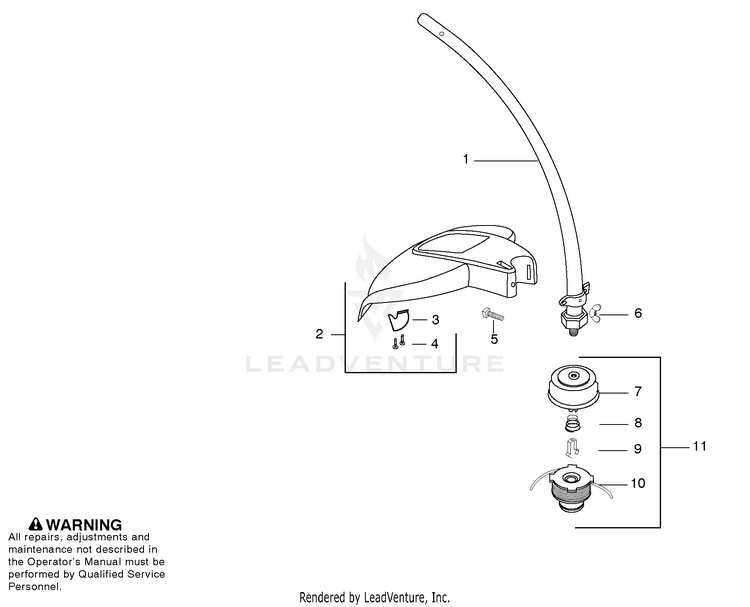

Shaft

...
...
1
Kit - Lower Shaft Assy. (Incl. flex shaft) PLN-530071788
...
2
Kit - Shield Assy. (Incl. 3,4) PLN-530071964
...
3
Limiter - Line PLN-530052286
...
4
Screw PLN-530015814
...
5
Bolt PLN-530015820
...
6
Nut PLN-530091373
...
7
Kit-Hub Ass'y (Incl. 8,9) PLN-530071306
...
8
Spring - Return PLN-530053241
...
9
Retainer - Spool PLN-530401957
...
10
TNG 6 RH .080X25' PLN PLN-952701719
...
11
Accy. - Cutting Head Assembly PLN-952711621
...
11
Decal-Shaft Warning Not Shown PLN-545209101
...
11
Decal - Shield Warning Not Shown PLN-530150358
...
...
...
