Poulan 810 EP Electric Pole Pruner

Model: 810 EP Pole Pruner, Electric Pole Pruner

Save
 Part Not Listed?Part Not Listed?
product name

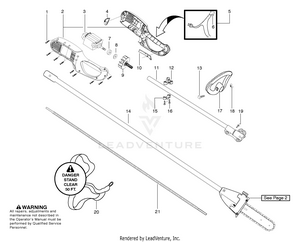

Motor/Handle & Pole Pruner Shaft Assembly

...
...
1
Screw PLN-530016120
...
2
Assy-Housing Set w/decal PLN-530071962
...
3
Assy-Motor PLN-530404326
...
4
Retainer-Cord PLN-530404385
...
5
Assy-Wire Harness (Incl. #6) PLN-530404386
...
6
Switch-Momentary PLN-530404396
...
7
Spacer PLN-530404165
...
8
Washer PLN-530400897
...
9
Fan-Cooling PLN-530404327
...
10
Trigger-Switch PLN-530404325
...
11
Kit-Upper shaft w/decal (Incl. #19) PLN-530071965
...
12
Clamp-Upper Harness PLN-530057986
...
13
Bolt-Handle PLN-530015786
...
14
Assy-Driveshaft PLN-530096062
...
15
Clamp-Lower Harness PLN-530057987
...
16
Screw PLN-530015940
...
17
Assy-Handle (Incl. 13 & 18) PLN-530058583
...
18
Nut PLN-530091373
...
19
Screw PLN-530016381
...
20
Shoulder Strap PLN-530094417
...
21
Shaft-Flex PLN-530056570
...
xx
Manual - Operator Not Shown PLN-545117550
...
xx
Wrench - Hex (5/32") Not Shown PLN-530031159
...
xx
Attachment - Hanger Not Shown PLN-530150031
...
xx
Decal - Model Warning Not Shown PLN-530150032
...
xx
Decal - Shaft Warning Not Shown PLN-530150181
...
xx
Decal - Pole Saw Warning Not Shown PLN-530150724

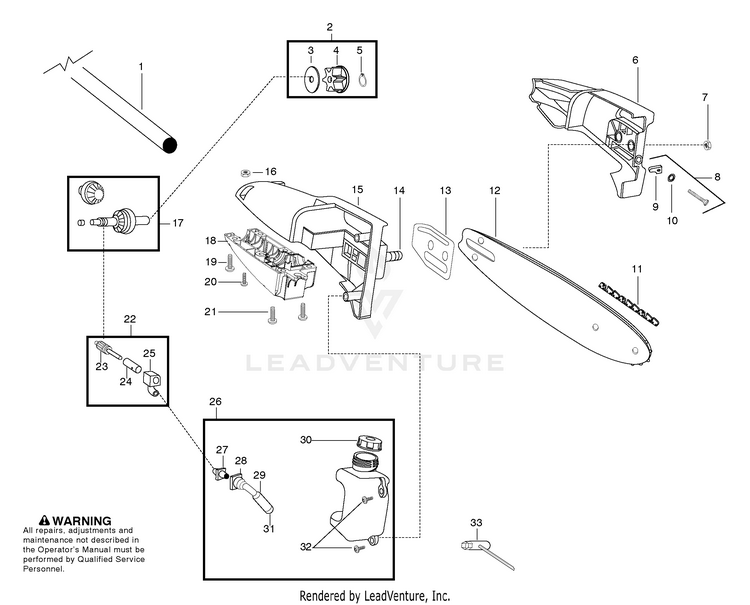

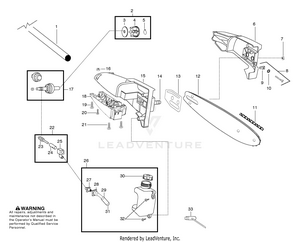

Oil Tanker & Bar Clamp Assembly

...
...
1
Assy. - Driveshaft PLN-530096062
...
2
Kit - Sprocket Assy. (Incl. 3,4,5) PLN-530071647
...
3
Washer PLN-530056521
...
4
Sprocket PLN-530056520
...
5
Retainer - Sprocket PLN-530056563
...
6
Assy - Bar Clamp (Incl. 8) PLN-530057100
...
7
Nut - Bar Mounting PLN-530015917
...
8
Kit - Bar Adjust (Incl. 9,10) PLN-530069611
...
9
Pin - Bar Adjust PLN-530015826
...
10
Retainer - Bar Adjust PLN-530038593
...
11
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501
...
12
Bar - 8" PLN-530044908
...
13
Plate - Bar Pad PLN-530056523
...
14
Bolt - Bar PLN-530016133
...
15
Housing - Upper (Incl. 14) PLN-530056513
...
16
Nut PLN-530016284
...
17
Kit - Gear Assy. PLN-530071646
...
18
Housing - Lower PLN-530056514
...
19
Screw PLN-530016312
...
20
Screw - Alignment PLN-530015805
...
21
Screw PLN-530015886
...
22
Kit - Oil Assy (Incl. 23,24,25,27) PLN-530071645
...
23
Assy. - Gear Plunger PLN-530053764
...
24
Barrel PLN-530053765
...
25
Block - Oil PLN-530056522
...
26
ASSY OIL TANK (Incl. 27,28,29,30,31) PLN-530150266
...
27
Fitting - Oil Line PLN-530056524
...
28
Intake - Oil Line PLN-530021160
...
29
Filter-Oil PLN-530056533
...
30
CAP OIL PLN-530150552
...
31
Filter-Oil PLN-530056533
...
32
Screw PLN-530015843
...
33
Wrench - Bar PLN-530031163
...
...
...
