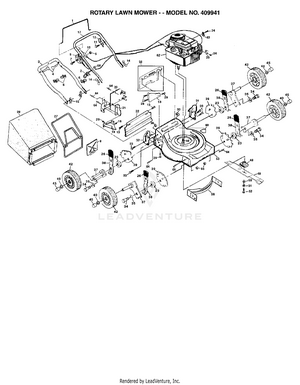

Poulan 409941 (2006-06) Walk Behind Mower

Model: 409941 (2006-06)

Save
 Part Not Listed?Part Not Listed?
product name

PRODUCT COMPLETE

...
...
1
CONTROL BAR PLN-532086902
...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
3
HANDLE.LOWER.BLACK PLN-532157081
...
4
Bolt, Handle 5/16-18 x 1-3/4 PLN-532058714
...
5
NUT 1/4-20 NYLOC PLN-539976978
...
6
WIRE TIE PLN-532007192
...
7
Pan Head Screw 1/4-20 x 2-1/8 (AYP part number) PLN-532086055
...
8
MULCH.PLUG.20RD PLN-532166650
...
9
Throttle Control (AYP part number) PLN-532851463
...
10
CABLE.MZR.51.RT.SP./PU. PLN-532130861
...
11
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
12
BRACKET.UPSTOP PLN-532850733
...
13
HINGE SCREW PLN-532088652
...
14
NUT WING PM PLN-532128638
...
15
HAIRPIN COTTER PLN-532051793
...
16
SCREW.HXTAP.10-24 PLN-532150050
...
17
UPPER HANDLE PLN-532125338
...
18
REAR BAFFLE PLN-532125035
...
19
PLN-532133188
...
20
Back Plate (AYP part number) PLN-532138865
...
21
Side Baffle (AYP part number) PLN-532138866
...
22
SKIRT.REAR.20RD PLN-532188984
...
23
SPACER.HEIGHT.ADJUSTER PLN-532401629
...
24
SCREW.HEX.HEAD.WASHER.10-16 PLN-532083816
...
25
WASHER.ENGINE.BZP PLN-532125078
...
26
KNOB PM PLN-532087877
...
27
FRAME.CATCHER.2.5.BUSHEL PLN-532149555
...
28
PLN-TBD
...
29
SCREW PLN-532054583
...
30
PLN-532054178
...
31
HANDLE BRACKET ASSEMBLY - LEFT PLN-532153030
...
32
HANDLE BRACKET ASSEMBLY-RIGHT PLN-532153029
...
33
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
34
SCREW PLN-532151611
...
35
WASHER.BELLEVILLE PLN-532062335
...
37
ARM.AXLE.ASM.BZP PLN-532145935
...
38
SPRING.SELECTOR.5POS.BZP PLN-532401621
...
39
WHEEL ADJUSTING BRACKET PLN-532700325
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
42
WHEEL.8X1.75.PR.SP.WHITE PLN-532800220
...
45
Hub Cap (AYP part number) PLN-532800090
...
46
BOLT 3/8-16X1-1/8 PLN-532150406
...
48
ADAPTOR.BLADE.7/8 PLN-581547901
...
49
20" Blade (AYP part number) PLN-532145106
...
50
WASHER,HARDEN PLN-532851074
...
51
SLW 3/8 STD PLN-539990118
...
52
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
53
PLN-TBD
...
56
Rear Door Assembly Kit (AYP part number) PLN-532147613
...
58
132198X478 PLN-TBD
...
60
PLN-532141846
...
62
PLN-TBD
...
63
GUIDE CLIP PM PLN-532087930
...
64
RIVET BLIND PLN-532128415
...
65
PLN-532054178
...
66
NUT.CROWNLOCK.1/4 PLN-873680400
...
xx
PLN-TBD
...
xx
152592 PLN-TBD
...
...
...
