Poulan 306A Gas Chain Saw

Model: 306A Gas Chain Saw

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor & Choke Assembly

...
...
1
Screw PLN-530001686
...
2
Crankcase PLN-530010049
...
3
Gasket - Carburetor - Adapter to C/Case Included in Gasket Kit PLN-530019022
...
4
O'Ring - Gas Cap Ass'y. Included in Gasket Kit PLN-530001915
...
5
Screw - Gas Tank Cover PLN-530015009
...
6
Gas Cap Assembly PLN-530010022
...
7
Cover - Fuel Tank PLN-530011016
...
8
Gasket - Fuel Tank Included in Gasket Kit PLN-530019005
...
9
Adapter Assembly PLN-530010004
...
10
Fuel Pick-Up (Model 306A) PLN-530003792
...
11
Gasket - Reed Valve Included in Gasket Kit PLN-530019008
...
12
Fuel Line Pick-Up PLN-530002161
...
13
Reed Valve - Includes PLN-530002383
...
14
Stop Reed PLN-530002580
...
15
Reed PLN-530002579
...
16
Block - Reed PLN-530001368
...
17
Screw 4-40 x 1/8 PLN-530001713
...
18
Gasket -Carburetor to Adapter Included in Gasket Kit PLN-530019023
...
19
Line -Fuel to Carburetor PLN-530021003
...
20
-Grommet -Carb. Screw Included in Gasket Kit PLN-530023006
...
21
Carburetor (See separate page for parts) PLN-530034016
...
22
Cotter Pin - 3/32 x 1/2 PLN-530015154
...
23
Choke Rod PLN-530023413
...
25
Screw- Carburetor Mount PLN-530015002
...
26
Screw -Idle PLN-530010017
...
27
Button-Throttle lock PLN-530023562
...
28
Roll Pin -Throttle Lock PLN-530015102
...
29
Spring - Throttle Lock Button PLN-530015103
...
30
Filter - Air PLN-530023046
...
31
Cover - Air Filter PLN-530011013
...
32
Ring - Retainer PLN-530015003
...
33
Nut - Filter Cover PLN-530015006
...
34
Spring -Idle Screw PLN-530003429
...
35
Fitting - Fuel Tank PLN-530023001
...
37
Screw - Cyl. Shield to Tank PLN-530001643
...
38
Screw - Tank and Handle to C/Case PLN-530015037
...
39
Filter-Fuel (Model 306A) PLN-530034032
...
40
Cotter Pin-C/Case Drain PLN-530001696
...
41
Grommet Included in Gasket Kit PLN-530002594
...
42
Stud - Adapter PLN-530015001
...
45
Tank & Handle Ass'y PLN-530010035
...
46
Grip - Handle PLN-530023052
...
47
Handle Brace - Rear PLN-530023094
...
48
Screw - Brace Mount PLN-530015023
...
49
Screw -Brace Mount PLN-530015037
...
50
Nyliner Included in Gasket Kit PLN-530023067
...
51
Trigger PLN-530023563
...
52
Roll Pin PLN-530015008
...
53
Rod - Throttle PLN-530023048
...
54
Boot - Throttle Included in Gasket Kit PLN-530002597
...
55
Decal (Model 306A) PLN-530023312
...
56
Button - Oiler PLN-530023003
...
57
Push Rod and Bumper PLN-530010043
...
58
Decal - Instruction PLN-530002608
...
59
Plugs PLN-530023179
...
60
Plug Tank & Handle Ass'y PLN-530023174

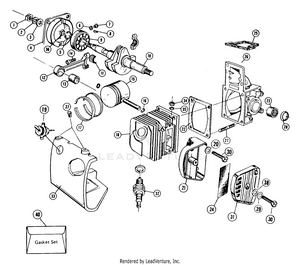

Engine

...
...
1
Nut - Crankshaft PLN-530001733
...
2
Washer - Lock PLN-530001635
...
3
Washer - Flat PLN-530001626
...
4
Bearing Carrier PLN-530010107
...
5
Ring Retaining PLN-530015011
...
6
Washer PLN-530001707
...
7
Screw PLN-530001706
...
8
Key Flywheel PLN-530002595
...
9
Bearing PLN-530003208
...
10
Crankshaft (Model 306A) PLN-530022038
...
11
Needles PLN-530032015
...
12
Connecting Rod Ass'y. Includes: PLN-530010048
...
13
Bearing - Wrist Pin PLN-530003245
...
14
Screw 8-36 x 1/2 Socket Head PLN-530015094
...
15
Piston & Pin PLN-530002576
...
16
Lock Ring PLN-530001611
...
17
Piston Rings PLN-530002577
...
18
Cylinder PLN-530011042
...
19
Switch- Plate and Nut PLN-530002582
...
20
Washer - Muffler PLN-530015099
...
21
Body - Muffler PLN-530011093
...
22
Gasket - Cylinder Included in Gasket Kit PLN-530019001
...
23
Bearing PLN-530032011
...
24
Screen - Muffler PLN-530023292
...
25
Dust Seal Included in Gasket Kit PLN-530019006
...
26
Crankcase Assembly - Includes: PLN-530010049
...
27
Stud - Cylinder PLN-530001704
...
28
Seal Included in Gasket Kit PLN-530001936
...
30
Screw - Muffler PLN-530015098
...
31
Cover - Muffler PLN-530011092
...
32
Spark Plug & Gasket PLN-530003014
...
33
Shroud - Cylinder PLN-530011108
...
34
Nut - Cylinder PLN-530023012
...
35
Washer - Lock PLN-530001677
...
36
Seal - Bearing Carrier PLN-530019042
...
37
Screw- Cylinder Shroud PLN-530001643
...
38
Washer (Place sharp side up) PLN-530015123
...
39
Washer - Ramp Conical PLN-530015159
...
40
Gasket Kit Included in Gasket Kit PLN-530069024

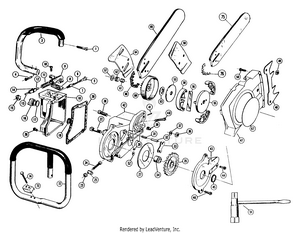

Handlebar & Oil Tank Assembly

...
...
1
Screw - Handlebar Mount PLN-530001648
...
3
Handlebar (Model 306A) PLN-530022009
...
4
Screw - Handlebar Mount PLN-530015062
...
5
Valve - Intake PLN-530023148
...
6
Hose - Valve Intake PLN-530002590
...
7
Oil Pick-Up Weight PLN-530002589
...
8
Gasket - Pump Housing Included in Gasket Kit PLN-530019011
...
9
Pump PLN-530011022
...
10
Screw - Pump Mount PLN-530015114
...
11
Spring - Oil Pump PLN-530001699
...
12
Plunger - Oil Pump PLN-530023069
...
13
Rod - Plunger PLN-530023071
...
14
Quad Ring-Plunger PLN-530019029
...
15
Cap - Oil Pump PLN-530023073
...
16
Plug - Oil Tank PLN-530002592
...
17
O'Ring - Oil Tank Included in Gasket Kit PLN-530001949
...
18
Cover - Oil Tank PLN-530011021
...
19
Gasket - Oil Tank Boss Included in Gasket Kit PLN-530019021
...
20
Gasket - Oil Tank Included in Gasket Kit PLN-530019009
...
22
Screw PLN-530625506
...
23
Nut - Pin Bar Adjustment PLN-530015064
...
24
Screw - Bar Adjustment PLN-530015024
...
25
Pin - Bar Adjustment PLN-530023064
...
26
Screw PLN-530016141
...
27
Disc - Automatic Oiler PLN-530023008
...
29
Quad Ring - Auto. Oiler PLN-530019025
...
31
Spring - Automatic Oiler PLN-530023181
...
32
Piston - Automatic Oiler PLN-530023007
...
33
Lever Rivet Assembly PLN-530010019
...
34
Cam - Automatic Oiling PLN-530023078
...
35
Gear - Automatic Oiler PLN-530023079
...
36
Nut - Guide Mount PLN-1721
...
37
Washer - Guide Mount PLN-530001717
...
38
Bolt - Guide Mount PLN-1684
...
39
Check Valve - Exhaust PLN-530023077
...
40
Screw - Cover to Oil Tank PLN-530015041
...
41
Cotter Pin - Vent PLN-530015108
...
42
Oil Tank Assembly - Includes: Guide Bar Bolts PLN-530010031
...
43
Cover - Automatic Oiler PLN-530011028
...
44
Screw PLN-530016141
...
45
Seal - Automatic Oiler PLN-530019035
...
46
Screw - Automatic Oiler PLN-530625509
...
47
Bar Clamp PLN-530011107
...
48
Spur Optional PLN-53000237
...
49
Nut - Spur Mount Optional PLN-530001725
...
50
Screw - Spur Mount Optional PLN-530015045
...
51
Scrench PLN-530031062
...
52
Washer, Auto Oiler PLN-530015061
...
53
Washer - Clutch PLN-530023472
...
55
Spider - Clutch PLN-530022089
...
56
Spring - Clutch PLN-530023473
...
57
Thrust Washer - Silver PLN-530015056
...
58
Shoe - Clutch PLN-530023469
...
59
Plate - Outer Guide Bar PLN-530002603
...
60
Drum - Clutch PLN-530010007
...
61
Race - Clutch Drum PLN-530032003
...
62
Bearing - Clutch PLN-530032002
...
63
Thrust Washer - Black PLN-530015047
...
64
Plate - Inner Guide Bar PLN-530002602
...
65
17" Bar - Hard Tipped (Opt.) PLN-95204480
...
65
21" Bar - Hard Tipped (Opt.) PLN-530004483
...
65
25" Bar - Hard Tipped (Opt.) PLN-530004481
...
66
Chain - P72-61, for 17" H.T. Bar PLN-952051089
...
66
Chain - P72-72, for 21" H.T. Bar PLN-51095
...
66
Chain - P72-82, for 25" H.T. Bar PLN-51091
...
66
File & Holder (Accessory) PLN-5536
...
67
Decal - Bar Clamp (Mod. 306A) PLN-530023313
...
69
Washer - Auto. Oiler PLN-530015061
...
72
Full Wrap Handlebar (Optional) PLN-22106
...
73
Spacer (Optional) PLN-530011234
...
74
Screw -Handlebar (Optional) PLN-530015002
...
75
S.N. Bar 16" PLN-530044094
...
76
Chain 16" S.N. Bar P72-60 PLN-51106

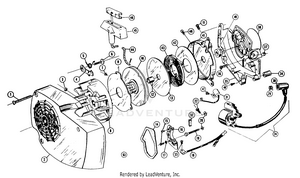

Starter Assembly

...
...
1
Screw 10-24 x 2-7/16 PLN-530015007
...
2
Housing - Fan PLN-530011017
...
3
Nut - Starter Dog PLN-530001720
...
4
Dog - Starter PLN-530022021
...
5
Spring - Starter Dog PLN-530042017
...
6
Bolt - Starter Dog PLN-530015005
...
7
Screw-Starter PLN-530015004
...
8
Flywheel PLN-530039002
...
9
Cover - Starter PLN-530042015
...
10
Starter Pulley Ass'y. w/Bearing PLN-530010063
...
11
Screw PLN-530015038
...
12
Bearing -Starter Pulley PLN-530032001
...
13
Disc - Starter - Top PLN-530042016
...
14
Gasket - Points Cover Included in Gasket Kit PLN-530019041
...
15
Screws PLN-530015029
...
16
Breaker Assembly PLN-530039004
...
17
Washer No. 8 PLN-530015027
...
18
Lead - To Coil PLN-530039019
...
19
Screw PLN-530015041
...
20
Washer No. 8 PLN-530001520
...
22
Screw-Coil to Brg. Carrier PLN-530015038
...
24
Coil - Terminal Ass'y. Includes: Lamination - Retainer & Wire Ass'y. PLN-530039006
...
29
Spark Plug Boot PLN-507475326
...
30
Boot-Spark Plug Wire PLN-530003934
...
31
Condenser PLN-530039005
...
32
Wick - Oiler Included in Gasket Kit PLN-530022036
...
33
Screw - Breaker Lead PLN-530015048
...
34
Spacer PLN-530023107
...
35
Bearing Carrier - w/Rope Bushing PLN-530010107
...
36
Screw - Carrier Mount PLN-530015042
...
37
Bushing - Starter Rope Included in Gasket Kit PLN-530023022
...
38
O'Ring Included in Gasket Kit PLN-530019004
...
40
Screw - Starter Mount PLN-530015037
...
41
Starter Housing Includes Pin PLN-530011172
...
42
Disc - Starter Bottom PLN-530022085
...
43
Spring - Recoil PLN-530042012
...
44
Rope - Assembly PLN-530010062
...
45
Handle - Starter PLN-530004266
...
46
Anchor - Handle PLN-530004268
...
47
Screw - Condenser Mount PLN-530015029
...
48
Screw - Cyl. Shroud to Bearing Carrier PLN-530015038
...
49
Seal Included in Gasket Kit PLN-530019042
...
...
...
