Poulan 2600 Gas Trimmer

Model: 2600 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

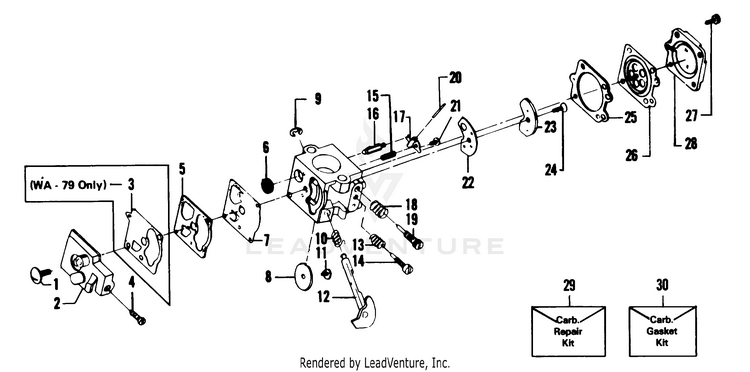

CARBURETORS WA-149 &-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA - 79 PLN-530035154
...
2
WA - 149 (#35183) PLN-530035191
...
3
Diaphragm - Pump (WA - 79 Only - PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
WA - 79 PLN-530035009
...
5
GASKET PLN-504130906
...
6
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
7
WA - 79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
12
Shaft Assembly - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
16
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
17
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw - Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
WA - 79 PLN-530035144
...
29
WA - 149 (35183) PLN-530035185
...
30
WA - 79 PLN-530035145
...
30
Gasket Diaphragm Kit PLN-530069844

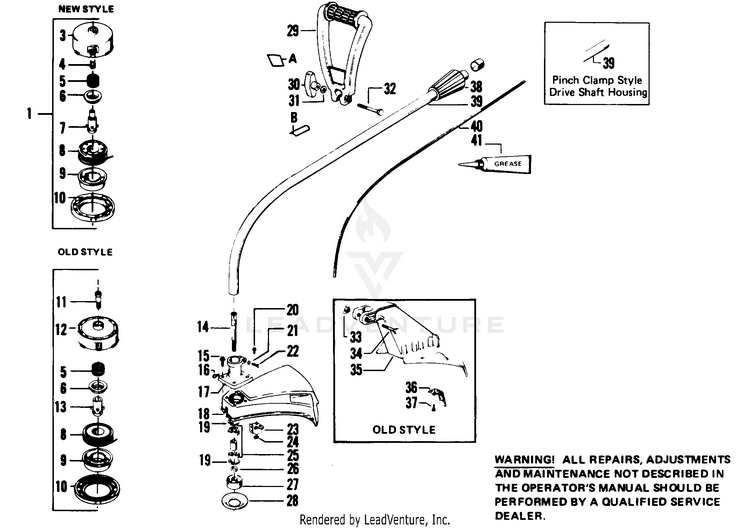

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y - New Style (Inc.3 -10) PLN-530093894
...
3
Hub PLN-530071295
...
4
Line Saver PLN-530093898
...
5
Spring PLN-530340007
...
6
Cap Spring PLN-530328929
...
7
Drive Gear - New Style PLN-530093897
...
8
Spool w/Line PLN-952701523
...
9
Tap Button PLN-530401183
...
10
Cover PLN-530092133
...
11
Bolt - Drive Adaptor - Old Style PLN-530092064
...
12
Hub w/Line Saver - Old Style PLN-530092131
...
13
Drive Gear - Old Style PLN-530092069
...
14
Shaft - Arbor PLN-530093846
...
15
Screw PLN-530016107
...
16
Screw - #5/16 - Self Tapping PLN-530015518
...
17
Bearing Housing Ass'y (Inc.'s 14, 19, 21, 22, 25, 26 & 27) PLN-530093214
...
18
Model 2600 - 14" PLN-530092362
...
18
Model 2600,2610 - 17" PLN-530093885
...
18
Model 2610 - 18" PLN-530093886
...
19
Retainer - Bearing PLN-530091783
...
20
Screw - #10 - 24 x 5/8" - Line Limiter PLN-530015037
...
21
Washer - #1/4 Int. Tooth Lock PLN-530092227
...
22
Screw - #1/4 - 20 x 1" Pinch Clamp PLN-530625509
...
24
Nut - #10 - 24" - Locking PLN-530015064
...
25
Bearing & Spacer Kit PLN-530069086
...
26
Washer - 3/8" - Dust Cup PLN-530092216
...
27
Dust Cup PLN-530092359
...
28
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
29
Model 2600 PLN-530093729
...
29
Model 2610 PLN-530092063
...
30
Knob - #1/4 - 20" - Model 2610 PLN-530092059
...
31
Washer - 1/4" Flat PLN-530092062
...
32
Hex Bolt - #1/4 - 20 x 1-1/2" PLN-530092061
...
33
Wing Nut - Shield 14" PLN-530092049
...
34
Hex Bolt - #1/4 - 20 x 1-1/2" - Shield 14" PLN-530092051
...
35
Model 2600 - 14" PLN-530091979
...
36
Line Limiter - Shield 14" PLN-530092046
...
37
Screw - Line Limiter (14") to Shield PLN-530092045
...
38
Collar Nut PLN-530024406
...
39
Model 2600 (34") PLN-530093727
...
39
Model 2610 (41") PLN-530093728
...
39
Model 2600 (34") PLN-530093858
...
39
Model 2610 (41") PLN-530093726
...
40
Model 2600 (34") PLN-530092054
...
40
Model 2610 (41") PLN-530092261
...
41
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Warning Label - Assist Handle PLN-530024572
...
B
Decal - Blade Warning PLN-530024226
...
xx
Tap-N-Go Repair Kit for Old Style (Inc.5,6, 9,10,13) Not Shown. PLN-952701569

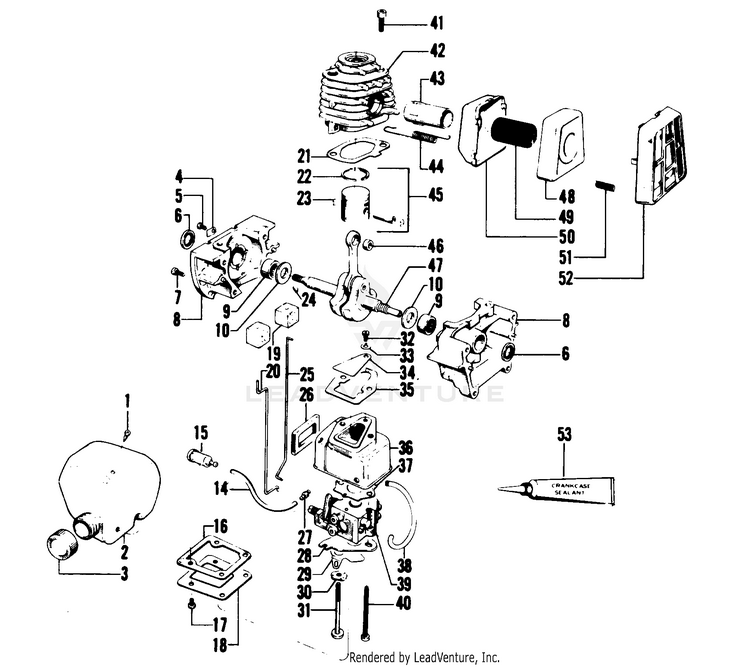

POWER UNIT

...
...
1
Check Valve - Duck Bill PLN-530026119
...
2
Fuel Tank Assembly (Inc.1,3,14,15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp - Choke Wire PLN-530024651
...
5
Screw - #8 - 32 x 5/16" - Pan Hd. - Choke Rod Clamp PLN-530015004
...
6
Seal - Crankcase PLN-530019059
...
7
Screw - Crankcase - #10 - 24 x 5/8" PLN-530015168
...
8
Crankcase Assembly (Inc.4, 9 4 Qty. 4 of #7) PLN-530010316
...
9
Crankshaft Bearing PLN-530032029
...
10
Washer - Thrust - Crankcase PLN-530015351
...
14
Fuel Line PLN-530021042
...
15
Fuel Pick-up Ass'y PLN-530091878
...
16
Gasket - Carburetor Case Cover PLN-530019112
...
17
Screw - #8 - 18 x 9/16" - Pan Hd. - Carburetor Case Cover PLN-530015235
...
19
Boot - Throttle - Choke Wire PLN-530023373
...
21
Engine Gasket Kit PLN-530069219
...
22
Ring - Piston PLN-530024302
...
23
Retainer - Wrist Pin PLN-530015162
...
24
Key - Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal - Carburetor Case PLN-530019105
...
27
Fuel Line Fitting PLN-530025472
...
29
Choke Shutter PLN-530024558
...
30
Washer - Wave PLN-530015254
...
31
Screw - #10 - 24 x 2-1/8" - Fil. Hd. - Carburetor Shoulder PLN-530015404
...
32
Screw - #6 - 19 x 5/16" - Pan Hd - Reed Valve PLN-530015241
...
33
Washer - Reed Valve Screw PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gakset - Carburetor Case to Crankcase PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Gasket - Carburetor PLN-530019115
...
38
Fuel Line Carburetor PLN-530021043
...
39
Carburetor - See Service Ref. 2. PLN-530035183
...
40
Screw - #10 - 24 x 1-7/8" - Fil. Hd. - Carburetor PLN-530015379
...
41
Screw - #1/4 - 20 x 3/4" - Hex Socket Hd. Cylinder PLN-530015239
...
42
Cylinder PLN-530012070
...
43
Diffuser - Muffler PLN-530024363
...
44
Muffler Spring PLN-530036409
...
45
Piston Assembly (Inc.22,23,Pin) PLN-530022198
...
46
Bearing - Wrist Pin PLN-530032057
...
47
Crankshaft & Rod Assembly PLN-530022202
...
48
Cover - Muffler PLN-530024361
...
49
Screen - Spark Arresting PLN-530024364
...
50
Body - Muffler PLN-530024362
...
51
Spring - Muffler Guard PLN-530024932
...
52
Guard - Muffler PLN-530024855
...
53
Sealant - Crankcase (Not Supplied with Unit) PLN-530030054

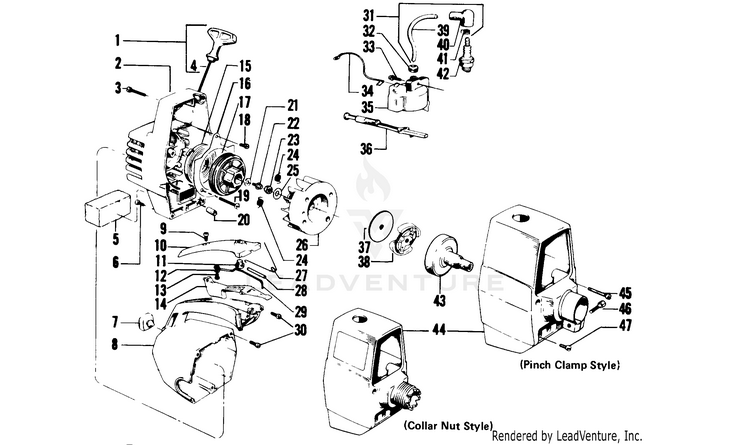

STARTER & SHROUDS

...
...
2
Fan Housing (Inc. 16, 18, 19, 20 & 28) PLN-530069178
...
3
Screw - #10 - 24 x 1-1/2" Fan Housing - Top PLN-530015376
...
4
Rope (3.5 ft.) PLN-530022290
...
5
Air Filter PLN-952701568
...
6
Screw - #10 - 24 x 5/8" Fan Housing - Bottom PLN-530015168
...
7
Bumper - Fuel Tank Housing PLN-530024436
...
8
Handle and Fuel Tank Housing PLN-530024656
...
9
Screw - #8 - 16 x 3/4" - Pan Hd. Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Button - Kill Switch PLN-530026679
...
12
Washer - Kill Switch PLN-530015412
...
13
Screw - #8 - 16 x 3/8" - Pan Head - Kill Switch PLN-530015407
...
14
Trigger - Throttle PLN-530024365
...
16
Air Baffle PLN-530026035
...
18
Screw - #10 x 1/4" - Fil. Hd. - Air Baffle PLN-530015373
...
19
Screw - #10 - 24 x 1-3/16" - Fil. Hd. PLN-530015305
...
20
Spacer PLN-530026122
...
21
Washer #10 - Starter Pulley PLN-530015123
...
22
Screw - #10 x 3/4" - Hex Washer Hd. - Starter Pulley PLN-530015479
...
23
Nut - Flywheel - #5/16 x 24" - Fil. Hd. PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer - Flywheel PLN-530015127
...
26
Flywheel Assembly (Inc. 24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Insulation - Switch Spring PLN-530021036
...
29
Spring - Kill Switch PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
31
High Tension Lead Assembly (Inc. 39, 40 & 41) PLN-502039103
...
32
Grommet - Plug Wire PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire - Switch PLN-530024158
...
35
Kit - Ignition Module PLN-530069181
...
36
Knob - Choke PLN-530024303
...
37
Kit - Clutch Washer (3/8" Flat) - See Service Ref. 6. PLN-530069196
...
38
Kit - Clutch Ass'y - See Service Ref. 1 & 6. PLN-530069194
...
39
High Tension Lead Wire PLN-530039082
...
40
Boot - Spark Plug PLN-530003934
...
41
Spark Plug Boot PLN-507475326
...
42
Spark Plug PLN-530030077
...
43
Coupling and Bearing Assembly PLN-530010797
...
44
Pinch Clamp Style PLN-530011778
...
44
Screw Collar Style PLN-530011641
...
45
Screw - #10 - 24 x 1-1/3" - Fil. Hd. - Shroud (Top) PLN-530015376
...
46
Bolt - Pinch Clamp PLN-530093802
...
47
Screw - #10 - 24 x 5/8" - Fil. Hd. - Shroud (Bottom) PLN-530015168
...
...
...
