product name

Poulan 25HHT (2010-06_US_CAN) Hedge Trimmer

Model: 25HHT (2010-06_US_CAN)

Save
 Part Not Listed?Part Not Listed?
product name

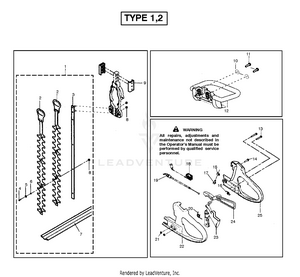

CUTTING EQUIPMENT

...
...
1
BLADE KIT ASSY ALSO INCLUDES ITEMS FROM OTHER PAGES. 2 3 4-8 PLN-530071809
...
2
Cutter B PLN-91054118
...
3
PLN-000000000
...
4
Step Bolt PLN-31029101
...
5
CONICAL SPRING WASHER KAAZ PLN-545145435
...
6
CUTTER WASHER KAAZ PLN-545145436
...
7
BLADE PLN-530057997
...
8
U-HEXAGON NUT FLANGE KAAZ PLN-545145429
...
9
PLN-000000000
...
10
WASHER PLN-530016404
...
11
SCREW-10-24X1-3/8-TAPTI PLN-530015769
...
12
HANDLE PLN-530057731
...
13
SCREW SOCKET KAAZ PLN-545145421
...
14
SCREW TAPPING KAAZ PLN-545145424
...
15
Guide PLN-51104147
...
16
SPRING KAAZ PLN-545145438
...
17
Half Gas Lever PLN-36092110
...
18
STOP SWITCH ASSY KAAZ PLN-545145439
...
19
Throttle Wire PLN-91001324
...
20
SPRING KAAZ PLN-545145437
...
21
U-HEX NUT KAAZ PLN-545145428
...
22
Handle-Rear PLN-51106137
...
23
PLN-000000000
...
24
PLN-000000000
...
25
Handle -Rear PLN-51106138

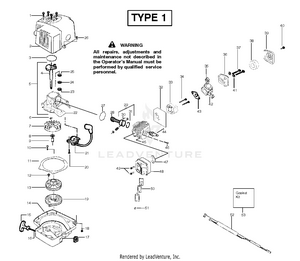

ENGINE

...
...
1
SCREW PLN-530016386
...
2
ASSY SHROUD/HEAT SHIELD PLN-530058799
...
3
GASKET KIT KIT PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
CRANKCASE . 4 6 22 PLN-530071681
...
6
RETAINING RING PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
WASHER FLAT PLN-530015828
...
9
SPACER PLN-530055729
...
10
SCREW-10-16 X 1/2 HI-LO PLN-530015496
...
11
PLATE-BAFFLE PLN-530055681
...
12
SCREW SEMS TOOTHED WASHER PLN-530016392
...
13
STARTER PULLEY . 12 PLN-530069353
...
14
ASSY FAN HSG W/ EYELET PLN-530058801
...
15
HANDLE-STARTER PLN-530027569
...
16
KIT-ROPE PLN-530069232
...
17
GROMMET PLN-530019182
...
18
SCREW F /HSG TO SHRD PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
SCREW PLN-530016357
...
21
IGNITION MODULE PLN-530054137
...
22
CRANKCASE . 23 24 25 PLN-530012510
...
23
OUTER BEARING PLN-530055728
...
24
SEAL PLN-530019264
...
25
BEARING PLN-530032125
...
26
SCREW PLN-530015934
...
27
GASKET KIT KIT PLN-530071486
...
28
CONNECTING ROD ASSY PLN-530049817
...
29
PISTON . 30 31 PLN-530071476
...
30
WRIST PIN RET. PLN-530015162
...
31
PISTON RING PLN-545154009
...
32
GASKET KIT KIT PLN-530071486
...
33
ADAPTER PLN-530057634
...
34
SCREW PLN-530016441
...
35
CHOKE CONTROL PLN-530071718
...
36
AIR BOX PLN-530055680
...
37
SCREW PLN-530016429
...
38
AIR FILTER FOAM PLN-530047932
...
39
AIR FILTER COVER PLN-530055679
...
40
SCREW PLN-530015957
...
41
Washer PLN-530015123
...
42
CARBURETOR ASSY (C1U-W13A) C1U--W13A PLN-530071633
...
43
GASKET KIT PLN-530071486
...
44
PLUG-SPARK (RCJ-6Y) RCJ--6Y PLN-952030249
...
45
CYLINDER PLN-530012553
...
46
SCREW PLN-530015953
...
47
GASKET KIT KIT PLN-530071486
...
48
. 47 49 50 51 PLN-000000000
...
49
SCREW MUFFLER PLN-530016338
...
50
PARTITION PLN-530071544
...
51
SCREW-6-19X5/16PLAST PA . 3 27 32 43 47 PLN-530015241
...
52
LEAD WIRE PLN-530057728
...
53
GASKET KIT PLN-530071486

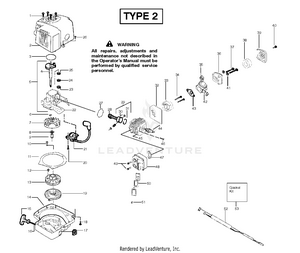

ENGINE

...
...
1
SCREW PLN-530016386
...
2
ASSY SHROUD/HEAT SHIELD PLN-530058799
...
3
GASKET KIT KIT PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
CRANKCASE . 4 6 22 PLN-530071681
...
6
RETAINING RING PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
WASHER FLAT PLN-530015828
...
9
SPACER PLN-530055729
...
10
SCREW-10-16 X 1/2 HI-LO PLN-530015496
...
11
PLATE-BAFFLE PLN-530055681
...
12
SCREW SEMS TOOTHED WASHER PLN-530016392
...
13
STARTER PULLEY . 12 PLN-530069353
...
14
ASSY FAN HSG W/ EYELET PLN-530058801
...
15
HANDLE-STARTER PLN-530027569
...
16
KIT-ROPE PLN-530069232
...
17
GROMMET PLN-530019182
...
18
SCREW F /HSG TO SHRD PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
SCREW PLN-530016357
...
21
IGNITION MODULE PLN-530054137
...
22
CRANKCASE . 23 24 25 PLN-530012510
...
23
OUTER BEARING PLN-530055728
...
24
SEAL PLN-530019264
...
25
BEARING PLN-530032125
...
26
SCREW PLN-530015934
...
27
GASKET KIT KIT PLN-530071486
...
28
CONNECTING ROD ASSY PLN-530049817
...
29
PISTON . 30 31 PLN-530071476
...
30
WRIST PIN RET. PLN-530015162
...
31
PISTON RING PLN-545154009
...
32
GASKET KIT KIT PLN-530071486
...
33
ADAPTER PLN-530057634
...
34
SCREW PLN-530016309
...
35
CHOKE CONTROL PLN-530071718
...
36
AIR BOX PLN-530055680
...
37
SCREW PLN-530016429
...
38
AIR FILTER FOAM PLN-530047932
...
39
AIR FILTER COVER PLN-530055679
...
40
SCREW PLN-530015957
...
41
Washer PLN-530015123
...
42
CARBURETOR ASSY (C1U-W13A) C1U--W13A PLN-530071633
...
43
GASKET KIT PLN-530071486
...
44
PLUG-SPARK (RCJ-6Y) RCJ--6Y PLN-952030249
...
45
CYLINDER PLN-530012553
...
46
SCREW PLN-530015953
...
47
GASKET KIT KIT PLN-530071486
...
48
KIT . 47 49 50 51 PLN-530071682
...
49
SCREW MUFFLER PLN-530016338
...
50
PARTITION PLN-530071544
...
51
SCREW-6-19X5/16PLAST PA . 3 27 32 43 47 PLN-530015241
...
52
LEAD WIRE PLN-530057728
...
53
GASKET KIT PLN-530071486

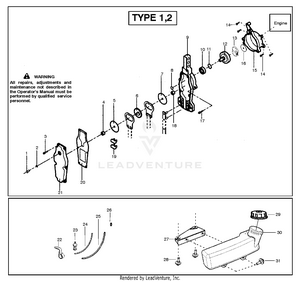

FUEL TANK

...
...
1
PLUG PLN-530016423
...
2
PLN-000000000
...
3
SOCKET SCREW FLANGE KAAZ PLN-545145422
...
4
BUSHING KAAZ PLN-545145440
...
5
PLN-000000000
...
6
GEAR PLN-545145441
...
7
PLN-000000000
...
8
C-SNAPPING FOR SHAFT KAAZ PLN-545145431
...
9
Cam Case PLN-51068108
...
10
BEARING PLN-545145432
...
11
C-SNAPPING KAAZ PLN-545145430
...
12
PLN-000000000
...
13
CLUTCH ASSY PLN-530057740
...
14
SCREW-10-14 X 13/16 (PL PLN-530015886
...
15
Engine Base PLN-51070131
...
16
FRICTION DISC,CLUTCH 36/41 PLN-530015611
...
17
SOCKET SCREW FLANGE KAAZ PLN-545145423
...
18
BUSHING KAAZ PLN-545145440
...
19
FELT PACKING KAAZ PLN-545145433
...
20
PACKING KAAZ PLN-545145434
...
21
Cam Case Cover PLN-51069105
...
22
CLIP PLN-530016438
...
23
FUEL PICK-UP ASSY PLN-530095646
...
24
KIT-LINE SMALL PLN-530069247
...
25
LINE KIT LARGE PLN-530069216
...
26
FUEL LINE FITTING PLN-530023877
...
27
BRACKET PLN-530057738
...
28
SCREW FUEL TANK RETAINER PLN-530016445
...
29
Assy - Fuel Cap w/retainer PLN-530057973
...
30
ASSY FUEL TANK (FL) . 23 24 25 26 PLN-545104302
...
31
RETAINER PLN-530016379
...
...
...
