product name

Poulan 2550SE Gas Saw Type 2, Silver Edition, Woodmaster

Model: 2550SE Gas Saw Type 2

Save
 Part Not Listed?Part Not Listed?
product name

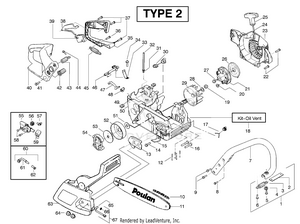

Chassis & Handle Assembly Type 2

...
...
1
Assy.-Isolator PLN-530059667
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530015940
...
9
Screw PLN-530015814
...
10
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
11
Bar - 18" PLN-952044418
...
12
Screw PLN-530016132
...
13
Plate-Bar Mount. PLN-530038238
...
14
Screw PLN-530015814
...
15
Chain Catcher PLN-530029850
...
16
Bolt-Bar PLN-530016133
...
17
Assy-Oil Cap PLN-530057236
...
18
Kit-Oil Vent PLN-530071666
...
19
Nut-Flywheel PLN-530016134
...
20
Screw PLN-530016080
...
21
STARTER PULLEY PLN-545034301
...
22
Screw PLN-530015892
...
23
Housing-Fan PLN-530057444
...
24
Kit - Rope PLN-530069232
...
25
Handle-Starter PLN-530056402
...
26
SPRING STARTER PLN-545008015
...
27
Screw PLN-530015920
...
28
Washer-Flywheel PLN-530015127
...
29
FLYWHEEL ASSY PLN-530047534
...
30
FUEL CAP ASSY PLN-580940901
...
31
Fitting-Fuel Line PLN-530023877
...
32
Kit-Fuel Line (Large) PLN-530069216
...
33
Spring-Switch PLN-530016149
...
34
Screw PLN-530015775
...
35
Cover-Rear Handle PLN-530047581
...
36
Screw PLN-530015886
...
37
Screw PLN-530015906
...
38
Throttle Lockout PLN-530036098
...
39
Trigger-Throttle PLN-530036097
...
40
Handle - Rear PLN-530047582
...
43
SPRING (Upper) PLN-545006036
...
44
Screw PLN-530015875
...
45
SPRING PLN-545006036
...
46
Lever-Switch PLN-530057473
...
47
Lever-Choke PLN-530057474
...
48
Grommet-Knob PLN-530049005
...
49
Nut-"U"-Type PLN-530015922
...
50
Assy-Chassis fuel lines and caps PLN-530058730
...
51
Washer-Thrust PLN-530015907
...
52
Assy.-Clutch Drum w/bearing PLN-530047061
...
53
Washer-Clutch PLN-530015611
...
54
Assy. Clutch PLN-530014949
...
55
Kit - Oil Pump (incl. 56,57,59) PLN-530071259
...
56
Gear-Worm Spring PLN-530037820
...
57
Elbow-Oil Pickup PLN-530049477
...
58
SCREW 6-19X.437 PLN-545227101
...
59
Seal Block PLN-530019206
...
60
Assy-Oil Pick-up (Incl. 61,62) PLN-530047663
...
61
Pick-up Oiler PLN-530038373
...
62
Filter-Oil PLN-530056533
...
63
Assy.-Chain Brake PLN-530057447
...
64
Nut-Bar Mounting PLN-530015917
...
65
Pin-Bar Adjust PLN-530015826
...
66
Retainer PLN-530038593
...
67
Kit-Bar Adjusting (incl. # 65,66) PLN-530069611

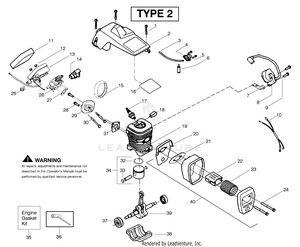

Engine Assembly Type 2

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 16) PLN-530055638
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb (Incl.#5) PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-Up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530057475
...
11
Foam- Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Assy- Air Box PLN-530057702
...
14
Grommet-Carb Adjust PLN-530035526
...
15
Seal-Carb Adapter PLN-530054144
...
16
Reflector-Heat PLN-530055698
...
17
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
18
Clip-High Tension Lead PLN-530016136
...
19
Cylinder PLN-530012550
...
20
Backplate-Muffler PLN-530049870
...
21
Gasket-Muffler (Kit) PLN-530069608
...
22
Diffuser-Muffler PLN-530037813
...
23
Screen-Spark PLN-530036103
...
24
Bolt-Muffler PLN-530016132
...
25
Grommet-Throttle Cable PLN-530047631
...
26
Kit-Carburetor Walbro (WT-89) (Incl. Grommet) PLN-545081885
...
27
Gasket-Carb. (Kit) PLN-530069608
...
28
Screw PLN-530016386
...
29
Carb. Adapter PLN-530049700
...
30
Screw PLN-530016187
...
31
Gasket- Adaptor (Kit) PLN-530069608
...
32
Ring-Piston PLN-545160401
...
33
Retainer-Piston Pin PLN-530015697
...
34
Kit-Piston (Incl. 32 & 33) PLN-530071408
...
35
Kit-Engine Gasket (Incl. 21, 27 & 31) PLN-530069608
...
36
Wrench-Bar PLN-530031163
...
37
Assy-Seal & Bearing PLN-530056363
...
38
Cap-Crankcase PLN-530037935
...
39
CRANKSHAFT ASSY PLN-545113101
...
40
MUFFLER (Incl. 20-24) PLN-530071904
...
40
Manual Not Shown PLN-530164650
...
40
Decal-Warning Not Shown PLN-530057757
...
40
Decal-Start-Inst. Not Shown PLN-530059229

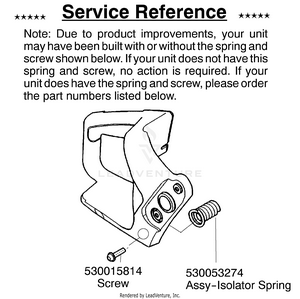

Service Reference

...
...
530015814
Screw PLN-530015814
...
530053274
SPRING PLN-545006036
...
...
...
