product name

Poulan 2550SE Gas Saw Type 1, Woodmaster, Silver Edition

Model: 2550SE Gas Saw Type 1

Save
 Part Not Listed?Part Not Listed?
product name

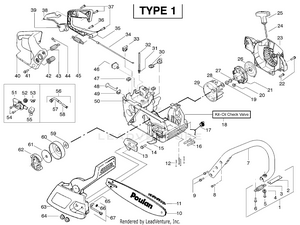

Chassis & Handle Assembly Type 1

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530015940
...
9
Screw PLN-530015814
...
10
Bar-18" PLN-952044418
...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
12
Screw PLN-530016132
...
13
Plate-Bar Mounting PLN-530038238
...
14
Screw PLN-530015814
...
15
Chain Catcher PLN-530029850
...
16
Bolt-Bar PLN-530016133
...
17
OIL TANK CAP PLN-530057236
...
18
Kit-Oil Check Valve PLN-530071666
...
19
Nut- Flywheel PLN-530016134
...
20
Screw PLN-530016080
...
21
STARTER PULLEY PLN-545034301
...
22
Screw PLN-530015892
...
23
Fan Housing PLN-530057444
...
24
Kit - Rope PLN-530069232
...
25
Handle-Starter PLN-530056402
...
26
SPRING STARTER PLN-545008015
...
27
Screw PLN-530015920
...
28
Washer- Flywheel PLN-530015127
...
29
FLYWHEEL ASSY PLN-530047534
...
30
FUEL CAP ASSY PLN-580940901
...
31
Fitting- Fuel Line PLN-530023877
...
32
Kit-Fuel Line (Large) PLN-530069216
...
33
Grommet-Cable PLN-530047631
...
34
Cable-Throttle PLN-530047602
...
35
Cover-Rear Handle PLN-530047581
...
36
Screw PLN-530015886
...
37
Screw PLN-530015906
...
38
Throttle Lockout PLN-530036098
...
39
Trigger-Throttle PLN-530036097
...
40
Handle - Rear PLN-530047582
...
41
Screw PLN-530015814
...
42
SPRING PLN-545006036
...
43
SPRING (Upper) PLN-545006036
...
44
Screw PLN-530015875
...
45
SPRING PLN-545006036
...
46
Kit-Switch PLN-530069572
...
47
Nut- "U"-Type PLN-530015922
...
48
Knob-Choke PLN-530047605
...
49
Grommet-Knob PLN-530049005
...
50
Assy-Chassis (Incl. 16,17,30 filter & fuel lines) PLN-530056597
...
51
Kit - Oil Pump (incl. 52,53,55) PLN-530071259
...
52
Gear-Worm Spring PLN-530037820
...
53
Elbow-Oil Pickup PLN-530049477
...
54
SCREW 6-19X.437 PLN-545227101
...
55
Seal Block PLN-530019206
...
56
Assy-Oil Pick-up (Incl. 57,58) PLN-530047663
...
57
Pick-up Oiler PLN-530038373
...
58
Oil Filter PLN-530056533
...
59
Washer-Thrust PLN-530015907
...
60
Assy.-Clutch Drum w/bearing PLN-530047061
...
61
Washer-Clutch PLN-530015611
...
62
Assy. Clutch PLN-530014949
...
63
Assy-Chain Brake PLN-530057447
...
64
Nut-Bar Mounting PLN-530015917
...
65
Pin-Bar Adjust PLN-530015826
...
66
Retainer-Bar Adjust PLN-530038593
...
67
Kit-Bar Adj. (incl.65,66) PLN-530069611

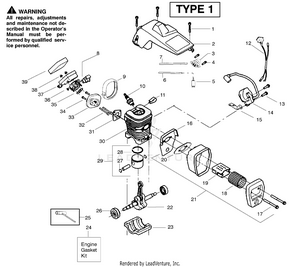

Engine Assembly Type 1

...
...
1
Screw PLN-530016153
...
2
Shield-Cylinder PLN-530055638
...
3
Kit-Purge Bulb PLN-530071835
...
4
Screw PLN-530015780
...
5
Assy-Fuel Pick-Up PLN-530095646
...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247
...
7
Kit-Line Purge/Tank (large line) PLN-530069216
...
8
Grommet-Carb Adjust. PLN-530035526
...
9
Seal-Carb Adapter PLN-530054144
...
10
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
11
Clip-High Tension Lead PLN-530016136
...
12
Assy-Wire Harness (includes switch) PLN-530049117
...
13
Screw PLN-530015814
...
14
Module-Ignition PLN-530039198
...
15
Strap-Ground PLN-530047442
...
16
Back Plate-Muffler PLN-530049870
...
17
Screw PLN-530016132
...
18
Screen-Spark PLN-530036103
...
19
Diffuser-Muffler PLN-530037813
...
20
Gasket-Muffler (Kit) PLN-530069608
...
21
MUFFLER (Incl. 16-20) PLN-530071904
...
22
CRANKSHAFT ASSY PLN-545113101
...
23
Cap-Crankcase PLN-530037935
...
24
Kit-Engine Gasket (incl. 20,31,35) PLN-530069608
...
25
Scrench PLN-530031163
...
26
Assy-Seal & Bearing PLN-530056363
...
27
Retainer - Piston Pin PLN-530015697
...
28
Ring-Piston PLN-545160401
...
29
Kit-Piston (Incl. 27,28) PLN-530071408
...
30
Cylinder PLN-530012550
...
31
Gasket-Adapter (Kit) PLN-530069608
...
32
Screw PLN-530016187
...
33
Adapter-Carb. PLN-530049700
...
34
Screw PLN-530016386
...
35
Carb. Gasket (Kit) PLN-530069608
...
36
Kit-Carburetor (WT-625) PLN-530071621
...
37
Housing-Air Filter PLN-530047604
...
38
Nut PLN-530016101
...
39
Air Filter - Foam PLN-530037793
...
39
Manual Not Shown PLN-530163693
...
39
Decal-Warning Not Shown PLN-530057757

Service Reference

...
...
530015814
Screw PLN-530015814
...
530053274
SPRING PLN-545006036
...
...
...
