Poulan 2100 Gas Saw

Model: 2100 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

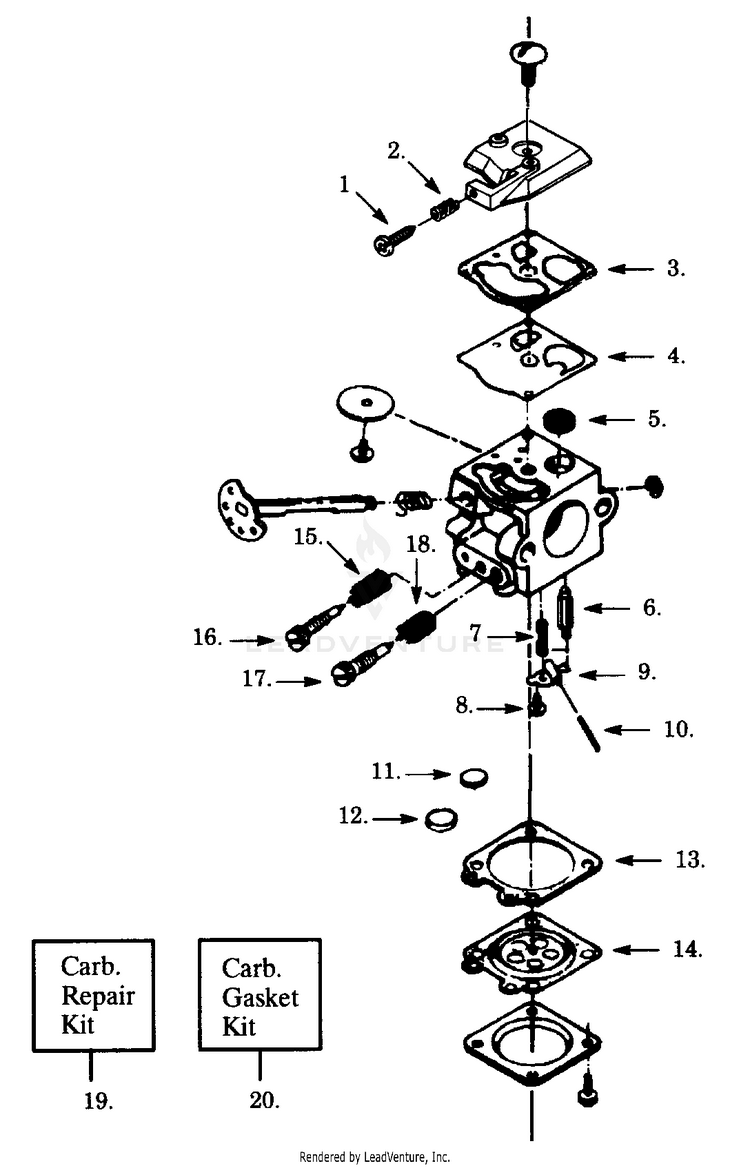

CARBURETOR WT-247

...
...
1
Idle Speed Adj. Screw PLN-530035203
...
2
Idle Speed Adj. Spring PLN-530035339
...
3
GASKET PLN-504130906
...
4
PUMP DIAPHRAGM PLN-504130807
...
5
Fuel Inlet Screen WT-3 PLN-530035172
...
xx
Fuel Inlet Screen WT20/247 PLN-530035027
...
6
Needle PLN-503117001
...
7
Metering Lever Spring PLN-530035188
...
8
Metering Lever Pin Screw PLN-530035016
...
9
Metering Lever PLN-505520127
...
10
Pin PLN-505520125
...
11
Welch Plug-5/16 Dia. PLN-530035162
...
12
Welchg Plug-1/4 Dia. PLN-530035163
...
13
Metering Diaphragm Gasket PLN-530035165
...
14
DIAPHRAGM PLN-503896701
...
15
Low Speed Mixture Needle Spring PLN-530035023
...
16
Low Speed Mixture Needle PLN-530035171
...
17
High Speed Mixture Needle PLN-530035169
...
18
High Speed Mixture Needle Spring PLN-530035167
...
19
Carb. Repair Kit (Incl. 3-14) PLN-530035161
...
20
Gasket Diaphragm Kit (Incl. 3, 4, 13, & 14)) PLN-530069844

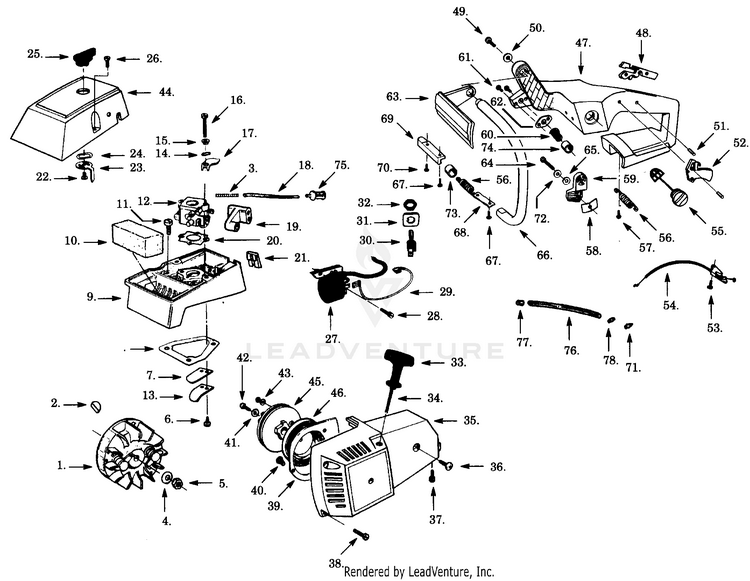

EXTERNAL POWER UNIT

...
...
1
Flywheel Ass'y. (Incl. 8) PLN-530047198
...
2
Flywheel Key PLN-530015126
...
3
Spring PLN-530037264
...
4
Washer PLN-530015127
...
5
Nut PLN-530626605
...
6
SCREW 6-19X.437 PLN-545227101
...
7
Reed Valve PLN-530036331
...
8
Gasket PLN-530019252
...
9
Carburetor Hsg. PLN-530037154
...
10
Air Filter PLN-530023791
...
11
Screw PLN-530015242
...
12
Carburetor PLN-530035311
...
13
Reed Stop PLN-530036332
...
14
Wave Washer PLN-530015254
...
15
Spacer PLN-530023865
...
16
Screw PLN-530015245
...
17
Choke Shutter PLN-530023805
...
18
Line Kit (Bulk#8133) PLN-530069247
...
19
Carb. Adj. Grommet PLN-530036973
...
20
Carb. Gasket PLN-530019045
...
21
Grommet - Throttle Cable PLN-530036972
...
22
Screw PLN-530015407
...
23
Choke Lever PLN-530037070
...
24
Wave Washer PLN-530015147
...
25
Choke Knob PLN-530037116
...
26
Screw PLN-530015168
...
27
Ignition Module PLN-530069403
...
28
Screw PLN-530015816
...
29
Wire Harness PLN-530037014
...
30
Toggle Switch PLN-530026766
...
31
Indicating Plate PLN-530012311
...
32
Switch- Plate and Nut PLN-530002582
...
33
Handle-Starter PLN-530027569
...
34
Rope Kit PLN-530069232
...
35
Fan Hsg. PLN-530037158
...
36
Screw PLN-530015771
...
37
Screw PLN-530016018
...
38
Screw PLN-530015812
...
39
Fan Hsg. Baffle PLN-530037013
...
40
Screw PLN-530015777
...
41
Washer PLN-530015123
...
42
Screw PLN-530016141
...
43
SCREW PLN-530016080
...
44
Carb. Cover PLN-530037155
...
45
Starter Pulley PLN-530069288
...
46
SPRING-STARTER PLN-545008007
...
47
Tank & Handle Assy PLN-530014760
...
48
Throttle Lockout Lever PLN-530036967
...
49
Screw PLN-530016020
...
50
Washer PLN-530016021
...
51
Roll Pin PLN-530015701
...
52
Throttle Trigger PLN-530036986
...
53
Screw PLN-530016016
...
54
Throttle Cable Assy PLN-530036966
...
55
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
56
Rear Mount Spring PLN-530036954
...
57
Screw PLN-530015906
...
58
Isolator Pad PLN-530024317
...
59
Upper Bracket PLN-530036929
...
60
Spring PLN-530036955
...
61
Screw PLN-530016022
...
62
Isolator Plate PLN-530036946
...
63
Handguard PLN-530025451
...
64
Screw PLN-530015505
...
65
Washer PLN-530015209
...
66
Front Handle PLN-530036939
...
67
Screw PLN-530016018
...
68
AV Strap PLN-530036113
...
69
Isolator Bracket PLN-530036943
...
70
Screw PLN-530016019
...
71
Check Valve PLN-530026119
...
72
Lockwasher PLN-530001642
...
73
Isolator Sleeve PLN-530036953
...
74
Upper Sleeve PLN-530036956
...
75
Fuel Filter Assy PLN-530037016
...
76
Vent Line Kit PLN-530069216
...
77
Vent Plug PLN-530027339
...
78
Vent Fitting PLN-530024475

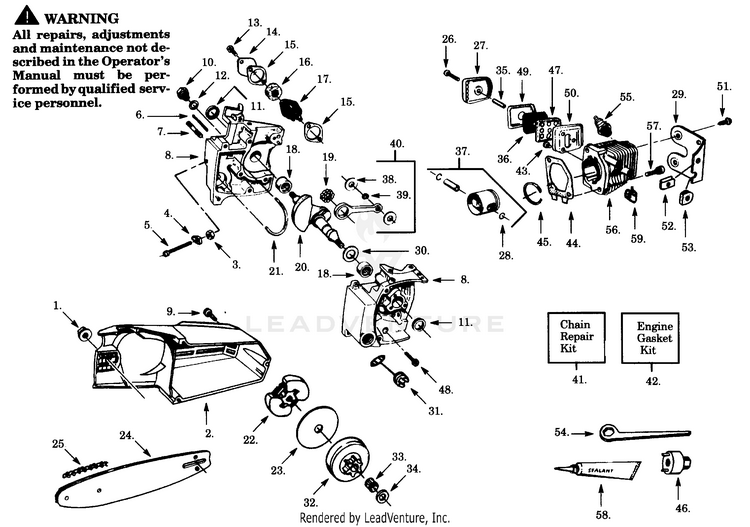

INTERNAL POWER UNIT

...
...
1
BAR NUT PLN-530015251
...
2
Bar Clamp PLN-530036928
...
3
Locknut PLN-530015135
...
4
BAR ADJUST PIN PLN-530023492
...
5
Screw PLN-530016115
...
6
Oil Tank Vent Pin PLN-530036450
...
7
Bar Stud PLN-530015719
...
8
Crankcase Ass'y. (Incl. 3-7,10,11,&18) PLN-530014759
...
9
Screw PLN-530015623
...
10
Check Valve Kit (Incl. 12) PLN-530069142
...
11
Crankshaft Seal PLN-530019059
...
12
Check Valve Gasket PLN-530019089
...
13
Screw PLN-530001643
...
14
Cover PLN-530023802
...
15
Metering Body Gasket PLN-530019091
...
16
Oil Filter (Foam) PLN-530023801
...
17
Oil Pump Ass'y. PLN-530010195
...
18
Crankshaft Bearing PLN-530032029
...
19
Roller Bearing (Incl. 12 Bearings) PLN-530032065
...
20
Crankshaft PLN-530022172
...
21
Kit-Fuel Line PLN-530069216
...
22
Clutch Ass'y. Kit PLN-530069193
...
23
Clutch Washer Kit PLN-530069197
...
24
BAR 14" .050 3/8 041 52DL PLN-952044368
...
24
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
24
Guide Bar, Model 2400 G.SAW-18" PLN-952044418
...
25
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
25
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
25
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
26
Screw PLN-530016026
...
27
Muffler Cover PLN-530036969
...
28
Piston Pin Retainer PLN-530023843
...
29
Rear Mount Bracket PLN-530016024
...
30
Thrust Washer PLN-530023887
...
31
Oil Cap Ass'y. (Incl. O-Ring) PLN-530010444
...
32
Clutch Drum PLN-530069166
...
33
Clutch Bearing PLN-530032079
...
34
Clutch Spacer-Inside PLN-530023519
...
35
Muffler Spacer PLN-530016025
...
36
Muffler Screen PLN-530036971
...
37
2000 - T 1, 2 & 3, & Model 1800-T 3 & 4 (Incl. 28,45& Pin), Model 2100 PLN-530069545
...
37
Piston Kit (Incl. 28,45& Pin), Model 2400 G.SAW PLN-530069452
...
38
Washer PLN-530015486
...
39
Bearing Rod Top (Incl. 22 Bearings PLN-530032075
...
40
Connecting Rod Assy (Incl. 38 & 39) PLN-530010474
...
41
Chain Repair Kit PLN-530-052073
...
42
Engine Gasket Kit (*Indicates Contents) PLN-530069401
...
43
Screw PLN-530001666
...
44
Engine Gasket Kit PLN-530069401
...
45
Piston Ring, Model 2100 PLN-530025875
...
45
Piston Ring PLN-530037603
...
46
Clutch Tool PLN-530031112
...
47
Muffler Baffle-Inner PLN-530037083
...
48
Screw PLN-530015986
...
49
Muffler Baffle-Outer PLN-530036970
...
50
Muffler Body PLN-530036968
...
51
Screw PLN-530016017
...
52
Speed Nut PLN-530016029
...
53
Grommet PLN-530037063
...
54
SCRENCH PLN-545006011
...
55
Spark Plug PLN-530030154
...
56
Cylinder, Model 2100 PLN-530012314
...
56
Cylinder, Model 2400 G.SAW PLN-530012313
...
57
Screw PLN-530015239
...
58
Crankcase Sealant PLN-530030054
...
59
Wire Clip PLN-530037354
...
0
Operator Manual PLN-530068710
...
xx
Model 2100-14" PLN-530014778
...
xx
Model 2400 G.SAW-18" PLN-530014790
...
xx
Model 2100/2400 G.SAW-16" PLN-530014766
...
0
Carton (Not a serviceable part) PLN-530061633
...
xx
Model 2100 Decal (Not a serviceable part) PLN-530027784
...
xx
Model 2400 G.SAW (Not a serviceable part) PLN-530029292
...
xx
Instruction Decal PLN-530037171
...
...
...
