product name

Poulan 20D Gas Saw

Model: 20D Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

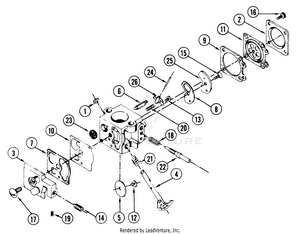

CARBURETOR 35001

...
...
1
Clip-Throttle Shaft PLN-530035007
...
2
Cover-Metering Diaphragm PLN-530035003
...
3
Cover-Fuel Pump PLN-530035004
...
4
Shaft-Throttle PLN-530035005
...
5
Shutter-Throttle PLN-530035006
...
6
Valve-Inlet Needle PLN-530035008
...
7
Gasket-Fuel Pump PLN-530035009
...
8
Gasket-Circuit Plate PLN-530035012
...
9
Gasket-Metering Diaphragm PLN-530035011
...
10
Diaphragm-Fuel Pump PLN-530035013
...
11
DIAPHRAGM PLN-503896701
...
12
Screw-Throttle Shutter PLN-530035015
...
13
Screw-Metering Lever Pin PLN-530035016
...
14
Screw-Idle Adj. PLN-530035019
...
15
Screw-Circuit Plate PLN-530035018
...
16
Screw-Metering Cover PLN-530035021
...
17
Screw-Pump Cover PLN-530035017
...
18
Spring-Idle Adj. Needle PLN-530035023
...
19
Spring-Idle Adj. Screw PLN-530035022
...
20
Spring-Metering Lever PLN-530035025
...
21
Spring-Throttle Return PLN-530035024
...
22
Needle-Idle PLN-530035026
...
23
Screen-Inlet PLN-530035027
...
24
Pin PLN-505520125
...
25
Plate-Circuit (Standard) PLN-530035029
...
25
Plate-Circuit (High altitude above 5,000 feet) PLN-530035044
...
26
Metering Lever PLN-505520127
...
xx
Kit-Repair (Inc.6,7,8,9,10,11,12,15,20,23, 24,26) Not Shown. PLN-530035032

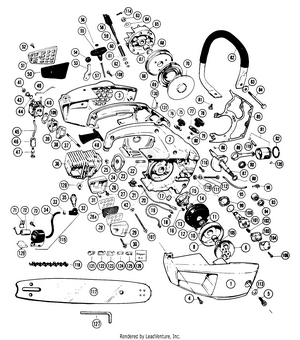

CHAIN SAW ASSEMBLY

...
...
1
Barclamp PLN-530011219
...
2
Crankcase Ass'y. Inc.22,75-76,85,93-94, 110-112,130-131 PLN-530010209
...
3
Fan Housing PLN-530011216
...
4
Screw-Bar Clamp-rear PLN-530015174
...
5
Barclamp Screw PLN-530015183
...
6
Clutch Ass'y. PLN-530010158
...
8
Bushing-Clutch Drum PLN-530032028
...
10
Drum & Sprocket Ass'y. Inc. Ref. 8 PLN-530048017
...
11
Spacer-Clutch (inside) PLN-530023519
...
12
Screw-Point Cover PLN-530015166
...
13
Cover-Breaker Points PLN-530023503
...
14
Seal-Breaker Points Cover PLN-530019061
...
15
Breaker Points Ass'y. PLN-530039054
...
16
Screws-Breaker Points Base PLN-530015004
...
17
Felt-Cam Wiper PLN-530633560
...
18
Screw-Terminal PLN-530625712
...
19
Lead Wire-Points To Coil PLN-530039055
...
20
Lead Wire-Points To Switch PLN-530039056
...
21
Stop Switch Ass'y. PLN-530023504
...
22
Stud-Cylinder Mounting PLN-530001674
...
23
Gasket-Cylinder PLN-530019068
...
24
Lockwasher-Cylinder PLN-530001677
...
25
Nut-Cylinder PLN-530001660
...
26
Body-Muffler PLN-530023521
...
27
Screw-Muffler Body PLN-530015178
...
28
Baffle-Muffler PLN-530023533
...
28A
Screen-Spark Arresting PLN-530023534
...
29
Cover-Muffler PLN-530023523
...
30
Screw-Muffler Cover PLN-530015169
...
31
Spacer-Muffler PLN-530023535
...
32
Spark Plug Boot PLN-507475326
...
33
Connector-Spark Plug PLN-530003934
...
34
Lead-High Tension PLN-530039057
...
35
BPMR7A NGK SPARK PLUG PLN-503235111
...
36
Cylinder Ass'y. Inc. Ref. 37 PLN-530011224
...
37
Stud-Carburetor Mount PLN-530015172
...
38
Gasket-Carburetor Adapter PLN-530019069
...
39
Adapter-Carburetor PLN-530023515
...
40
Gasket-Metering Diaphragm PLN-530035011
...
xx
Motor Mount Screw PLN-535035001
...
41
Nut-10-24 PLN-530015064
...
42
Washer-Fiber PLN-530019072
...
43
Spacer-Choke PLN-530023375
...
44
Wave Washer PLN-530015146
...
45
Line-Fuel (Bulk No. 8133) PLN-530021014
...
46
Filter Felt-Fuel Pick-up PLN-530023364
...
47
Weight-Fuel Pick-up PLN-530023363
...
48
Trigger-Throttle PLN-530023505
...
49
Wire-Throttle PLN-530023506
...
50
Air Filter (Gray) PLN-530023502
...
51
Cover-Air Filter PLN-530011217
...
52
Screw-Cover Air Filter PLN-530015164
...
53
Shutter-Choke PLN-530023525
...
54
Bumper-Choke Lever PLN-530023541
...
55
Handle-Starter Rope PLN-530042025
...
56
Plug-Starter Handle PLN-530023496
...
57
Rope-Starter PLN-530042035
...
58
Plunger-Oil Pump PLN-530023513
...
59
Spring-Pump Plunger PLN-530023514
...
60
Washer-Pump Plunger PLN-530015171
...
61
O-Ring-Pump Plunger (Top) PLN-530001952
...
62
O-Ring-Pump Plunger (Bottom) PLN-530019066
...
63
Nut-Flywheel PLN-530626605
...
64
Washer-Ramp Conical PLN-530015127
...
65
Flywheel Ass'y. PLN-530039058
...
66
Starter Pulley Ass'y. Inc. Ref. 68 PLN-530010163
...
67
Thrust Washer PLN-530015177
...
68
Bearing-Starter Pulley PLN-530032029
...
69
SPRING-STARTER PLN-545008007
...
70
Plate-Starter Pulley Back-up PLN-530042031
...
71
Clamp-Condenser PLN-530039053
...
72
Condenser PLN-530039052
...
73
Screw PLN-530015816
...
75
Oil Cap Ass'y. Inc. Ref. 76 PLN-530023741
...
76
Gasket-Oil Cap PLN-530019071
...
77
Gasket-Gas Cap PLN-530019048
...
78
Gas Cap Ass'y. Inc. Ref. 77-79-80 PLN-530010154
...
79
Washer PLN-530001520
...
80
Screw PLN-530001726
...
81
Screw PLN-530015176
...
82
Handlebar PLN-530022096
...
83
Washer-1/4 (Handlebar, Top) PLN-530015151
...
84
Screw PLN-530015175
...
85
Gasket-Crankcase PLN-530019062
...
86
Woodruff Key PLN-530015126
...
87
Crank Shaft PLN-530022099
...
88
Washer-Crankshaft Thrust PLN-530032027
...
89
Connecting Rod PLN-530022098
...
90
Bearings-Crank Pin Roller PLN-530032025
...
91
Piston Ass'y. Inc. Ref. 119-120 PLN-530011226
...
92
Piston Ring PLN-530023495
...
93
Bearing-Crankshaft PLN-530032026
...
94
Seal-Crankshaft PLN-530019059
...
95
Line-Impulse (Bulk No. 8133) PLN-530021017
...
98
Check Valve PLN-530022102
...
99
Gasket-Oil Pump Body PLN-530019064
...
100
O-Ring-Oil Pump Body PLN-530019063
...
101
Oil Pump Body Ass'y. PLN-530022097
...
102
Filter-Oil Pump PLN-530023511
...
103
Gasket-Oil Pump Cover PLN-530019065
...
104
Cover-Oil Pump PLN-530023512
...
105
Thrust Washer (Outside) PLN-530015173
...
106
Screws PLN-530001643
...
107
Screw PLN-530015167
...
108
Screw PLN-530015163
...
109
Gasket-Carburetor PLN-530019045
...
110
Nut-Adjusting Screw PLN-530015135
...
111
BAR ADJUST PIN PLN-530023492
...
112
Screw-Bar Adjusting PLN-530015185
...
113
Washer-Barclamp Screw PLN-530015149
...
114
Screw-Oil Plunger Lock PLN-530001714
...
115
Coil & Lamination Ass'y. Inc. 32 - 34 PLN-530039051
...
116
Screws-Crankcase PLN-530015168
...
117
Bar-12" PLN-530044101
...
117
Bar-14" PLN-530044099
...
118
Chain-12" Bar PLN-530051046
...
118
Chain-14" Bar PLN-530051041
...
119
Wrist Pin PLN-530032024
...
120
Retaining Ring-Wrist Pin PLN-530015162
...
121
Drive Link-Chain PLN-530052044
...
122
Cutter LH-Chain PLN-530052046
...
123
Cutter RH-Chain PLN-530052045
...
124
Tie Strap-Chain PLN-530052038
...
125
Pre-set Tie Strap-Chain PLN-530052039
...
126
Repair kit-Chain PLN-052043
...
127
Bar Wrench PLN-530031017
...
128
Clip-High Tension lead (1st fin-bottom) PLN-530015195
...
129
Coil Insulator PLN-530023609
...
130
Vent Plug Ass'y. PLN-530022132
...
131
Line-Oil Tank Vent (7" Long Cut from No. 8133 Tubing) PLN-530021023
...
...
...
