product name

Poulan 2055LE Gas Chain Saw Type 1, Woodsman

Model: 2055LE Gas Chain Saw Type 1

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (WT600) 530071410

...
...
1
Limiter Cap-High PLN-530038479
...
2
Limiter Cap-Low PLN-530038478
...
3
Carburetor Repair Kit (Kit= Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit (Indicates Contents) PLN-530069844

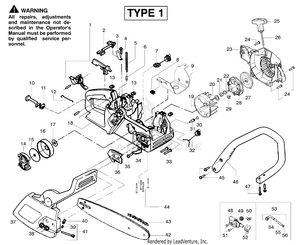

Chassis & Handle Assembly Type 1

...
...
1
Kit-Trigger & Lockout (Includes Pin) PLN-530071305
...
2
Lever-Switch PLN-530038227
...
3
Spring-Switch PLN-530016149
...
4
Screw PLN-530015775
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Fitting - Fuel Line PLN-530023877
...
7
FUEL CAP ASSY PLN-580940901
...
8
Clip - "U" PLN-530055322
...
9
Shield - Heat PLN-530055183
...
10
Lever-Choke PLN-530047989
...
11
Grommet-Choke Lever PLN-530038406
...
12
Wire-Throttle PLN-530037809
...
13
Nut-Speed PLN-530015922
...
14
Assy.-Clutch PLN-530014949
...
15
Washer-Clutch PLN-530015611
...
16
Assy-Drum W/brg. PLN-530047061
...
17
Washer - Thrust PLN-530015907
...
18
Kit - Chassis Assy. PLN-530069822
...
19
FLYWHEEL ASSY PLN-530047534
...
20
Washer-Flywheel PLN-530015127
...
21
Nut-Flywheel PLN-530016134
...
22
Screw PLN-530015920
...
23
Housing-Fan PLN-530049334
...
24
Screw PLN-530015892
...
25
Handle-Starter PLN-530056402
...
26
Kit-Rope PLN-530069232
...
27
SPRING STARTER PLN-545008015
...
28
STARTER PULLEY PLN-545034301
...
29
Screw PLN-530016080
...
30
Plug - Bronze Vent PLN-530038264
...
31
Check Valve PLN-530026119
...
32
OIL TANK CAP PLN-530057236
...
33
Bolt - Bar PLN-530016133
...
34
Chain Catcher PLN-530029850
...
35
Screw PLN-530015814
...
36
Plate-Bar Mounting PLN-530038238
...
37
Assy-Chain Brake PLN-545139906
...
38
Nut-Bar Mounting PLN-530015917
...
39
Retainer-Bar Adjust PLN-530038593
...
40
Pin-Bar Adjust PLN-530015826
...
41
Kit-Bar Adjust (Incl 39,40) PLN-530069611
...
42
BAR 14" .050 3/8 041 52DL PLN-952044368
...
43
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
44
Screw PLN-530016132
...
45
Screw PLN-530015814
...
46
Handle-Front PLN-530059173
...
47
Screw PLN-530015940
...
48
Kit-Oil Pump (Incl 49,50,52) PLN-530071259
...
49
Gear-Worm Spring PLN-530037820
...
50
Elbow-Oil Pickup PLN-530049477
...
51
SCREW 6-19X.437 PLN-545227101
...
52
Block-Seal PLN-530019206
...
53
Assy-Oil-Pickup (Incl. 54, 55 & 56) PLN-530047663
...
54
Pickup-Oiler PLN-530038373
...
55
Filter-Oil PLN-530056533
...
56
Filter-Oil PLN-530056533
...
56
Operator Manual Not Shown PLN-530163676
...
56
Decal-Warning Not Shown PLN-530038257

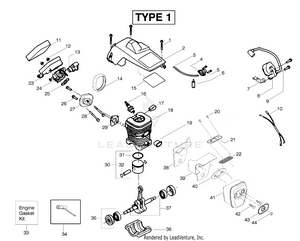

Engine Assembly Type 1

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 15) PLN-530055637
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530052296
...
11
Foam- Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Grommet-Carb Adjust PLN-530035526
...
14
Seal-Carb Adapter PLN-530054144
...
15
Reflector-Heat PLN-530055698
...
16
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
17
Clip-High Tension Lead PLN-530016136
...
18
Cylinder PLN-530012550
...
19
Insulator-Heat PLN-530037652
...
20
Screw-Outlet cover PLN-530016351
...
21
Cover - Outlet PLN-530055759
...
22
MUFFLER (Incl. 20,21) PLN-530071904
...
23
Housing- Air Filter PLN-530057480
...
24
Kit-Carburetor (WT-600) PLN-530071410
...
24
Kit-Carburetor (WT-637) PLN-530071622
...
25
Gasket-Carb. PLN-530069608
...
26
Screw PLN-530016386
...
27
Carb. Adapter PLN-530049700
...
28
Screw PLN-530016187
...
29
Gasket-Carb Adaptor PLN-530069608
...
30
Kit-Piston (Incl. 31 & 32) PLN-530071408
...
31
Ring-Piston PLN-545160401
...
32
Retainer-Piston Pin PLN-530015697
...
33
Kit-Engine Gasket (Incl. 25, 29 & 40) PLN-530069608
...
34
Bar Wrench PLN-530031163
...
35
Assy-Seal & Bearing PLN-530056363
...
36
Cap-Crankcase PLN-530037935
...
37
CRANKSHAFT ASSY PLN-545113101
...
38
Backplate PLN-530054885
...
39
Guide-Outlet PLN-530054880
...
40
Gasket-Muffler PLN-530069608
...
41
MUFFLER (Incl. 38-40,42) PLN-530071904
...
42
Bolt-Muffler PLN-530016338
...
43
Cover-Bolt PLN-530055586
...
44
NUT 10MM BRASS PLN-574266401

Kit-Carburetor Assembly 530071622/530071820/530071821

...
...
530071622
Kit-Carburetor Assembly - WT -637 PLN-530071622
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
...
...
