Poulan 2025 Gas Saw

Model: 2025 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

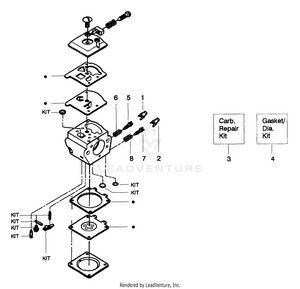

Carburetor Assembly Kit P/N 530069703

...
...
xx
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
1
Limiter Cap - High PLN-530038318
...
2
Limiter Cap - Low PLN-530038317
...
3
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
5
Needle - Low Speed PLN-530035383
...
6
Needle Spring - Low Speed PLN-530035293
...
7
Needle - High Speed PLN-530035384
...
8
Needle Spring - High Speed PLN-530035295

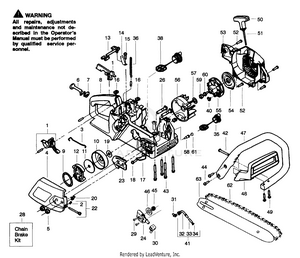

Handle & External Power Unit

...
...
1
Trigger & Lockout Kit (Includes Pin) PLN-530069724
...
2
Retainer-Bar Adjust PLN-530038593
...
3
Wire - Throttle PLN-530037809
...
4
Clutch Cover PLN-530053713
...
5
Nut - Bar Mounting PLN-530015917
...
6
Choke Lever PLN-530047989
...
7
Grommet-Choke Knob PLN-530038406
...
8
Chassis Ass'y. Kit PLN-530069822
...
9
Clutch Ass'y. PLN-530014949
...
10
Clutch Drum Ass'y - w/Brg. PLN-530047061
...
11
Washer - Clutch PLN-530015611
...
12
Clutch Ass'y. PLN-530014949
...
13
Switch Lever PLN-530038227
...
14
Switch Spring PLN-530016149
...
15
Screw PLN-530015775
...
16
Nut-Speed PLN-530015922
...
17
Chain Catcher PLN-530029850
...
18
Screw PLN-530015814
...
19
Washer - Thrust PLN-530015907
...
20
Pin - Bar Adjusting PLN-530015826
...
22
Bar Adjusting Screw Kit (Incl. 2) PLN-530069611
...
23
Bar Mounting Plate PLN-530038238
...
24
Oil Pump Kit (Incl. Oil Pump Body, Gear Assy, Pin, 31 & 45) PLN-530071259
...
26
Bolt PLN-530016133
...
28
Assy-Chain Brake PLN-545139906
...
29
SCREW 6-19X.437 PLN-545227101
...
30
Seal Block PLN-530019206
...
31
Elbow-Oil Pickup PLN-530049477
...
32
Pick-Up Oiler PLN-530038373
...
33
Filter-Oil PLN-530056533
...
34
Filter-Oil PLN-530056533
...
35
OIL TANK CAP PLN-530057236
...
36
Fuel Line Kit (Large) PLN-530069216
...
38
Fuel Cap Ass'y. PLN-530047164
...
40
Screw PLN-530016080
...
41
Oil-Pickup Ass'y. (Incl. 32, 33 & 34) PLN-530047663
...
42
Screw PLN-530016020
...
43
Screw PLN-530016132
...
44
Screw PLN-530015814
...
45
Gear Worm Spring PLN-530037820
...
46
Dust Seal PLN-530019231
...
47
Front Handle PLN-530037799
...
48
Handguard PLN-530038224
...
49
Screw PLN-530015940
...
50
Handle-Starter PLN-530056402
...
51
Rope Kit PLN-530069232
...
52
Screw PLN-530015892
...
53
Fan Housing PLN-530049334
...
54
SPRING STARTER PLN-545008015
...
55
STARTER PULLEY PLN-545034301
...
56
FLYWHEEL ASSY PLN-530047534
...
57
Washer-Flywheel PLN-530015127
...
58
Check Valve PLN-530026119
...
59
Nut-Flywheel PLN-530016134
...
60
Screw PLN-530015920
...
61
Plug - Bronze Vent PLN-530038264
...
62
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
63
BAR 16" .050 3/8 .041 56DL PLN-952044370

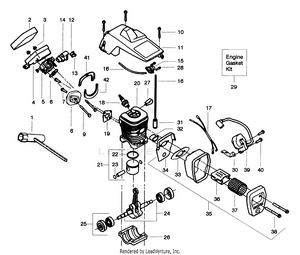

Internal Power Unit

...
...
1
Bar Wrench PLN-530031163
...
2
Foam - Air Filter PLN-530037793
...
3
Nut PLN-530016101
...
4
Housing- Air Filter PLN-530057480
...
5
Kit-Carburetor (Walbro-WT-89) (Incl. 12 & 13) PLN-545081885
...
6
GASKET PLN-530019271
...
7
SCREW PLN-530016386
...
8
Carb. Adapter PLN-530049700
...
9
Screw PLN-530016187
...
10
Screw PLN-530016102
...
11
Cylinder Shield PLN-530053184
...
12
Limiter Cap - High PLN-530038318
...
13
Limiter Cap - Low PLN-530038317
...
14
Grommet - Carb Adjust PLN-530049244
...
15
Kit-Purge Bulb PLN-530071835
...
16
Fuel Line Kit (Small) PLN-530069247
...
17
Wire Harness Ass'y. PLN-530052296
...
18
Spark Plug (CJ-7Y) PLN-530030153
...
19
Gasket - Carb Adaptor PLN-530019249
...
20
CYLINDER PLN-530047127
...
21
Piston Kit (Incl. 22 & 23) PLN-530069604
...
22
Piston Ring PLN-530029805
...
23
Retainer - Piston Pin PLN-530015697
...
24
CRANKSHAFT ASSY PLN-545113101
...
25
Assy - Bearing & Seal PLN-530056363
...
26
Cap - Crankcase PLN-530037935
...
27
Clip - High Tension Lead PLN-530016136
...
28
Screw PLN-530015780
...
29
Engine Gasket Kit (Incl. 6, 19 & 33) PLN-530069608
...
30
Ground Strap PLN-530047442
...
31
Fuel Pick - up Ass'y. PLN-530095646
...
32
Heat Insulator PLN-530037652
...
33
Muffler Gasket PLN-530019221
...
34
Muffler Backplate PLN-530049870
...
35
MUFFLER (Incl. 33 - 34 & 36 - 38) PLN-530071904
...
36
Muffler Diffuser PLN-530037813
...
37
Spark Screen PLN-530036103
...
38
Screw PLN-530016132
...
39
Ignition Module PLN-530039198
...
40
Screw PLN-530015814
...
41
Seal - Carb Adapter - (Upper) PLN-530049715
...
42
Seal - Carb Adapter - (Lower) PLN-530049714
...
xx
Operator Manual Not Shown PLN-530087857
...
xx
Decal Instruction Not Shown PLN-530038257
...
xx
Decal Stop (Not a serviceable part) Not Shown PLN-530038486
...
xx
Clutch Ass'y. Tool Not Shown PLN-530031112
...
xx
Air Gap Gauge Not Shown PLN-530031097
...
xx
Insert Tool - Limiter Cap Not Shown PLN-530031160
...
xx
Carrying Case Not Shown PLN-952031164
...
...
...
