product name

Poulan 1420 Electric Saw Type 2

Model: 1420 Electric Saw Type 2

Save
 Part Not Listed?Part Not Listed?
product name

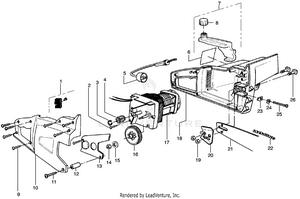

Chain Saw Assembly Type 2

...
...
1
Switch PLN-530-025518
...
2
SCREW PLN-534222402
...
3
RING-RETAINING PLN-530015501
...
4
GEAR PLN-530025463
...
5
ASSY-CORDSET PLN-530401718
...
6
Warning Decal (PLN-CAN.-1420) PLN-530058617
...
6
Warning Decal (PLN-1420) PLN-530057957
...
7
TANK PLN-530014254
...
8
TANK CAP PLN-530029282
...
9
SCREW PLN-534222402
...
10
Hsg - Right PLN-530401943
...
11
SCREW PLN-530015835
...
12
SPACER PLN-530015832
...
13
PLATE PLN-530029278
...
14
BAR NUT PLN-530015251
...
15
WASHER PLN-530015842
...
16
GEAR PLN-573974401
...
17
Motor Ass'y. PLN-530403235
...
18
HOUSING ASSY (Incl. 26) PLN-545038001
...
19
BAR NUT PLN-530015251
...
20
PLATE-GUIDE BAR PLN-530029285
...
21
BAR 14" .050 3/8 041 52DL PLN-952044368
...
22
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
23
BAR ADJUST PIN PLN-530023492
...
24
PLATE PLN-530025466
...
25
SCREW PLN-530015514
...
26
BAR BOLT PLN-530015831
...
xx
Operator's Manual (PLN-CAN. 1420) Not Shown PLN-530083567
...
xx
Operator's Manual (PLN-1420) Not Shown PLN-115-259626
...
xx
SCABBARD(14"FROSTY CLEAR) Not Shown PLN-530025644
...
...
...
