product name

Poulan 1220 Electric Saw

Model: 1220 Electric Saw

Save
 Part Not Listed?Part Not Listed?
product name

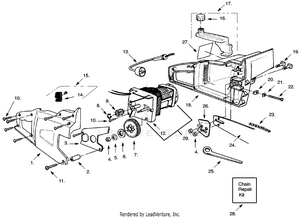

Chain Saw Assembly Type 1

...
...
1
Hsg - Right PLN-530-029504
...
2
SPACER PLN-530015832
...
3
PLATE PLN-530029278
...
4
BAR NUT PLN-530015251
...
5
WASHER PLN-530015842
...
6
Gear Seal PLN-530-036012
...
7
GEAR PLN-573974401
...
8
RING-RETAINING PLN-530015501
...
9
GEAR PLN-530025463
...
10
SCREW PLN-534222402
...
11
SCREW PLN-530015835
...
12
Endbell Ass'y. PLN-530-400972
...
13
ASSY-CORDSET PLN-530401718
...
14
LOCK BUTTON PLN-530025873
...
15
Switch (Incl. 14.) PLN-530-025518
...
16
TANK CAP PLN-530029282
...
17
TANK PLN-530014254
...
18
ASSY-HOUSING (LEFT) (Incl. 19) PLN-530014253
...
19
BAR BOLT PLN-530015831
...
20
BAR ADJUST PIN PLN-530023492
...
21
PLATE PLN-530025466
...
22
SCREW PLN-530015514
...
23
Chain 12" PLN-952-051208
...
xx
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
xx
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
24
PLN BAR 12" SN.050 3/8A041 PLN-952044366
...
xx
BAR 14" .050 3/8 041 52DL PLN-952044368
...
xx
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
25
SCRENCH PLN-545006011
...
26
PLATE-GUIDE BAR PLN-530029285
...
27
Warning Decal Model 1220 PLN-530-029571
...
xx
Warning Decal Model 1420 PLN-530-036687
...
xx
Warning Decal Model 1425 PLN-530-029572
...
xx
Warning Decal Model 1625 PLN-530-029573
...
xx
Warning Decal Model EL-14 PLN-530-403055
...
xx
Warning Decal Model EL-16 PLN-530-401694
...
28
Chain Repair Kit PLN-530-052073
...
29
MOTOR ASSY PLN-530014164
...
29
MOTOR ASSY (Incl. 12) PLN-530014255
...
xx
Operator's Manual Not Shown PLN-530-082417
...
xx
SCABBARD(14"FROSTY CLEAR) Not Shown PLN-530025644
...
xx
SCABBARD (16") Not Shown PLN-530029543
...
...
...
