product name

Makita DCS401 39cc Chainsaw

Model: DCS401

Save
 Part Not Listed?Part Not Listed?
product name

Makita DCS401

...
...
1
Cylinder Duplex, Dcs401 MK-028131160
...
2
Angular Nipple, Dcs340 MK-001151670
...
3
Gasket, Dcs341 MK-965-524-042
...
4
Piston Assembly, Dcs401 MK-028-132-110
...
5
Piston Ring, Dcs430 MK-021-132-230
...
6
Piston Pin, Dcs340 MK-021132020
...
7
Spring Ring, Dcs340 MK-108-132-050
...
8
Crankshaft Cpl., Dcs341 MK-957120028
...
9
Con-Rod Cpl., Dcs340 MK-021123010
...
10
Roller 4X6, Dcs340 MK-962-640-061
...
11
Key, Dcs340 MK-939615260
...
12
Hexagonal Nut, Dcs340 MK-920108044
...
13
Stop Disc, Dcs340 MK-108121010
...
14
Gasket, Dcs330S MK-965-524-011
...
15
Crankcase, Dcs341 MK-028111640
...
16
Spiral Pin 3X16, Dcs340 MK-936-430-160
...
17
Rubber Buffer, Dcs341 MK-965-403-490
...
18
Needle Bush, Dcs340 MK-962300011
...
19
Snap Ring 19X1, Dcs340 MK-929-319-101
...
20
Radial Ring, Dcs330S, T1 MK-962-900-049
...
21
Oil Tank Plug Assy, Dcs400 MK-965-450-040
...
22
Gasket, Oil Cap, Dcs340 MK-963-100-041
...
23
Crankcase, Dcs341 MK-028111630
...
24
Vent Valve, Dcs431 MK-010-245-010
...
25
Guide Pin, Dcs340 MK-021245070
...
26
Fast Bolt M8X25, Dcs340 MK-905-808-254
...
27
Torx Screw 5X30, Dcs340 MK-908-005-305
...
28
Nut With Pivot MK-001-213-042
...
29
Straining Screw, Dcs340 MK-389-213-080
...
30
Spike Bar Assembly, Dcs341 MK-957250015
...
31
C. Screw M5X12, Dcs340 MK-908-105-124
...
32
Screw M5X25, Dcs340 MK-908-405-255

Makita DCS401

...
...
33
Igni Ion Electronic, Dcs341 MK-028-142-021
...
34
S.Circuit Cable, Dcs340 MK-028-147-000
...
35
Igni Ion Cable(150 Mm), Dcs340 MK-970-310-200
...
36
Insulating Hose (43 Mm), Dcs340 MK-970-502-110
...
37
Plug Cap Assy, Dcs431 MK-957-604-260
...
38
Spring, Dcs431 MK-965-604-180
...
39
Spark Plug, Bpmr6F, Dcs340 MK-965-603-018
...
40
F.H. Screw M5X14, Dcs9000 MK-908-605-145
...
41
Starter Grip, Dcs340 MK-965-404-031
...
42
Disc Spacer, Dcs340 MK-900-004-375
...
43
Starter Assembly, Dcs340 MK-021-160-000
...
44
Starter Rope 3.0Mm 100M, Dcs330S MK-985000150
...
45
Starter Spring, Dcs340 MK-028-166-030
...
46
Snap Ring, Dcs340 MK-021166040
...
47
Flywheel MK-021-141-011
...
48
Spring Washer , Dcs340 MK-928-308-001
...
49
Hex Nut M8X1, Dcs340 MK-920-308-024
...
50
Fan Housing, Dcs341 MK-028112630
...
51
Head Screw M5X16, Dcs340 MK-908-005-165

Makita DCS401

...
...
52
Hand Protect, Dcs341 MK-028213615
...
53
Label (Safety), Dcs430 MK-980114237
...
54
Spring, Dcs341 MK-028213560
...
55
Sprocket Guard Assembly, Dcs341 MK-028-213-670
...
56
Brake Spring, Dcs341 MK-028-213-501
...
57
Label, Dcs341 MK-980114251
...
58
Hex Nut, Dcs341 MK-923-208-004
...
59
Oil Pump Cpl.,Uc3500, Uc4000 MK-021-245-003
...
60
Suc Ion Line Assy, Dcs340 MK-965451962
...
61
Worm, Dcs340 MK-021-245-040
...
62
Sealing Cap, Dcs340 MK-021-245-080
...
63
Guide Plate, Dcs340 MK-021-111-037
...
64
Disc, Dcs340 MK-021-224-010
...
65
Clutch Drum Cpl.3/8, Dcs340 MK-028-223-311
...
66
Clutch Assy, Dcs340 MK-021-180-011
...
67
Flat Spring, Dcs340 MK-028184020

Makita DCS401

...
...
69
Lens Head Screw, Dcs340 MK-908205605
...
70
Washer, Dcs340 MK-928-405-000
...
71
Heat Shield, Ps401 MK-021174111
...
72
Muffler U.S., Dcs340 MK-021-174-320
...
73
Spark Screen, Dcs340 MK-021174340
...
74
Screw 3.5X9.5, Dcs431 MK-915-135-100
...
75
Gasket, Dcs341 MK-965-524-062
...
76
Cover Assembly, Ps401 MK-028118050
...
77
Insert, Dcs400 MK-028118180
...
78
Nut M5, Dcs340 MK-001118062
...
79
Air Filter, Nylon, Ps401 MK-028-173-041
...
81
Lens Head Screw, Dcs340 MK-908205605
...
82
Hood, Dcs341 MK-028118150
...
83
Head Screw M5X16, Dcs340 MK-908-005-165

Makita DCS401

...
...
84
Tubular Handle, Dcs330S MK-028310050
...
85
F. Screw M5.5X45, Dcs341 MK-913-455-454
...
86
Tank Assembly Dcs341 MK-028-114-691
...
87
Fuel Line, Dcs341 MK-965-404-661
...
88
Rivet, Ps401 MK-937130120
...
89
Vent Valve Assembly, Dcs6000I21 MK-957-114-010
...
90
Throttle Linkage, Dcs341 MK-028-117-244
...
91
Rubber Buffer, Dcs341 MK-965-403-490
...
92
Screw M5.5X20, Dcs6800I MK-913-455-204
...
93
Fixing Bush, Dcs431 MK-021-114-051
...
94
Torx Screw 5X30, Dcs340 MK-908-005-305
...
95
Screw M5.5X30, Dcs6000I21 MK-913-455-304
...
96
Cable Strap, Dcs341 MK-980003583
...
97
Suc Ion Head, Dpc6400 MK-963-601-130
...
98
Oil Tank Plug, Comp., Dcs9000 MK-010-114-050
...
99
Gasket, Dcs9000 MK-963-228-030
...
100
Hex Nut M5, Dcs340 MK-920205000
...
101
Gasket, Dcs340 MK-965-524-120
...
102
Ventila Ion Line, Dcs9000 MK-965-452-060
...
103
Insulating Hose (43 Mm), Dcs340 MK-970-502-110
...
104
Gasket, Dcs341 MK-965-524-092
...
105
Gasket, Dcs341 MK-965524131
...
106
Intermed.Flange, Dcs340 MK-028131061
...
107
Gasket, Dcs341 MK-965-524-082
...
108
Bottom, Ps401 MK-028118271
...
109
Gasket, Dcs340 MK-965404430
...
110
Hex Screw M5X55, Dcs340 MK-900205554
...
111
Torx Screw 5X30, Dcs340 MK-908-005-305
...
112
Choke Linkage, Dcs340 MK-028150750
...
113
Choke Lever, Dcs340 MK-028-150-740
...
114
Stop Switch, Dcs341 MK-028-118-121
...
115
Gasket, Dcs340 MK-965404421
...
116
Plate, Dcs340 MK-028118160
...
117
Contact Plate, Dcs340 MK-028-118-112
...
118
Head Screw M5X16, Dcs340 MK-908-005-165

Makita DCS401

...
...

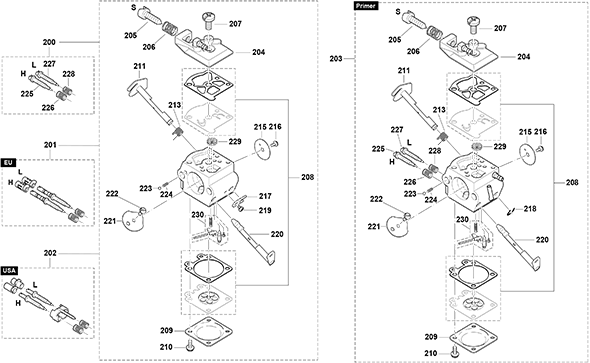

119
Carburetor, Dcs-401 MK-028-151-710
...
120
Screw, Dcs340 MK-118-151-190
...
121
Pump Cover, Dcs340 MK-001151140
...
122
Adjusting Screw, Dcs340 MK-021151240
...
123
Pressure Spring, Dcs340 MK-021-151-230
...
124
Gasket Set, Dcs340 MK-021-151-540
...
125
Screen, Dcs340 MK-021-151-180
...
126
Throttle Shutter, Dcs340 MK-108151320
...
127
Screw, Dcs340 MK-118151060
...
128
Safety Washer, Dcs341 MK-108-151-350
...
129
Screw, Dcs340 MK-118151020
...
130
Choke Shaft, Dcs340 MK-001151255
...
131
Throttle Shaft, Dcs341 MK-001151320
...
132
Spring, Dcs340 MK-001-151-310
...
133
Spring, Dcs340 MK-021-151-480
...
134
Spring, Dcs340 MK-021151530
...
135
Fric Ion Spring, Dcs340 MK-118151160
...
136
Fric Ion Ball, Dcs340 MK-118151170
...
137
Screw, Dcs340 MK-118151060
...
138
Choke Shutter (62-175), Ehw120 MK-001151350
...
139
Ctrl.Parts(Carb.), Dcs340 MK-957-150-040
...
140
Gasket Set, Dcs340 MK-021-151-540
...
141
Diaphragm Cover, Dcs340 MK-021-151-120
...
142
Screw, Dcs340 MK-118151020
...
144
Idle Adj.Screw, Dcs340 MK-021151470
...
145
Main Adj.Screw, Dcs340 MK-001151515

Makita DCS401

...
...

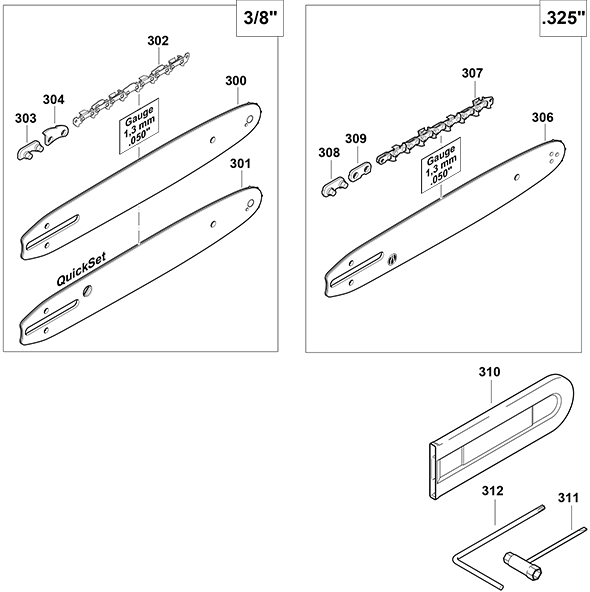

146
Chain Protect Cover, Dcs340 MK-952100633
...
147
14 Chain, Dcs34 MK-528092652
...
147
16 Saw Chain, Uc4000 MK-528092656
...
150
Guide Bar 14, Dcs340 MK-442035661
...
150
16 Guide Bar, Dcs34-16 MK-442-040-661
...
152
Decompres Ion Valve, Dcs431 MK-001-131-150
...
...
...
