MTD OHV Engines 8P92ZU 452cc Engine

Model: 8P92ZU 452cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

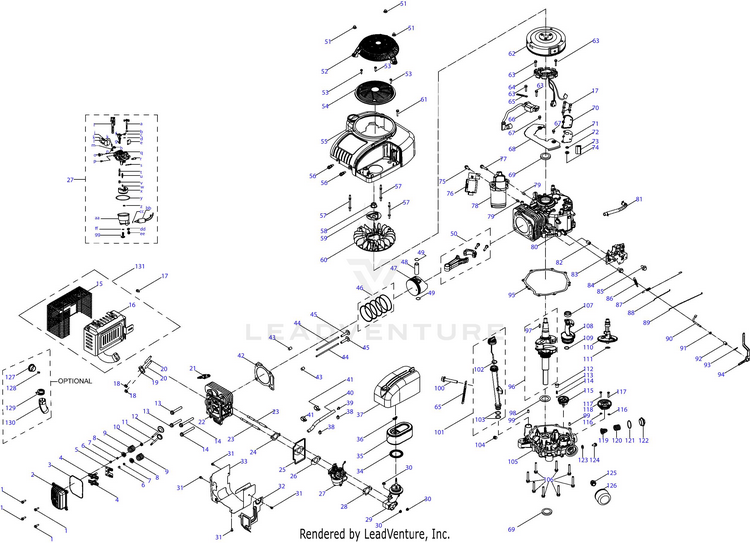

8P92ZU General Assembly

...
...
1
Bolt, M6x22 MTD-710-05316
...
2
Valve Cover MTD-951-12266
...
3
Gasket, Valve Cover MTD-951-12267
...
4
ROCKER ARM ASSEMBLY MTD-951-11981A
...
5
Rocker Arm Base MTD-951-12268
...
6
Exhaust Valve Adjuster MTD-951-12269
...
7
VALVE CAP MTD-951-14912A
...
8
Valve Spring Seat MTD-951-14911
...
9
Valve Spring MTD-951-12078
...
10
INTAKE VALVE SEAL MTD-951-11964A
...
11
Exhaust Valve MTD-951-15776
...
12
Intake Vavle MTD-951-15777
...
13
Bolt, M10x1.25x65 MTD-710-06065
...
14
Bolt, M10x1.25x87 MTD-710-06064
...
15
Muffler Guard MTD-951-12278
...
16
Muffler MTD-951-14468
...
17
Bolt, M6x14 MTD-710-04916
...
18
Nut, M8 MTD-751-15427
...
19
Gasket, Muffler MTD-951-12271
...
20
Stud, M8x47 MTD-951-14459
...
21
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
22
Cylinder Head MTD-651-05569
...
23
Stud, M6-8x140 MTD-951-12264
...
24
Gasket, Carburetor Insulator MTD-951-12263
...
25
Insulator MTD-951-12262
...
26
Gasket, Carburetor MTD-951-12261
...
27
Carburetor MTD-951-05559
...
28
Gasket, Intake Manifold MTD-951-12258A
...
29
Intake Manifold MTD-951-15440
...
30
Nut, M6 MTD-712-05015
...
31
Bolt, M5x10 MTD-710-06290
...
32
Insulator MTD-951-15772
...
33
Shroud MTD-951-12265
...
34
Ring,Air Filter MTD-951-15444
...
35
Air Filter Assembly MTD-937-05122
...
35
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-490-200-M068
...
36
Butterfly Nut MTD-951-15443
...
37
Air Filter Cover Assembly MTD-931-05081B
...
38
CARBURETOR HOSE CLAMP MTD-951-11700A
...
39
Plug MTD-951-14091
...
40
Fuel Hose, 6.3x12.5x290 MTD-935-05087
...
41
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
42
Gasket, Cylinder Head MTD-951-15773
...
43
Pin, 12x16 MTD-715-04122
...
44
PUSH ROD MTD-951-14226A
...
45
TAPPET MTD-951-11962A
...
46
Piston Ring Set MTD-951-05566
...
47
Piston MTD-951-15774
...
48
Piston Pin MTD-911-06415
...
49
PISTON PIN SNAP RING MTD-951-11953A
...
50
Connecting Rod Assembly MTD-951-15775
...
51
ACORN NUT M6-1 MTD-712-04276A
...
52
Shroud MTD-931-10840
...
53
Self-tappling Screw, ST5.5x25 MTD-710-05303
...
54
Shroud MTD-951-12205
...
55
Shroud MTD-951-14128B
...
56
Hook Bolt MTD-710-05305
...
57
Stud, M6x99 MTD-951-14454
...
58
Nut, M16x1.5 MTD-712-05169
...
59
Cooling Fan Plate MTD-951-12221
...
60
Cooling Fan MTD-951-12222B
...
61
Bolt, M6x16 MTD-710-04968
...
62
Flywheel MTD-951-15778
...
63
Bolt, M6x28 MTD-710-04943
...
64
Charging Coil MTD-951-15779
...
65
FLEXIBLE CLAMP MTD-951-11622A
...
66
Ignition Module MTD-951-12220
...
67
Bolt, M6x10 MTD-710-04914
...
68
Shield MTD-951-12279
...
69
OIL SEAL MTD-951-11499A
...
70
Breather Cover MTD-951-12770A
...
71
Gasket, Breather Cover MTD-951-12226
...
72
Breather Valve MTD-951-12685
...
73
Breather Filter Screen MTD-951-12227
...
74
Second Air Valve Seat MTD-951-12686
...
75
Bolt, M8x40 MTD-710-05306
...
76
Regulator Assembly MTD-951-15780
...
77
Stud, M8-6x58 MTD-951-15781
...
78
STARTER ASSEMBLY MTD-751P12207A
...
79
Pin,10x14 MTD-715-04120
...
80
Crankcase MTD-919-05241
...
81
Breather Hose MTD-951-12235
...
82
Bush, 6.5x15x20 MTD-750-05530
...
83
Governor Gear Bracket Assembly MTD-951-15513
...
84
Bolt, M6x38 MTD-710-05310
...
85
Bolt, M6x18 MTD-710-05003
...
86
Governor Spring MTD-932-05187
...
87
Idle Spring MTD-951-12231
...
88
Choke Lever MTD-951-12228
...
89
Throttle Linkage MTD-951-12230
...
90
Governor Gear Shaft MTD-947-06356
...
91
Washer, 6x1x12 MTD-736-04558
...
92
OIL SEAL MTD-951-11902A
...
93
Cotter Pin MTD-714-04078
...
94
Governor Lever MTD-951-12232
...
95
Gasket, Crankcase MTD-951-12237
...
96
Crankshaft MTD-951-15784
...
97
WOODRUFF KEY MTD-751P10307A
...
98
Washer, 35.4x2x54 MTD-736-04557
...
99
Pin, 8x14 MTD-715-04121
...
100
Bolt, M6x35 MTD-710-05198
...
101
Dipstick MTD-951-12239
...
102
O-Ring, 21.9x2.62 MTD-951-12317
...
103
O-Ring, 21.2x2.8 MTD-951-12363
...
104
ENGINE PLUG 3/8 NPT MTD-951-11644
...
105
Crankcase Cover MTD-919-05090
...
106
Bolt, M8x54 MTD-710-04982
...
107
Bearing, 6202 MTD-951-15463
...
108
Balance Shaft MTD-751-12246
...
109
Washer, 15.4x1x25 MTD-736-04559
...
110
Camshaft MTD-951-15782
...
111
Washer, 16.4x1x24 MTD-736-04561
...
112
Bolt MTD-710-05312
...
113
Spring MTD-951-12244
...
114
Steel Ball, S6.35 MTD-951-12243
...
115
Governor Gear MTD-951-11956
...
116
O-Ring, 10x2.65 MTD-951-12247
...
117
Screw, M6x30 (Incl. with oil pump assembly) MTD-NA
...
118
Oil Pump MTD-951-12248
...
119
Breather Filter Screen MTD-951-12249
...
120
Breather Spring MTD-951-12250
...
121
O-Ring, 35.5x2.65 MTD-951-12251
...
122
Breather Cover MTD-951-12252
...
123
Washer, 8.3x1.5x17 MTD-736-04560
...
124
Bolt, M8x15 MTD-710-05313
...
125
Connection Pipe MTD-951-12253
...
126
Oil Filter MTD-951-12690
...
126
Cub Cadet OIL FILTER Retail Packaged Part MTD-490-201-C010
...
126
Troy-Bilt OIL FILTER Retail Packaged Part MTD-490-201-Y010
...
127
Spark Arrester MTD-951-12316
...
128
Self-tappling Screw, ST5x8 MTD-710-05341
...
129
Clamp MTD-726-0132
...
130
Pipe Oriented MTD-951-15520
...
131
Muffler MTD-951-14468
...
a
Choke Shaft MTD-NA
...
b
Gasket MTD-NA
...
c
Choke Spring MTD-NA
...
d
Washer MTD-NA
...
e
Choke Plate MTD-NA
...
f
Idle Jet MTD-NA
...
g
O-Ring, 4x1.8G MTD-NA
...
h
Throttle Shaft Sleeve MTD-NA
...
i
Throttle Shaft MTD-NA
...
j
Throttle Plate MTD-NA
...
k
Screw, M3x5 MTD-NA
...
l
Washer, 3 MTD-NA
...
m
Gasket, Throttle Shaft MTD-NA
...
n
Gasket MTD-NA
...
o
Idle Adjusting Screw MTD-NA
...
p
Idle Jet Rivet MTD-NA
...
q
Carburetor Body MTD-NA
...
r
Fuel Nipple MTD-NA
...
s
Float Pin MTD-NA
...
t
Nozzle Tube MTD-NA
...
u
Needle Valve MTD-NA
...
v
Main Jet MTD-NA
...
w
Needle Valve Spring MTD-NA
...
x
Float MTD-NA
...
y
O-Ring, Float Bowl MTD-951-11970
...
z
Seal MTD-NA
...
aa
Float Bowl MTD-NA
...
bb
Solenoid Valve MTD-951-14676
...
cc
O-Ring, Solenoid Valve Seat MTD-NA
...
dd
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
ee
FUEL DRAIN PLUG MTD-710-04938
...
ff
O-Ring, Solenoid Valve Seat MTD-NA
...
gg
Bolt MTD-NA
...
xx
CARBURETOR KIT MTD-951-15785
...
xx
COMPLETE ENGINE 452cc MTD-952Z8P92ZUA
...
xx
CRANKSHAFT ASSEMBLY MTD-951-15784
...
xx
SHORT BLOCK MTD-651-05568
...
...
...
