MTD OHV Engines 6X65QU 159cc Engine

Model: 6X65QU 159cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

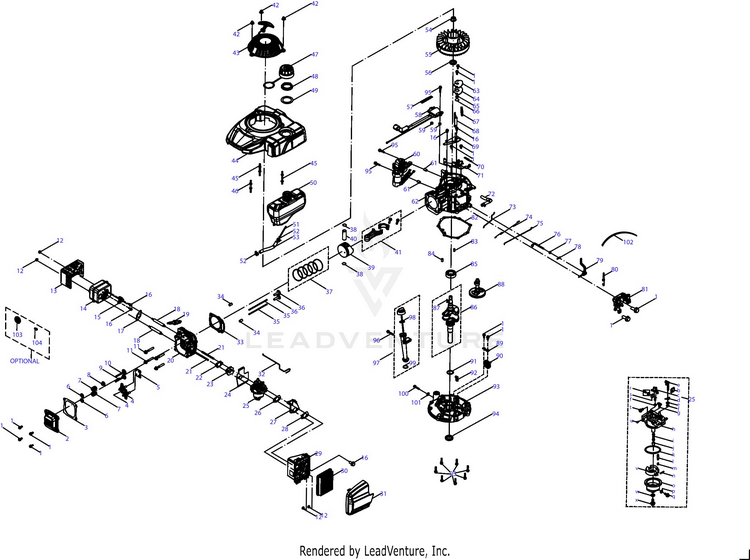

6X65QU General Assembly

...
...
1
Bolt M6x14 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
Rocker Arm Assembly MTD-951-11606
...
5
Push Rod Guide MTD-951-11687
...
6
Valve Spring Retainer MTD-951-11977
...
7
VALVE SPRING MTD-751P12004A
...
8
INTAKE VALVE SEAL MTD-921-04237A
...
9
Exhaust Valve MTD-951-14641
...
10
INTAKE VALVE MTD-951-14640A
...
11
Bolt M8x54 Cylinder Head MTD-910-06185
...
12
Nut M6X10 MTD-712-05015
...
13
Muffler Shield MTD-951-15701
...
14
Muffler Assembly MTD-951-15700
...
15
CHOKE TEMP CONTROL THERMOSTAT MTD-951-14428A
...
16
Bolt M6x12 MTD-710-04915
...
17
MUFFLER GASKET MTD-951-14427A
...
18
Muffler Stud M6x98 MTD-710-06423
...
19
Spark Plug/F5RTC MTD-951-14437
...
19
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
19
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
20
Cylinder Head MTD-951-14639
...
21
Carb Stud M6x87 MTD-951-14425
...
22
Carburetor Insulator Gasket MTD-951-11528
...
23
CARBURETOR INSULATOR MTD-951-11738A
...
24
Carburetor Gasket MTD-951-14424
...
25
Carburetor Assembly MTD-951-05531
...
26
Air Filter Bracket Gasket MTD-951-14422
...
27
Air Filter Bracket MTD-908-05265
...
28
AIR FILTER BASE GASKET MTD-951-14419A
...
29
Air Filter Base MTD-931-12769
...
30
Air Filter Element, Paper MTD-951-15245
...
30
Cub Cadet AIR FILTER Retail Packaged Part MTD-490-200-C065
...
30
Troy-Bilt AIR FILTER Retail Packaged Part MTD-490-200-Y065
...
31
AIR FILTER COVER MTD-931-12768A
...
32
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
33
Cylinder Head Gasket MTD-951-14431
...
34
Cylinder Head Dowel Pin 10x16 MTD-715-04108
...
35
Push Rod MTD-747-04862
...
36
TAPPET MTD-951-14432A
...
37
PISTON RING SET MTD-951-14433A
...
38
Piston Pin Snap Ring MTD-951-11603
...
39
PISTION MTD-951-14434A
...
40
Piston Pin MTD-951-14435
...
41
CONNECTING ROD MTD-951-14436A
...
42
ACORN NUT M6-1 MTD-712-04276A
...
43
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
44
Engine Shroud Assembly MTD-631-05436
...
45
Shroud Stud M6x78.5 MTD-951-14397
...
46
Shroud Stud M6x74 MTD-951-14819
...
47
FUEL CAP W/TETHER MTD-951-15255A
...
48
Fuel Tank Nut MTD-931-10290
...
49
Fuel Tank Upper Grommet MTD-951-14406
...
50
FUEL TANK MTD-931-12771A
...
51
FUEL FILTER MTD-951-12296A
...
51
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
52
CARBURETOR HOSE CLAMP MTD-951-11700A
...
53
FUEL HOSE MTD-935-05215A
...
54
Flywheel Nut M14 MTD-712-04287
...
55
Flywheel MTD-951-15491
...
56
Upper Crankshaft Seal MTD-951-11596
...
57
FLEXIBLE CLAMP MTD-951-11622A
...
58
Ignition Coil Assembly MTD-925-07167
...
59
Ignition Coil Spacer MTD-950-06314
...
60
Electric Starter Assembly (69:12) MTD-951-05534
...
61
DOWEL PIN MTD-715-04088A
...
62
Crankcase MTD-951-14720
...
63
Breather Cover Plate MTD-951-14404
...
64
Breather Gasket MTD-951-14405
...
65
Breather Valve Spring MTD-732-04718
...
66
Breather Valve MTD-951-11614
...
67
Breather Screen MTD-951-11730
...
68
AIR VANE MTD-951-11529A
...
69
Air Vane Bracket MTD-951-14719
...
70
ENGINE BRAKE SPRING MTD-932-05566A
...
71
Brake Assembly MTD-951-05533
...
72
Breather Hose Assembly MTD-951-15567
...
73
Choke Linkage MTD-951-15702
...
74
Throttle Linkage Spring MTD-951-14409
...
75
Throttle Linkage MTD-951-14721
...
76
GOVERNOR ARM SHAFT MTD-951-11621
...
77
OIL SEAL MTD-951-11902A
...
78
Governor Arm Shaft Cotter Pin MTD-714-04078
...
79
Governor Arm Assembly MTD-951-05160A
...
80
GOVERNOR SPRING MTD-951-14718A
...
81
Throttle Control, Two Speed MTD-951-15703
...
82
Crankcase Cover Gasket MTD-951-14415
...
83
DOWEL PIN 9 X 14 MTD-715-04096A
...
84
DOWEL PIN 9 X 14 MTD-715-04096A
...
85
Main Bearing MTD-951-11369
...
86
Crankshaft Assembly MTD-951-14417
...
87
WOODRUFF KEY MTD-751P10307A
...
88
Camshaft Assembly MTD-951-15571
...
89
Governor Gear Mounting Plate MTD-951-11609
...
90
GEAR GOVERNOR MTD-951-05336A
...
91
Crankshaft Thrust Washer MTD-736-04491
...
92
Oil Return Seal MTD-951-11733
...
93
CRANKCASE COVER MTD-951-14418A
...
94
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
95
Bolt M6x28 MTD-710-04943
...
96
Bolt M6x35 MTD-710-04980
...
97
Dipstick Assembly MTD-951-05438
...
98
O-RING MTD-921-04795A
...
99
Dipstick / Oil Fill Tube O-Ring MTD-921-04697
...
100
Oil Drain Plug MTD-710-04906
...
101
FLAT WASHER MTD-736-04440A
...
102
Plastic Tie 150Mm MTD-725-06031
...
103
SPARK ARRESTOR MTD-951-10351A
...
104
Spark Arrestor Screw MTD-710-04983
...
xx
Complete Engine MTD-952Z6X65QU
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Choke Return Spring MTD-NA
...
e
Choke Shaft Washer MTD-736-04556
...
f
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
g
Idle Jet Assembly MTD-NA
...
h
Carburetor Body MTD-NA
...
i
Emulsion Tube MTD-NA
...
j
Main Jet MTD-NA
...
k
Fuel Bowl O-Ring MTD-951-11589
...
i
Needle Valve MTD-NA
...
m
Needle Valve Spring MTD-NA
...
n
Float Pin MTD-NA
...
o
FLOAT BOWL MTD-908-05001
...
p
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
q
FUEL DRAIN PLUG MTD-710-04938
...
r
Screw M3x6 Throttle Plate MTD-NA
...
s
Throttle Plate MTD-NA
...
t
Idle Speed Adjusting Screw MTD-NA
...
u
Idle Mixture Screw MTD-NA
...
v
Float MTD-NA
...
w
FUEL BOWL GASKET MTD-951-11348A
...
x
Fuel Bowl Mounting Bolt MTD-710-04945
...
...
...
