MTD OHV Engines 690-WU Engine

Model: 690-WU Engine

Save
 Part Not Listed?Part Not Listed?
product name

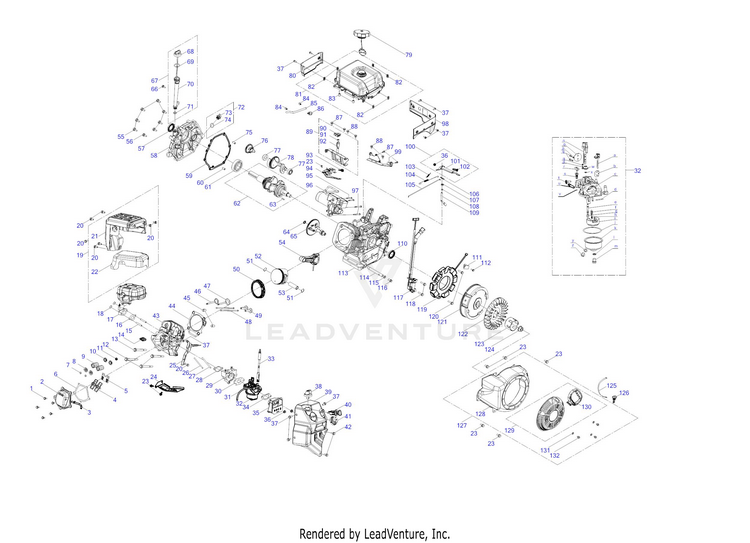

Engine Assembly 690-WU

...
...
1
BOLT M6-1 x 16 GR8.8 MTD-710-05054
...
2
VALVE COVER MTD-951-11220
...
3
BREATHER HOSE MTD-951-15424
...
4
ROCKER ARM ASSEMBLY MTD-951-11981A
...
5
PUSH ROD GUIDE MTD-951-11965B
...
6
VALVE COVER GASKET MTD-951-15425
...
7
Exhaust Valve Adjuster MTD-951-12269
...
8
EX VALVE SPRING RETAINER MTD-951-12080
...
9
VALVE SPRING MTD-951-12078
...
10
VALVE SPRING RETAINER MTD-951-12077A
...
11
INTAKE VALVE SEAL MTD-951-11964A
...
12
SCREW M10-1.25 x 87 x GR10.9 MTD-710-06064
...
13
SCREW M10-1.25 x 65 x GR10.9 MTD-710-06065
...
14
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
15
STUDS M8-1.25 x 48.5 MTD-710-04964
...
16
MUFFLER GASKET MTD-951-11212A
...
17
MUFFLER MTD-951-15426A
...
18
NUT M8 MTD-751-15427
...
19
MUFFLER SHIELD ASSEMBLY MTD-951-05388
...
20
BOLT M6-1 x 10 GR8.8 MTD-710-04914
...
21
Muffler Shroud MTD-(NOT SERVICED)
...
22
Muffler Inner Shield MTD-(NOT SERVICED)
...
23
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
24
CYLINDER BAFFLE MTD-951-11317
...
25
RECOIL SNOW GUARD MTD-951-15430
...
26
STUD MTD-951-15432
...
27
STUD M6 x 123 MTD-751-20209
...
28
CARBURETOR INSULATOR GASKET MTD-951-15434A
...
29
INSULATOR MTD-751P11316A
...
30
CARBURETOR INSULATOR GASKET MTD-951-15435
...
31
PRIMER HOSE MTD-935-05038
...
32
CARBURETOR ASSEMBLY HY-190W MTD-951-05409
...
33
CHOKE KNOB SHAFT MTD-951-15436
...
34
HEATER BOX CARBURETOR GASKET MTD-951-15448
...
35
HEATER BOX MTD-951-15449
...
36
HEX NUT MTD-712-05015
...
37
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
38
CHOKE KNOB MTD-951-15450A
...
39
CONTROL PANEL MTD-951-15452
...
40
ENGINE KEY SWITCH ASSEMBLY MTD-951-15022A
...
40
IGNITION SWITCH (Not Shown) MTD-951-10637
...
41
PRIMER MTD-951-10639B
...
42
SCREW M6-1 x 20 CL5.8 MTD-710-05192
...
43
CYLINDER HEAD ASSEMBLY MTD-951-05405
...
44
CYLINDER HEAD GASKET MTD-951-12094
...
45
DOWEL PIN MTD-715-04097
...
46
EXHAUST VALVE MTD-951-14224
...
47
INTAKE VALVE MTD-951-14225
...
48
PUSH ROD MTD-951-14226A
...
49
TAPPET MTD-951-11962A
...
50
PISTON RING KIT MTD-951-12593
...
51
PISTON PIN SNAP RING MTD-951-11953A
...
52
PISTON MTD-951-12092
...
53
PISTON PIN MTD-951-11954A
...
54
CONNECTING ROD MTD-951-11951
...
54
BOLT M8-1.25 x 38 GR10.9 (Not Shown) MTD-710-05319
...
55
SCREW M8-1.25 x 38 GR10.9 MTD-710-06061
...
56
BOLT M8 x 45 MTD-710-06289
...
57
OIL SEAL MTD-951-11375A
...
58
CRANKCASE COVER MTD-951-15454
...
59
CRANKCASE COVER GASKET MTD-951-15455A
...
60
DOWEL PIN MTD-715-04102
...
61
BALL BEARING MTD-951-15456
...
62
CRANKSHAFT ASSEMBLY MTD-951-05407
...
63
WOODRUFF KEY MTD-751P10307A
...
64
WASHER MTD-736-04476
...
65
CAMSHAFT MTD-951-11959B
...
66
BOLT M6-1 x 18 GR8.8 MTD-710-05003
...
67
DIPSTICK OIL ASSEMBLY MTD-951-05391A
...
68
OIL DIPSTICK INDICATOR MTD-951-15457
...
69
O-RING MTD-921-04663A
...
70
OIL DIPSTICK TUBE MTD-951-15458
...
71
O-RING MTD-951-15459
...
72
OIL DRAIN PLUG MTD-951-05392A
...
73
Oil Plug MTD-(NOT SERVICED)
...
74
O-RING MTD-951-11960
...
75
DOWEL PIN 9 X 14 MTD-715-04096A
...
76
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11956
...
77
BALL BEARING MTD-951-15463
...
78
BALANCE GEAR ASSEMBLY MTD-951-12095
...
79
FUEL CAP MTD-951-15172A
...
80
FUEL TANK BACK PANEL MTD-951-15464
...
81
FUEL TANK ASSEMBLY MTD-951-05394
...
82
THREADED TAB MTD-951-15465
...
83
BUSHING MTD-951-15466
...
84
CARBURETOR HOSE CLAMP MTD-951-11700A
...
85
FUEL HOSE MTD-951-15467
...
86
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
87
BOLT MTD-710-06537
...
88
BOLT M8-1.25 x 14 GR8.8 MTD-710-04921
...
89
FUEL TANK MOUNTING BRACKET MTD-951-05395
...
90
RUBBER GROMMET MTD-951-15469
...
91
RUBBER GROMMET MTD-951-15470
...
92
FUEL TANK MOUNTING BRACKET MTD-951-15471
...
93
THROTTLE LEVER KNOB MTD-751P10757A
...
94
THROTTLE CONTROL MTD-951-11311
...
95
SCREW MTD-751-15472
...
96
ELECTRIC STARTER MTD-951-15492
...
97
BOLT M8-1.25 x 55 GR8.8 MTD-710-04967
...
98
FUEL TANK FRONT PANEL MTD-951-15474A
...
99
FUEL TANK BASE BRACKET MTD-951-15475
...
100
GOVERNOR ARM ASSEMBLY MTD-951-14217
...
101
GOVERNOR ARM BRACKET MTD-951-11307
...
102
BOLT M6-1 x 21 MTD-710-04908
...
103
GOVERNOR SPRING MTD-951-11306
...
104
IDLE SPRING MTD-951-15476
...
105
GOVERNOR ROD MTD-951-11309
...
106
GOVERNOR SHAFT CLIP MTD-714-04077
...
107
GOVERNOR SEAL MTD-951-11958
...
108
FLAT WASHER MTD-736-04453
...
109
GOVERNOR SHAFT MTD-951-15477
...
110
OIL SEAL MTD-951-11499A
...
111
ALTERNATOR WIRE MTD-951-11186
...
112
BOLT M6-1 x 8 GR8.8 MTD-710-04966
...
113
CRANKCASE COMPLETE MTD-951-14222
...
114
OIL DRAIN PIPE MTD-951-11350
...
115
FLAT WASHER MTD-736-04440A
...
116
OIL DRAIN PLUG MTD-710-04906
...
117
IGNITION MODULE MTD-951-15478
...
118
IGNITION COIL BOLT M6-1 x 28 GR8.8 MTD-710-05350
...
119
ALTERNATOR MTD-951-15479
...
120
BOLT-M6-1 x 30 GR8.8 MTD-710-04969
...
121
ENGINE FLYWHEEL MTD-951-12556
...
122
COOLING FAN MTD-951-11313A
...
123
STARTER CUP MTD-951-11314
...
124
FLYWHEEL NUT M16X1.5 MTD-712-05169
...
126
IGNITION KEY MTD-951-10630
...
127
BLOWER HOUSING ASSEMBLY MTD-951-05396
...
128
BLOWER HOUSING MTD-951-15481
...
129
RECOIL START ASSEMBLY MTD-951-05397A
...
130
STARTER HANDLE MTD-731-05696
...
131
FLAT WASHER MTD-736-04455B
...
132
BOLT M6 x 10 MTD-710-06354
...
a
Choke Shaft MTD-(NOT SERVICED)
...
b
Choke Plate MTD-(NOT SERVICED)
...
c
Carburetor Body MTD-(NOT SERVICED)
...
d
Float Pin MTD-(NOT SERVICED)
...
e
Nozzle Tube MTD-(NOT SERVICED)
...
f
Needle Valve MTD-(NOT SERVICED)
...
g
Main Jet MTD-(NOT SERVICED)
...
h
Needle Valve Spring MTD-(NOT SERVICED)
...
i
Float MTD-(NOT SERVICED)
...
j
FUEL BOWL GASKET MTD-951-11970
...
k
FLOAT BOWL MTD-951-15487
...
l
FUEL BOWL GASKET MTD-951-11348A
...
m
BOLT M8-1 x 10 MTD-710-04945
...
n
Throttle Shaft MTD-(NOT SERVICED)
...
o
Throttle Plate MTD-(NOT SERVICED)
...
p
LOCK WASHER MTD-736-04638A
...
q
Screw, M3?6 MTD-(NOT SERVICED)
...
r
Idle Jet Rivet MTD-(NOT SERVICED)
...
s
Idle Jet MTD-(NOT SERVICED)
...
t
Idle Adjusting Screw MTD-(NOT SERVICED)
...
v
Primer Line MTD-(NOT SERVICED)
...
w
Throttle Shaft Sleeve MTD-(NOT SERVICED)
...
x
Gasket MTD-(NOT SERVICED)
...
y
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
z
FUEL DRAIN PLUG MTD-710-04938
...
xx
COMPLETE ENGINE 420cc (Not Shown) MTD-952Z690-WUB
...
xx
SHORT BLOCK ASSEMBLY (Not Shown) MTD-951-05406
...
xx
CARBURETOR SERVICE KIT (Not Shown) MTD-951-05417
...
xx
INTERNAL GASKET KIT (Not Shown) MTD-951-05418
...
xx
EXTERNAL GASKET KIT (Not Shown) MTD-951-05419
...
xx
HEAT SHIELD MTD-751P19088
...
...
...
