MTD OHV Engines 5T65RUB 140cc Engine MTD OHV Engine

Model: 5T65RUB 140cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

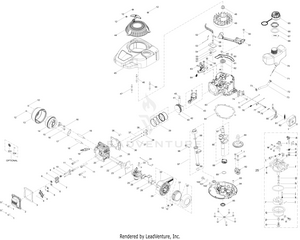

5T65RUB General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-908-05094
...
3
VALVE COVER GASKET MTD-751P18586A
...
4
ROCKER ARM ASSEMBLY MTD-951-11606
...
5
PUSH ROD GUIDE MTD-951-11687
...
6
VALVE SPRING RETAINER MTD-951-11977
...
7
VALVE SPRING MTD-751P12004A
...
8
INTAKE VALVE SEAL MTD-921-04705
...
9
EXHAUST VALVE MTD-951-14641
...
10
INTAKE VALVE MTD-951-14640A
...
11
SCREW M8 x 54 GR10 MTD-710-06200
...
12
HEX NUT MTD-712-05015
...
13
MUFFLER SHIELD MTD-951-14693A
...
14
MUFFLER ASSEMBLY MTD-951-14737
...
15
THERMOSTAT CONTROL CHOKE MTD-951-14736
...
16
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
17
MUFFLER GASKET MTD-951-14427A
...
18
STUD M6-1 x 76 MTD-710-06204
...
19
SPARK PLUG MTD-951-14437
...
19
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
19
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
20
CYLINDER HEAD MTD-951-14689
...
21
CARBURETOR STUD-M6 x 87 MTD-951-14425
...
22
CARBURETOR INSULATOR GASKET MTD-751P18606A
...
23
CARBURETOR INSULATOR MTD-951-11738A
...
24
CARBURETOR GASKET MTD-921-04706
...
25
CARBURETOR MTD-651P07515
...
26
AIR FILTER BASE GASKET MTD-951-14419A
...
27
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
28
AIR FILTER BRACKET GASKET MTD-721P05942A
...
29
AIR FILTER ASSEMBLY MTD-951-05165
...
30
AIR FILTER BASE MTD-731P10372
...
31
PAPER AIR FILTER MTD-951-14628A
...
31
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-490-200-M057
...
32
AIR FILTER COVER MTD-731P10360
...
33
BREATHER HOSE MTD-735-05054
...
34
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
35
HEAD GASKET MTD-751P18607A
...
36
DOWEL PIN MTD-715-04108
...
37
PUSH ROD MTD-747-04862
...
38
TAPPET (LIFTER) MTD-951-11607
...
39
PISTON RING SET MTD-951-14433A
...
40
SNAP RING-PISTON PIN MTD-951-11603
...
41
PISTON PIN MTD-951-14435
...
42
PISTION MTD-951-14434A
...
43
CONNECTING ROD ASSEMBLY MTD-951-05163
...
44
STARTER RECOIL ASSEMBLY MTD-951-05320A
...
45
ENGINE SHROUD ASSEMBLY MTD-931-05602
...
46
STUD M6 x 75 MTD-710-06208
...
47
STUD M6 x 73 MTD-710-06209
...
48
FLYWHEEL NUT MTD-712-04287
...
49
ENGINE FLYWHEEL MTD-925-06190A
...
50
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
51
IGNITION COIL ASSEMBLY MTD-925-07218
...
52
AIR VANE MTD-931-10292
...
53
ENGINE CHOKE MTD-951-14562
...
54
BREATHER COVER PLATE MTD-908-05092
...
55
BREATHER COVER GASKET MTD-921-04703
...
56
BREATHER VALVE SPRING MTD-732-04718
...
57
BREATHER VALVE MTD-951-11614
...
58
PIVOT VANE STUD MTD-951-14734
...
59
FLAT WASHER 6x1x18 MTD-736P05099
...
60
BOLT M6-1 x 10 GR8.8 MTD-710-04914
...
61
SHROUD COVER PLATE MTD-908-05269
...
62
UPPER CRANKSHAFT SEAL MTD-921-04700
...
63
ENGINE BRAKE ASSEMBLY MTD-951-05551
...
64
BRAKE SPRING MTD-932-05580
...
65
FUEL CAP W/TETHER MTD-951-15255A
...
66
FUEL TANK NUT MTD-931-10290
...
67
FUEL TANK UPPER GROMMET MTD-951-14406
...
68
FUEL TANK DUST CAP MTD-735P05052
...
70
FUEL TANK MTD-931-10291A
...
71
FUEL FILTER MTD-951-12296A
...
71
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
72
CARBURETOR HOSE CLAMP MTD-951-11700A
...
73
FUEL HOSE MTD-735-05053A
...
74
COMPONENT BRACKET MTD-908-05135
...
75
THROTTLE LINKAGE MTD-951-14696
...
76
THROTTLE LINKAGE SPRING MTD-732P05188A
...
77
GOVERNOR ARM SHAFT MTD-951-11621
...
78
OIL SEAL MTD-951-11902A
...
79
COTTER PIN MTD-714-04078
...
80
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
81
GOVERNOR SPRING MTD-951-14411
...
82
GOVERNOR SHIELD MTD-931-10287
...
83
CRANKCASE MTD-751P18608
...
84
CRANKCASE COVER GASKET MTD-751P18609A
...
86
CRANKSHAFT MTD-751P19708
...
87
WOODRUFF KEY MTD-751P10307A
...
88
GEAR MTD-931-10288A
...
89
THRUST WASHER MTD-736-04491
...
90
CAMSHAFT MTD-751P18628A
...
91
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
92
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
93
DOWEL PIN 9 X 14 MTD-715-04096A
...
94
CRANKCASE COVER MTD-951-14735
...
95
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
96
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
97
DIPSTICK MTD-651-05552
...
98
O-RING MTD-921-04795A
...
99
O-RING MTD-921-04697
...
100
OIL DRAIN PLUG MTD-710-04906
...
101
FLAT WASHER MTD-736-04440A
...
102
DOWEL PIN 9 X 14 MTD-715-04096A
...
103
SPARK ARRESTOR MTD-951-10351A
...
104
SCREW M3.5 x 9.5 MTD-710-04983
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Choke Return Spring MTD-NA
...
d
Choke Shaft Washer MTD-NA
...
e
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
f
Carburetor Body MTD-NA
...
g
Emulsion Tube MTD-NA
...
h
Main Jet MTD-NA
...
i
FUEL BOWL O-RING MTD-951-11589
...
j
NEEDLE VALVE MTD-793P00165A
...
k
NEEDLE VALVE SPRING MTD-732P05251A
...
l
HINGE FLOAT PIN MTD-711-06043
...
m
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
n
FUEL DRAIN PLUG MTD-710-04938
...
o
BOLT M8-1 x 10 MTD-710-04945
...
p
FUEL BOWL GASKET MTD-951-11348A
...
q
FLOAT BOWL MTD-908-05001
...
r
FLOAT MTD-731P09132A
...
s
Idle Mixture Screw MTD-NA
...
t
Idle Speed Adjusting Screw MTD-NA
...
u
Throttle Plate MTD-NA
...
v
Throttle Plate Lock Washer MTD-NA
...
w
Screw M3×6 Throttle Plate MTD-NA
...
x
Throttle Shaft MTD-NA
...
y
Idle Jet Assembly MTD-NA
...
xx
COMPLETE ENGINE 140cc MTD-952Z5T65RUB
...
...
...
