MTD OHV Engines 490-SU Engine 2009 & Before

Model: 490-SU Engine 2009 & Before

Save
 Part Not Listed?Part Not Listed?
product name

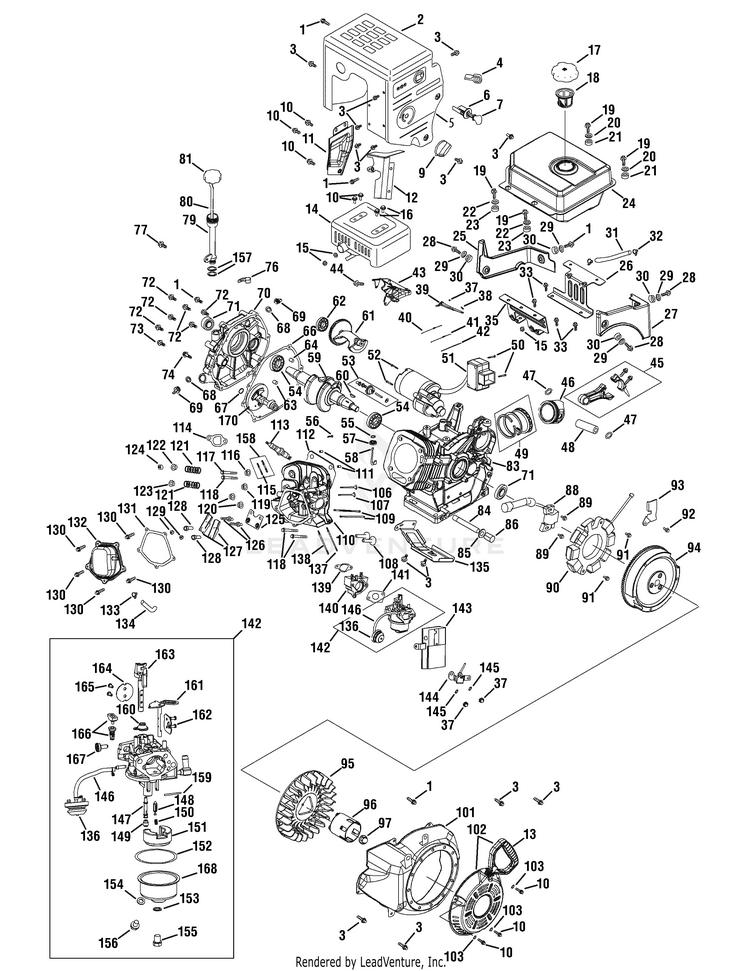

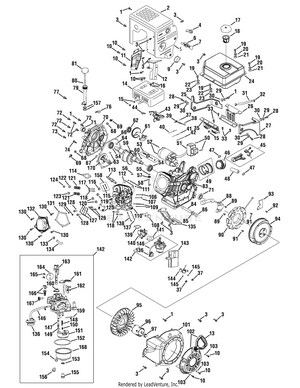

Engine Assembly 490-SU

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Muffler Shield MTD-951-11339
...
3
Bolt, M6 x 12 MTD-710-04915
...
4
Throttle Control Knob MTD-951-11224
...
5
Control Panel MTD-951-11595
...
6
Ignition Switch Assembly MTD-951-10637
...
7
Ignition Key MTD-951-10630
...
9
Choke Knob MTD-951-11302
...
10
Bolt, Flange, M6 x 10 MTD-710-04914
...
11
Muffler Baffle MTD-951-11181
...
12
Carburetor Heat Shield MTD-951-11321
...
13
Starter Handle MTD-731-05696
...
14
Muffler Assembly MTD-951-11338
...
15
Nut, M8 x 1.25 MTD-712-04219
...
16
Bolt MTD-710-05051
...
17
Fuel Cap Assembly MTD-951-12533
...
18
Fuel Filter MTD-951-10652
...
19
Flange Bolt, M8 x 20 MTD-710-04970
...
20
Flat Washer MTD-736-04450
...
21
Bushing MTD-750-05312
...
22
Flat Washer MTD-736-04451
...
23
Bushing MTD-750-05313
...
24
Fuel Tank MTD-951-11201
...
25
Fuel Tank Shroud MTD-951-11319
...
26
Fuel Tank Mounting Bracket MTD-951-11318
...
27
Engine Shroud MTD-951-11351
...
28
Bolt, Flange M6 x 16 MTD-710-04968
...
29
Flat Washer MTD-736-04452
...
30
Bushing MTD-750-05314
...
31
Fuel Line Furnish 951-11336, Fuel Line Kit MTD-NA
...
32
Fuel Line Clamp Furnish 951-11336, Fuel Line Kit MTD-NA
...
33
Bolt, Flange, M8 x 14 MTD-710-04921
...
35
Fuel Tank Mounting Bracket MTD-951-11182
...
37
Nut M6 MTD-712-05015
...
38
Bolt, M6 x 21, Governor Arm MTD-710-04908
...
39
Governor Arm Bracket MTD-951-11307
...
40
Governor Spring MTD-951-11306
...
41
Throttle Return Spring MTD-951-11203
...
42
Governor Rod MTD-951-11309
...
43
Throttle Control Assembly MTD-951-11311
...
44
Bolt, Flange, M6 x 14 MTD-710-04916
...
45
Connecting Rod Ass’y Complete Furnish 951-11360, Short Block Assembly MTD-NA
...
46
Piston Furnish 951-11360, Short Block Assembly MTD-NA
...
47
Piston Pin Clip Furnish 951-11360, Short Block Assembly MTD-NA
...
48
Piston Pin Furnish 951-11360, Short Block Assembly MTD-NA
...
49
Piston Ring Set - Complete Furnish 951-11360, Short Block Assembly MTD-NA
...
50
Screw, M4 x 55 MTD-710-04965
...
51
Electric Starter MTD-951-11196
...
52
Flange Bolt, M8 x 55 MTD-710-04967
...
53
Governor Assembly Furnish 951-11360, Short Block Assembly MTD-NA
...
54
Bearing MTD-951-11373
...
54
Bearing Furnish 951-11360, Short Block Assembly MTD-951-11373
...
54
Bearing Furnish 951-11340, Crankcase Cover Kit MTD-951-11373
...
54
Bearing Furnish 951-11358, Crankshaft Kit MTD-951-11373
...
54
Bearing Furnish 951-11359, Crankcase Kit MTD-951-11373
...
55
Governor Shaft Washer MTD-736-04453
...
55
Governor Shaft Washer Furnish 951-11360, Short Block Assembly MTD-736-04453
...
56
Governor Shaft Clip MTD-714-04077
...
56
Governor Shaft Clip Furnish 951-11360, Short Block Assembly MTD-714-04077
...
57
Oil Seal - Governor Shaft Furnish 951-11362, Gasket Kit Complete MTD-NA
...
57
Oil Seal - Governor Shaft Furnish 951-11360, Short Block Assembly MTD-NA
...
57
Oil Seal - Governor Shaft Furnish 951-11359, Crankcase Kit MTD-NA
...
58
Governor Arm Shaft MTD-951-11365
...
58
Governor Arm Shaft Furnish 951-11360, Short Block Assembly MTD-951-11365
...
59
Crankshaft Assembly Furnish 951-11360, Short Block Assembly MTD-NA
...
59
Crankshaft Assembly Furnish 951-11358, Crankshaft Kit MTD-NA
...
60
WOODRUFF KEY MTD-751P10307A
...
60
WOODRUFF KEY Furnish 951-11360, Short Block Assembly MTD-751P10307A
...
60
WOODRUFF KEY Furnish 951-11358, Crankshaft Kit MTD-751P10307A
...
61
Balance Shaft Furnish 951-11360, Short Block Assembly MTD-NA
...
62
Bearing Furnish 951-11360, Short Block Assembly MTD-NA
...
63
Dowel Pin MTD-715-04102
...
63
Dowel Pin Furnish 951-11360, Short Block Assembly MTD-715-04102
...
64
DOWEL PIN 9 X 14 MTD-715-04096A
...
64
DOWEL PIN 9 X 14 Furnish 951-11360, Short Block Assembly MTD-715-04096A
...
66
Crankcase Cover Gasket MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11362, Gasket Kit Complete MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11360, Short Block Assembly MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11340, Crankcase Cover Kit MTD-951-11376
...
67
Washer MTD-736-04476
...
67
Washer Furnish 951-11360, Short Block Assembly MTD-736-04476
...
67
Washer Furnish 951-11340, Crankcase Cover Kit MTD-736-04476
...
68
O-Ring Furnish 951-11345, Oil Filler Plug Assembly MTD-NA
...
69
Oil Fill Plug Furnish 951-11345, Oil Filler Plug Assembly MTD-NA
...
70
Crankcase Cover Furnish 951-11360, Short Block Assembly MTD-NA
...
70
Crankcase Cover Furnish 951-11340, Crankcase Cover Kit MTD-NA
...
71
OIL SEAL MTD-951-11375A
...
71
OIL SEAL Furnish 951-11362, Gasket Kit Complete MTD-951-11375A
...
71
OIL SEAL Furnish 951-11360, Short Block Assembly MTD-951-11375A
...
71
OIL SEAL Furnish 951-11340, Crankcase Cover Kit MTD-951-11375A
...
71
OIL SEAL Furnish 951-11358, Crankshaft Kit MTD-951-11375A
...
71
OIL SEAL Furnish 951-11359, Crankcase Kit MTD-951-11375A
...
72
BOLT M8×38 MTD-710-06061
...
72
BOLT M8×38 Furnish 951-11360, Short Block Assembly MTD-710-06061
...
72
BOLT M8×38 Furnish 951-11340, Crankcase Cover Kit MTD-710-06061
...
73
Bolt M8×45 MTD-710-06062
...
73
Bolt M8×45 Furnish 951-11360, Short Block Assembly MTD-710-06062
...
73
Bolt M8×45 Furnish 951-11340, Crankcase Cover Kit MTD-710-06062
...
74
BOLT M8×35 MTD-710-06063
...
74
BOLT M8×35 Furnish 951-11360, Short Block Assembly MTD-710-06063
...
74
BOLT M8×35 Furnish 951-11340, Crankcase Cover Kit MTD-710-06063
...
76
Oil Tube Support Bracket MTD-951-11320
...
77
Flange Bolt M6 x 16 MTD-710-04968
...
79
Dipstick Tube MTD-951-11206
...
80
Dipstick Furnish 951-11205, Dipstick Assembly MTD-NA
...
81
Oil Cap Furnish 951-11205, Dipstick Assembly MTD-NA
...
83
Crankcase Furnish 951-11360, Short Block Assembly MTD-NA
...
83
Crankcase Furnish 951-11359, Crankcase Kit MTD-NA
...
84
Oil Drain Pipe MTD-951-11350
...
84
Oil Drain Pipe Furnish 951-11360, Short Block Assembly MTD-951-11350
...
84
Oil Drain Pipe Furnish 951-10641, Oil Drain Assembly MTD-951-11350
...
85
FLAT WASHER MTD-736-04440A
...
85
FLAT WASHER Furnish 951-11362, Gasket Kit Complete MTD-736-04440A
...
85
FLAT WASHER Furnish 951-11360, Short Block Assembly MTD-736-04440A
...
85
FLAT WASHER Furnish 951-11363, Gasket Kit External MTD-736-04440A
...
85
FLAT WASHER Furnish 951-10641, Oil Drain Assembly MTD-736-04440A
...
86
Oil Drain Plug MTD-710-04906
...
86
Oil Drain Plug Furnish 951-11360, Short Block Assembly MTD-710-04906
...
86
Oil Drain Plug Furnish 951-10641, Oil Drain Assembly MTD-710-04906
...
88
Ignition Coil Assembly MTD-951-11305A
...
89
Bolt M6×28 MTD-710-04931
...
90
Stator MTD-951-11216
...
91
Flange Bolt, M6 x 30 MTD-710-04969
...
92
Flange Bolt, M6 x 8 MTD-710-04966
...
93
Alternator Wire Clamp Bracket MTD-951-11186
...
94
Flywheel MTD-951-11312
...
95
COOLING FAN MTD-951-11313A
...
96
Starter Cup MTD-951-11314
...
97
Nut, M16 x 1.5 MTD-712-04220
...
101
Blower Housing MTD-951-11211
...
102
Recoil Starter Assembly MTD-951-14223
...
103
FLAT WASHER MTD-736-04455B
...
106
Exhaust Valve Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
106
Exhaust Valve Furnish 951-11337, Valve Kit MTD-NA
...
107
Intake Valve Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
107
Intake Valve Furnish 951-11337, Valve Kit MTD-NA
...
108
Valve Lifter (Tappet) Furnish 951-11360, Short Block Assembly MTD-NA
...
109
Push Rod Furnish 951-11335, Push Rod Kit MTD-NA
...
110
Cylinder Head Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
111
Dowel Pin, 12 x 20 MTD-715-04097
...
111
Dowel Pin, 12 x 20 Furnish 951-11360, Short Block Assembly MTD-715-04097
...
112
Cylinder Head Gasket Furnish 951-11362, Gasket Kit Complete MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11360, Short Block Assembly MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11357, Cylinder Hear Kit MTD-NA
...
113
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
114
MUFFLER GASKET MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11362, Gasket Kit Complete MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11360, Short Block Assembly MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11361, Cylinder Head Assembly MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11363, Gasket Kit External MTD-951-11212A
...
115
Exhaust Stud MTD-710-04964
...
115
Exhaust Stud Furnish 951-11361, Cylinder Head Assembly MTD-710-04964
...
115
Exhaust Stud Furnish 951-11207, Exhaust Stud Assembly MTD-710-04964
...
116
Flex Washer MTD-736-04478
...
117
Head Bolt MTD-710-05039
...
117
Head Bolt Furnish 951-11360, Short Block Assembly MTD-710-05039
...
117
Head Bolt Furnish 951-11361, Cylinder Head Assembly MTD-710-05039
...
117
Head Bolt Furnish 951-11357, Cylinder Hear Kit MTD-710-05039
...
118
Bolt, M10 x 1.25 x 87 MTD-710-05053
...
118
Bolt, M10 x 1.25 x 87 Furnish 951-11360, Short Block Assembly MTD-710-05053
...
118
Bolt, M10 x 1.25 x 87 Furnish 951-11361, Cylinder Head Assembly MTD-710-05053
...
118
Cylinder Head Bolts Furnish 951-11357, Cylinder Hear Kit MTD-710-05053
...
119
Intake Valve Seal Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
119
Valve Seal Furnish 951-11357, Cylinder Hear Kit MTD-NA
...
120
Valve Spring Retainer Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
121
Valve Spring Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
122
Valve Spring Retainer -Exhaust Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
123
Valve Spring Retainer-Intake Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
124
Exhaust Valve Cap Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
125
Push Rod Guide Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
126
Rocker Stud Bolt MTD-710-04962
...
126
Rocker Stud Bolt Furnish 951-11361, Cylinder Head Assembly MTD-710-04962
...
127
Rocker Arm Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
128
Pivot Adjusting Nut MTD-751-11123
...
128
Pivot Adjusting Nut Furnish 951-11361, Cylinder Head Assembly MTD-751-11123
...
129
Pivot Locking Nut MTD-751-11124
...
129
Pivot Locking Nut Furnish 951-11361, Cylinder Head Assembly MTD-751-11124
...
130
Bolt -Valve Cover, M6 x 16 MTD-710-05054
...
131
Valve Cover Gasket Furnish 951-11362, Gasket Kit Complete MTD-NA
...
131
Valve Cover Gasket Furnish 951-11360, Short Block Assembly MTD-NA
...
131
Valve Cover Gasket Furnish 951-11361, Cylinder Head Assembly MTD-NA
...
131
Valve Cover Gasket Furnish 951-11363, Gasket Kit External MTD-NA
...
131
Valve Cover Gasket Furnish 951-11333, Valve Cover Kit MTD-NA
...
131
Valve Cover Gasket Furnish 951-11357, Cylinder Hear Kit MTD-NA
...
132
Valve Cover MTD-951-11220
...
132
Valve Cover Furnish 951-11333, Valve Cover Kit MTD-951-11220
...
133
Breather Hose Clip MTD-726-04101
...
134
Breather Hose MTD-951-11221
...
135
Cylinder Baffle MTD-951-11317
...
136
PRIMER MTD-951-10639B
...
136
PRIMER Furnish 951-11352, Carburetor Assembly MTD-951-10639B
...
137
Carburetor Stud, M6 x 8 x 98 MTD-710-05055
...
137
Carburetor Stud, M6 x 8 x 98 Furnish 951-11361, Cylinder Head Assembly MTD-710-05055
...
138
Carburetor Stud, M6 x 8 x 118 MTD-710-05056
...
138
Carburetor Stud, M6 x 8 x 118 Furnish 951-11361, Cylinder Head Assembly MTD-710-05056
...
139
Carb Insulator Gasket MTD-951-11315
...
139
Carb Insulator Gasket Furnish 951-11362, Gasket Kit Complete MTD-951-11315
...
139
Carb Insulator Gasket Furnish 951-11360, Short Block Assembly MTD-951-11315
...
139
Carb Insulator Gasket Furnish 951-11361, Cylinder Head Assembly MTD-951-11315
...
139
Carb Insulator Gasket Furnish 951-11363, Gasket Kit External MTD-951-11315
...
140
Carburetor Insulator MTD-951-11353
...
140
Carburetor Insulator Furnish 951-11362, Gasket Kit Complete MTD-951-11353
...
140
Carburetor Insulator Furnish 951-11360, Short Block Assembly MTD-951-11353
...
140
Carburetor Insulator Furnish 951-11361, Cylinder Head Assembly MTD-951-11353
...
140
Carburetor Insulator Furnish 951-11363, Gasket Kit External MTD-951-11353
...
141
Carburetor Gasket MTD-951-11354
...
141
Carburetor Gasket Furnish 951-11362, Gasket Kit Complete MTD-951-11354
...
141
Carburetor Gasket Furnish 951-11363, Gasket Kit External MTD-951-11354
...
142
Carburetor Assembly MTD-951-11352A
...
142
Carburetor Assembly (Incl. Ref No. 136, 147-156, 159-168) MTD-951-11352A
...
143
Heater Box MTD-951-11304
...
144
Choke Assembly MTD-951-11192
...
145
Lock Washer MTD-736-04477
...
146
Primer Hose MTD-951-10324
...
147
Main Nozzle Furnish 951-11355, Carburetor Kit Major MTD-NA
...
147
Main Nozzle Furnish 951-11352, Carburetor Assembly MTD-NA
...
148
Needle Valve Furnish 951-11355, Carburetor Kit Major MTD-NA
...
148
Needle Valve Furnish 951-11352, Carburetor Assembly MTD-NA
...
149
Main Jet Furnish 951-11355, Carburetor Kit Major MTD-NA
...
149
Main Jet Furnish 951-11352, Carburetor Assembly MTD-NA
...
150
Needle Valve Spring Furnish 951-11355, Carburetor Kit Major MTD-NA
...
150
Needle Valve Spring Furnish 951-11352, Carburetor Assembly MTD-NA
...
151
Float Furnish 951-11355, Carburetor Kit Major MTD-NA
...
151
Float Furnish 951-11352, Carburetor Assembly MTD-NA
...
152
Bowl Gasket Furnish 951-11355, Carburetor Kit Major MTD-NA
...
152
Bowl Gasket Furnish 951-11352, Carburetor Assembly MTD-NA
...
153
FUEL BOWL GASKET MTD-951-11348A
...
153
FUEL BOWL GASKET Furnish 951-11355, Carburetor Kit Major MTD-951-11348A
...
153
FUEL BOWL GASKET Furnish 951-11352, Carburetor Assembly MTD-951-11348A
...
154
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
154
FUEL DRAIN PLUG GASKET Furnish 951-11355, Carburetor Kit Major MTD-951-11349A
...
154
FUEL DRAIN PLUG GASKET Furnish 951-11352, Carburetor Assembly MTD-951-11349A
...
155
Fuel Bowl Mounting Bolt MTD-710-04945
...
155
Fuel Bowl Mounting Bolt Furnish 951-11352, Carburetor Assembly MTD-710-04945
...
156
FUEL DRAIN PLUG MTD-710-04938
...
156
FUEL DRAIN PLUG Furnish 951-11352, Carburetor Assembly MTD-710-04938
...
157
O-Ring MTD-951-11381
...
158
Exhaust Stud Assembly (Incl. Ref No. 115) MTD-951-11207
...
159
Float Pin Furnish 951-11355, Carburetor Kit Major MTD-NA
...
159
Float Pin Furnish 951-11352, Carburetor Assembly MTD-NA
...
160
Throttle Pressure Plate Furnish 951-11355, Carburetor Kit Major MTD-NA
...
160
Throttle Pressure Plate Furnish 951-11352, Carburetor Assembly MTD-NA
...
161
Choke Shaft Furnish 951-11352, Carburetor Assembly MTD-NA
...
162
Choke Plate Furnish 951-11352, Carburetor Assembly MTD-NA
...
163
Throttle Shaft Furnish 951-11352, Carburetor Assembly MTD-NA
...
164
Throttle Plate Furnish 951-11352, Carburetor Assembly MTD-NA
...
165
Screw Furnish 951-11352, Carburetor Assembly MTD-NA
...
166
Idle Jet Assembly Furnish 951-11352, Carburetor Assembly MTD-NA
...
167
Idle Speed Adjusting Screw Furnish 951-11352, Carburetor Assembly MTD-NA
...
168
Fuel Bowl Furnish 951-11352, Carburetor Assembly MTD-NA
...
170
Camshaft Assembly Furnish 951-11360, Short Block Assembly MTD-NA
...
xx
Oil Drain Assembly Not Shown (Incl. Ref No. 84-86) MTD-951-10641
...
xx
Fuel Tank Nipple Not Shown MTD-951-10651
...
xx
Dipstick Assembly Not Shown (Incl. Ref No. 80-81) MTD-951-11205
...
xx
Valve Cover Kit Not Shown (Incl. Ref No. 131-132) MTD-951-11333
...
xx
Push Rod Kit Not Shown (Incl. Ref No. 109) MTD-951-11335
...
xx
Fuel Line Kit Not Shown (Incl. Ref No. 31 & 32) MTD-951-11336
...
xx
Valve Kit Not Shown (Incl. Ref No. 106-107) MTD-951-11337
...
xx
Crankcase Cover Kit Not Shown (Incl. Ref No. 54, 66, 67, 70-74) MTD-951-11340A
...
xx
Oil Filler Plug Assembly Not Shown (Incl. Ref No. 68-69) MTD-951-11345
...
xx
CARBURETOR KIT Not Shown (Incl. Ref No. 147-154, 159-160) MTD-951-14231
...
xx
Cylinder Head Kit Not Shown (Incl. Ref No. 112,117-119, 131) MTD-951-11357
...
xx
Crankshaft Kit Not Shown (Incl. Ref No. 54, 59, 60 & 71) MTD-951-11358
...
xx
Crankcase Kit Not Shown (Incl. Ref No. 54, 57, 71, 83) MTD-951-11359A
...
xx
Shortblock Assembly Not Shown (Incl. Ref No. 45-49, 53-67, 70-74, 83-86, 108,111, 112, 114, 117, 118, 131, 139, 140 & 170) MTD-951-11360
...
xx
Cylinder Head Assembly Not Shown (Incl. Ref No. 106, 107, 110, 112, 114, 115, 117-129, 131, 137-140) MTD-951-11361
...
xx
Gasket Kit - Complete Not Shown (Incl. Ref No. 57, 66, 71, 85, 112, 114, 131, 139-141) MTD-951-11362
...
xx
Gasket Kit - External Not Shown (Incl. Ref No. 85, 114, 131, 139-141) MTD-951-11363
...
xx
Engine Complete Not Shown MTD-952Z490-SUC
...
xx
WEATHER SHIELD MTD-751-19189
...
...
...
Processing
