MTD OHV Engines 365-SUB Engine 2010 & After

Model: 365-SUB Engine 2010 & After

Save
 Part Not Listed?Part Not Listed?
product name

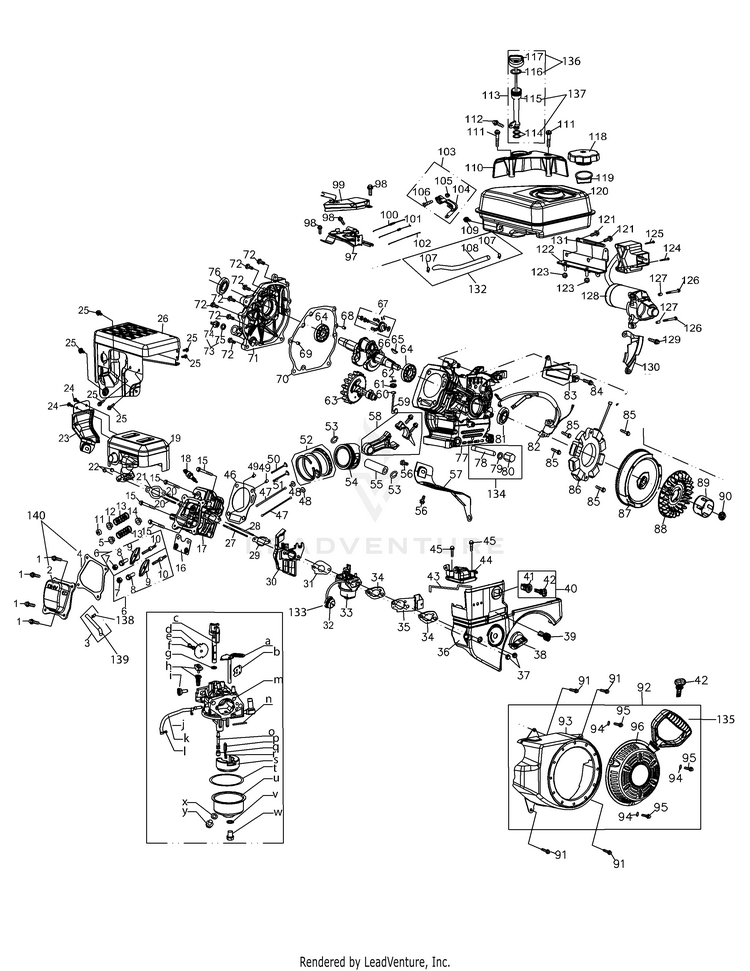

Engine Assembly 365-SUB 2010 & After

...
...
1
Bolt M6×16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Breather Hose Assembly (Furnish Components) MTD-NA
...
4
VALVE COVER GASKET (Also Available in Kit Below) MTD-751P11565B
...
5
Intake Valve Spring Retainer (Also Available in Kit Below) MTD-951-12000
...
6
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
7
Nut, Pivot Locking (Also Available in Kit Below) MTD-751-11124
...
8
Adjusting Nut ,Valve (Also Available in Kit Below) MTD-751-11123
...
9
Rocker Arm (Also Available in Kit Below) MTD-951-11893
...
10
Bolt, Pivot (Also Available in Kit Below) MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER (Also Available in Kit Below) MTD-751P12002A
...
12
Exhaust Valve Spring Retainer (Also Available in Kit Below) MTD-951-12003
...
13
VALVE SPRING (Also Available in Kit Below) MTD-751P12004A
...
14
Intake Valve Seal (Also Available in Kit Below) MTD-951-11894
...
15
Bolt M8×55 MTD-710-04933
...
16
Push Rod Guide (Also Available in Kit Below) MTD-951-11895
...
17
Cylinder Head (Furnish Cylinder Head Kit) MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Assembly MTD-951-11282
...
20
Stud M8×36 MTD-710-05001
...
20
Muffler Stud Assembly MTD-951-10657
...
21
MUFFLER GASKET (Also Available in Kit Below) MTD-751P11289A
...
22
Nut, M8 MTD-712-04214
...
23
Exhaust Pipe Shield MTD-951-11111
...
24
Bolt M6×10 MTD-710-04914
...
25
Bolt M6×12 MTD-710-04915
...
26
Muffler Shield MTD-951-10642B
...
27
Stud M6×117 MTD-710-04939
...
28
Stud M6×105 MTD-710-04910
...
29
CARBURETOR INSULATOR GASKET (Also Available in Kit Below) MTD-751P11567B
...
30
Carburetor Insulator (Also Available in Kit Below) MTD-951-11896A
...
31
CARBURETOR GASKET MTD-751P12005A
...
32
PRIMER MTD-951-10639B
...
33
Carburetor Assembly MTD-951-12705
...
34
CARBURETOR GASKET PLATE MTD-751P11897B
...
35
Choke Control Bracket MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch MTD-951-10637
...
41
Key Switch Base (Furnish Assembly) MTD-NA
...
42
Ignition Key MTD-951-10630
...
43
Choke Push Rod MTD-951-10640
...
44
Air Filter Heating Pipe Cover MTD-951-10635
...
45
Bolt M6×25 MTD-710-04919
...
46
Gasket, Cylinder Head (Also Available in Kit Below) MTD-951-11898
...
47
Push Rod Kit MTD-951-10648
...
48
Tappet (Also Available in Kit Below) MTD-951-11899
...
49
Dowel Pin 10×16 (Also Available in Kit Below) MTD-715-04108
...
50
Valve Kit (Also Available in Kit Below) MTD-951-10647A
...
51
Valve Kit (Also Available in Kit Below) MTD-951-10647A
...
52
Piston Ring Set (Also Available in Kit Below) MTD-951-11688
...
53
PISTON PIN SNAP RING (Also Available in Kit Below) MTD-951-11632
...
54
Piston (Also Available in Kit Below) MTD-951-11900
...
55
Piston Pin (Also Available in Kit Below) MTD-951-11901
...
56
Bolt M6×12 MTD-710-04915
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD (Also Available in Kit Below) MTD-751P11573A
...
59
Governor Shaft (Also Available in Kit Below) MTD-951-14053
...
60
Washer 5.2×1.9 (Also Available in Kit Below) MTD-736-04461
...
61
OIL SEAL (Also Available in Kit Below) MTD-951-11902A
...
62
Cotter Pin (Also Available in Kit Below) MTD-714-04078
...
63
CAMSHAFT ASSEMBLY (Also Available in Kit Below) MTD-951-11575
...
64
Bearing (Also Available in Kit Below) MTD-951-11369
...
65
WOODRUFF KEY (Also Available in Kit Below) MTD-751P10307A
...
66
Crankshaft Assembly (Also Available in Kit Below) MTD-NA
...
67
GOVERNOR GEAR (Also Available in Kit Below) MTD-751P11576A
...
68
DOWEL PIN 9 X 14 (Also Available in Kit Below) MTD-715-04096A
...
69
DOWEL PIN 9 X 14 (Also Available in Kit Below) MTD-715-04096A
...
70
CRANKCASE GASKET (Also Available in Kit Below) MTD-751P11371B
...
71
Cover Comp, Left Crankcase (Also Available in Kit Below) MTD-NA
...
72
Bolt:M8X32 (Also Available in Kit Below) MTD-710-04932
...
73
Oil Fill Plug Assembly (Incl Ref No. 74 & 75) MTD-951-11283
...
74
Fill Plug (Also Available in Kit Below) MTD-NA
...
75
O-RING 15.8 x 2.5 (Also Available in Kit Below) MTD-951-11577
...
76
OIL SEAL (Also Available in Kit Below) MTD-751P11368A
...
77
Crankcase (Furnish Crankcase Kit) MTD-NA
...
78
Oil Drain Pipe (Also Available in Kit Below) MTD-951-11350
...
79
FLAT WASHER (Also Available in Kit Below) MTD-736-04440A
...
80
Oil Drain Plug (Also Available in Kit Below) MTD-710-04906
...
81
OIL SEAL (Also Available in Kit Below) MTD-751P11370A
...
82
Ignition Module MTD-951-10646A
...
83
Air Flow Shield MTD-951-11110
...
84
Bolt M6 x 10 MTD-710-04940
...
85
Bolt,Flange M6 x 25 MTD-710-04919
...
86
Alternator Assembly MTD-951-12050A
...
87
Flywheel MTD-951-12051
...
88
COOLING FAN MTD-951-10909B
...
89
Starter Cup MTD-951-10911
...
90
Flywheel Nut M14 MTD-712-04287
...
91
Bolt M6×12 MTD-710-05103
...
92
Recoil Starter (Furnish Components) MTD-NA
...
93
Recoil Housing MTD-951-12644
...
94
FLAT WASHER MTD-736-04455B
...
95
Bolt,Flange M6 x 10 MTD-710-04974
...
96
Recoil Starter MTD-951-14151
...
97
Throttle Control Assembly MTD-951-10758
...
98
Bolt, M6 x 12 MTD-710-05103
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
103
Governor Arm Assembly (Furnish Components) MTD-NA
...
104
Governor Arm Bracket MTD-951-11106
...
105
Nut M6 MTD-712-05015
...
106
BOLT:M6 X 21 GOVN ARM MTD-710-04908
...
107
CARBURETOR HOSE CLAMP MTD-951-11700A
...
108
Fuel Hose (Furnish Assembly) MTD-NA
...
109
BOLT:M6X12 ZINC COATING MTD-710-04915
...
110
Cover - Engine/Dipstick MTD-951-11914
...
111
Bolt MTD-710-04905
...
112
Bolt, M6 x 12 MTD-710-04915
...
113
Dipstick Assembly Complete (Furnish Components) MTD-NA
...
114
Oil Fill Tube O-Ring MTD-951-11381
...
115
Dipstick Tube (Furnish Assembly) MTD-NA
...
116
O-Ring - Dipstick MTD-951-11904
...
117
Dipstick Cap (Furnish Assembly) MTD-NA
...
118
Fuel Cap Assembly MTD-951-12533
...
119
Fuel Level Indicator MTD-951-11933
...
120
Fuel Tank MTD-951-10653B
...
120
Fuel Tank Nipple MTD-951-10651
...
121
Bolt, Flange M6 x 20 MTD-710-04914
...
122
Switch Hsg Mounting Bracket MTD-951-11114
...
123
Nut M6 MTD-712-05015
...
124
Screw M4 x 55 MTD-710-04965
...
125
Screw M4 x 60 MTD-710-04935
...
126
Screw M6 x 32 MTD-710-05182
...
127
DOWEL PIN MTD-715-04088A
...
128
Electric Starter MTD-951-10645A
...
129
Bolt, M6 x 18 MTD-710-04979
...
130
Blower Housing Shield MTD-951-11109
...
131
Flexible Clamp MTD-951-11680
...
132
Fuel Line Kit (Incl Ref No. 107 & 108) MTD-951-10650
...
133
Primer Bulb MTD-951-11824
...
134
Oil Drain Assembly (Incl Ref No. 78-80) MTD-951-10641
...
135
Starter Handle MTD-731-05696
...
136
Dipstick Assembly (Incl Ref No. 116 & 117) MTD-951-11912
...
137
Oil Fill Tube Assembly (Incl Ref No. 114 & 115) MTD-951-11913
...
138
Clamp MTD-726-04101
...
139
Breather Hose MTD-951-14855
...
140
Valve Cover Kit (Incl Ref No. 2 & 4) MTD-951-12626
...
a
Choke Shaft (Also Available in Kit Below) MTD-NA
...
b
Choke Plate (Also Available in Kit Below) MTD-NA
...
c
Throttle Shaft (Also Available in Kit Below) MTD-NA
...
d
Throttle Plate (Also Available in Kit Below) MTD-NA
...
e
Screw M3×5 (Also Available in Kit Below) MTD-NA
...
f
Lock Washer (Also Available in Kit Below) MTD-NA
...
g
Gasket, Throttle Plate (Also Available in Kit Below) MTD-NA
...
h
Idle Jet Assembly (Also Available in Kit Below) MTD-NA
...
i
Idle Speed Adjusting Screw (Also Available in Kit Below) MTD-NA
...
j
Mixture Screw (Also Available in Kit Below) MTD-NA
...
k
Primer Hose (Also Available in Kit Below) MTD-951-11905
...
l
Hose Clamp (Also Available in Kit Below) MTD-951-11906
...
m
Carburetor Body (Also Available in Kit Below) MTD-NA
...
n
Float Pin (Also Available in Kit Below) MTD-NA
...
o
Emulsion Tube (Also Available in Kit Below) MTD-NA
...
p
Needle Valve (Also Available in Kit Below) MTD-NA
...
q
Main Jet (Also Available in Kit Below) MTD-NA
...
r
Needle Valve Spring (Also Available in Kit Below) MTD-NA
...
s
FLOAT (Also Available in Kit Below) MTD-731P09132A
...
t
Fuel Bowl Gasket ( O-Ring ) (Also Available in Kit Below) MTD-951-11589
...
u
Fuel Bowl (Also Available in Kit Below) MTD-NA
...
v
FUEL BOWL GASKET (Also Available in Kit Below) MTD-951-11348A
...
w
Fuel Bowl Mounting Bolt (Also Available in Kit Below) MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET (Also Available in Kit Below) MTD-951-11349A
...
y
FUEL DRAIN PLUG (Also Available in Kit Below) MTD-710-04938
...
xx
Short Block (Incl Ref No. 4,21,29,30,46,48,49,52-55,58-72,74-81) MTD-951-11062B
...
xx
Gasket Kit - Complete (Incl Ref No. 4,21,29-31,34,46,60,61,70,76,79 & 81) MTD-951-11061A
...
xx
Gasket Kit - External (Incl Ref No. 4,21,29,30,31,34 & 79) MTD-951-10661B
...
xx
Cylinder Head Kit (Incl Ref No. 4,5,7-14,16,17,21,29,30,46,50 & 51) MTD-951-10722B
...
xx
Carburetor Repair Kit - HAUYI (Incl Ref No. g,n,o,p,q,r,s,t,v & x) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Incl Ref No. g,n,o,p,q,r,s,t,v & x) MTD-951-12712
...
xx
Crankcase Cover Kit (Incl Ref No. 64,70,71,72,74-76) MTD-951-11246
...
xx
Crankshaft Kit (Incl Ref No. 64-66,76 & 81) MTD-951-11247A
...
xx
Crankcase Kit (Incl Ref No. 61,64,70,76,77 & 81) MTD-951-11248A
...
xx
COMPLETE ENGINE 208cc (not shown) MTD-952Z670-WUB
...
...
...
