MTD OHV Engines 365-SUA Engine

Model: 365-SUA Engine

Save
 Part Not Listed?Part Not Listed?
product name

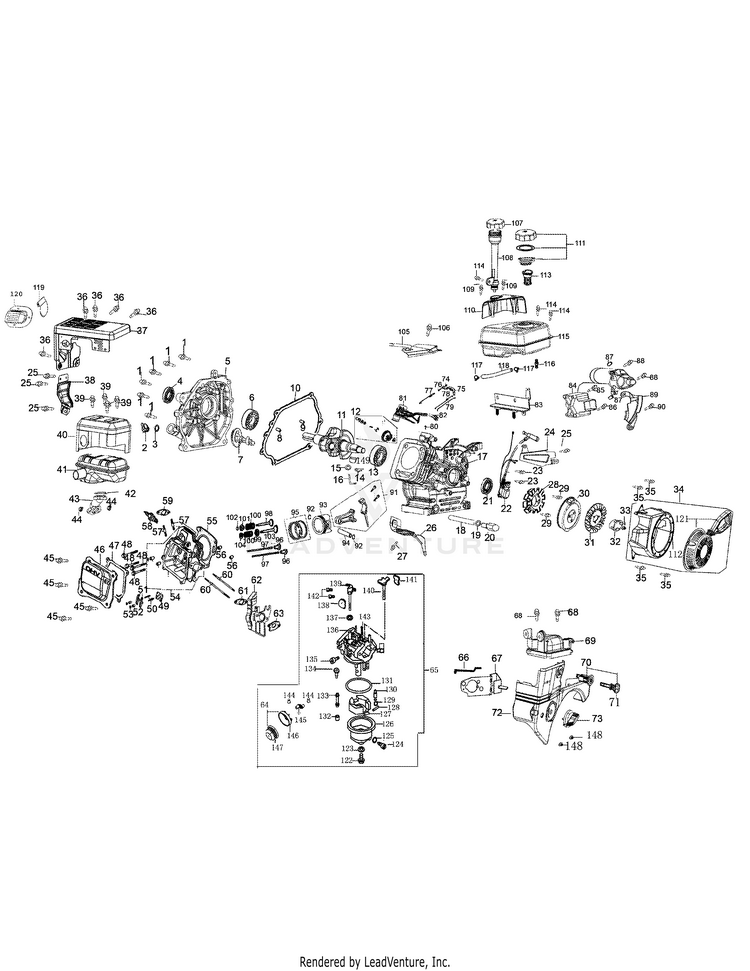

Engine Assembly 365-SUA

...
...
1
Bolt Furnish 951-10724 Short Block MTD-NA
...
1
Bolt Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
2
Oil Filler Plug Furnish 951-10724 Short Block MTD-NA
...
2
Drain Bolt Furnish 951-10641 Oil Drain Assembly MTD-NA
...
2
Oil Fill Plug Furnish 951-10669 Oil Fill Plug Assy MTD-NA
...
2
Oil Filler Plug Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
3
O-ring - Oil Filler Plug Furnish 951-10724 Short Block MTD-NA
...
3
O-ring Furnish 951-10669 Oil Fill Plug Assy MTD-NA
...
3
O-ring - Oil Filler Plug Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
4
Oil Seal Furnish 951-10723A Gasket Kit Complete MTD-NA
...
4
Oil Seal Furnish 951-10724 Short Block MTD-NA
...
4
Oil Seal Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
4
Oil Seal Furnish 951-11099 Crankshaft Kit MTD-NA
...
5
Crankcase Cover Furnish 951-10724 Short Block MTD-NA
...
5
Crankcase Cover Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
6
Radial Ball Bearing Furnish 951-10724 Short Block MTD-NA
...
6
Radial Ball Bearing Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
6
Radial Ball Bearing Furnish 951-11099 Crankshaft Kit MTD-NA
...
7
Camshaft Assembly Furnish 951-10724 Short Block MTD-NA
...
8
Dowel Pin Furnish 951-10724 Short Block MTD-NA
...
9
Dowel Pin Furnish 951-10724 Short Block MTD-NA
...
10
Crankcase Cover Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
10
Case Cover Gasket Furnish 951-10724 Short Block MTD-NA
...
10
Case Cover Gasket Furnish 951-11098 Crankshaft Cover Kit MTD-NA
...
11
Crankshaft Assembly Furnish 951-10724 Short Block MTD-NA
...
11
Crankshaft Assembly Furnish 951-11099 Crankshaft Kit MTD-NA
...
12
Governor Assembly Furnish 951-10724 Short Block MTD-NA
...
13
Bearing Furnish 951-10724 Short Block MTD-NA
...
13
Bearing Furnish 951-11100 Crankcase Kit MTD-NA
...
13
Bearing Furnish 951-11099 Crankshaft Kit MTD-NA
...
14
Pin Lock Furnish 951-10724 Short Block MTD-NA
...
15
O-ring Furnish 951-10723A Gasket Kit Complete MTD-NA
...
15
O-ring - Governor Arm Furnish 951-10724 Short Block MTD-NA
...
15
O-ring - Governor Arm Furnish 951-11100 Crankcase Kit MTD-NA
...
16
Governor Arm Shaft Furnish 951-10724 Short Block MTD-NA
...
17
Crankcase Complete Furnish 951-10724 Short Block MTD-NA
...
17
Crankcase Complete Furnish 951-11100 Crankcase Kit MTD-NA
...
18
Oil Drain Pipe Furnish 951-10724 Short Block MTD-NA
...
18
Oil Drain Pipe Furnish 951-10641 Oil Drain Assembly MTD-NA
...
19
Oil Drain Washer Furnish 951-10723A Gasket Kit Complete MTD-NA
...
19
Oil Drain Washer Furnish 951-10661A Gasket Kit External MTD-NA
...
19
Oil Drain Plug Washer Furnish 951-10724 Short Block MTD-NA
...
20
Oil Drain Bolt Furnish 951-10724 Short Block MTD-NA
...
21
Bearing Furnish 951-11100 Crankcase Kit MTD-NA
...
21
Bearing Furnish 951-11099 Crankshaft Kit MTD-NA
...
22
Ignition Module MTD-951-10646A
...
24
Air Flow Shield MTD-951-11110
...
26
Air Shield MTD-951-11113
...
28
Alternator Assembly MTD-951-12050A
...
30
Flywheel MTD-951-10805
...
31
COOLING FAN MTD-951-10909B
...
32
Starter Cup MTD-951-10911
...
35
Bolt, Flange M6 x 16 MTD-710-04968
...
37
Muffler Shield MTD-951-10642B
...
38
Exhaust Pipe Shield MTD-951-11111
...
40
MUFFLER GUARD MTD-908-05022
...
41
Muffler Assembly Furnish 951-10644 Muffler Assembly Complete MTD-NA
...
42
Paper Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
43
Exhaust Pipe Furnish 951-10644 Muffler Assembly Complete MTD-NA
...
46
Valve Cover MTD-951-11054B
...
46
Valve Cover Furnish 951-11063 Valve Cover Kit MTD-951-11054B
...
47
Head Cover Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
47
Head Cover Gasket Furnish 951-10661A Gasket Kit External MTD-NA
...
47
Valve Cover Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
47
Valve Cover Gasket Furnish 951-10724 Short Block MTD-NA
...
47
Valve Cover Gasket Furnish 951-11063 Valve Cover Kit MTD-NA
...
48
Bolt- M8 x 55 ZIN MTD-710-04933
...
49
Push Rod Guide Furnish 951-10722 Cylinder Head Assy MTD-NA
...
50
Rocker Arm Studs Furnish 951-10722 Cylinder Head Assy MTD-NA
...
51
Rocker Arm Furnish 951-10722 Cylinder Head Assy MTD-NA
...
52
Pivot Adjusting Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
53
Rocker Arm Lock Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
55
Cylinder Head Gasket 170 Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10724 Short Block MTD-NA
...
56
Dowel Pin Furnish 951-10724 Short Block MTD-NA
...
58
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
59
Muffler Gasket MTD-951-10666
...
59
Muffler Gasket Furnish 951-10723A Gasket Kit Complete MTD-951-10666
...
59
Muffler Gasket Furnish 951-10661A Gasket Kit External MTD-951-10666
...
59
Muffler Gasket Furnish 951-10722 Cylinder Head Assy MTD-951-10666
...
59
Muffler Gasket Furnish 951-10724 Short Block MTD-951-10666
...
60
Muffler Stud Assembly MTD-951-10657
...
61
Carb Insulator Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
61
Carburetor Insulator Gasket Furnish 951-10661A Gasket Kit External MTD-NA
...
61
Carburetor Insulator Plate Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
61
Carburetor Insulator plate gasket Furnish 951-10724 Short Block MTD-NA
...
62
Carburetor Insulator Furnish 951-10723A Gasket Kit Complete MTD-NA
...
62
Carburetor Insulator Furnish 951-10661A Gasket Kit External MTD-NA
...
62
Carburetor Insulator Plate Furnish 951-10722 Cylinder Head Assy MTD-NA
...
62
Carburetor Insulator Plate Furnish 951-10724 Short Block MTD-NA
...
63
Carburetor Gasket Furnish 951-10723A Gasket Kit Complete MTD-NA
...
63
Carburetor Gasket Furnish 951-10661A Gasket Kit External MTD-NA
...
64
PRIMER MTD-951-10639B
...
65
Carburetor Assembly MTD-951-12705
...
66
Choke Push Rod MTD-951-10640
...
67
Choke Control Bracket MTD-951-11112
...
69
Air Filter Heating Pipe Cover MTD-951-10635
...
70
Ignition Switch MTD-951-10637
...
71
Ignition Key MTD-951-10630
...
72
Air Cleaner Housing MTD-951-10634A
...
73
Choke Knob MTD-951-11284
...
77
Governor Spring MTD-951-10654
...
78
THROTTLE SPRING MTD-751P10664A
...
79
THROTTLE LINKAGE MTD-751P10665A
...
81
Throttle Control Assembly MTD-951-10758
...
82
THROTTLE LEVER KNOB MTD-751P10757A
...
83
Switch Mounting Housing Bracket MTD-951-11114
...
84
Electric Starter MTD-951-10645A
...
89
Blower Housing Shield MTD-951-11109
...
91
Connecting Rod Assembly Complete Furnish 951-10724 Short Block MTD-NA
...
92
Piston Pin Clip Furnish 951-10724 Short Block MTD-NA
...
93
Piston Furnish 951-10724 Short Block MTD-NA
...
94
Piston Pin Furnish 951-10724 Short Block MTD-NA
...
95
Piston Ring Set - Complete Furnish 951-10724 Short Block MTD-NA
...
96
Valve Lifter (Tappet) Furnish 951-10724 Short Block MTD-NA
...
97
Push Rod Kit MTD-951-10648
...
98
Exhaust Valve Furnish 951-10722 Cylinder Head Assy MTD-951-10648
...
98
Exhaust Valve Furnish 951-10647 Valve Kit MTD-951-10648
...
100
Valve Spring Furnish 951-10722 Cylinder Head Assy MTD-NA
...
101
Valve Spring Retainers - Exhaust Furnish 951-10722 Cylinder Head Assy MTD-NA
...
102
Exhaust Valve Adjuster Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10647 Valve Kit MTD-NA
...
104
Valve Spring Retainer- Intake Furnish 951-10722 Cylinder Head Assy MTD-NA
...
105
Governor Shield MTD-951-11108
...
107
Dipstick Assembly MTD-631-05020AP
...
108
Dipstick Assembly MTD-631-05020AP
...
110
Cover - Engine/Dipstick MTD-951-10662
...
111
Fuel Cap Complete Furnish 951-10649 Fuel Cap Assy MTD-NA
...
112
Recoil Housing MTD-951-12644
...
113
Fuel Filter MTD-951-10652
...
115
Fuel Tank Assembly MTD-951-10653B
...
116
Fuel Tank Nipple MTD-951-10651
...
117
Fuel Line Clamp Furnish 951-10650 Fuel Line Kit MTD-NA
...
118
Fuel Line Furnish 951-10650 Fuel Line Kit MTD-NA
...
119
Exhaust Deflector Pipe MTD-951-10769
...
120
Exhaust Deflector Shield MTD-951-10768
...
121
Recoil Starter MTD-951-14151
...
127
FLOAT MTD-731P09132A
...
149
WOODRUFF KEY MTD-751P10307A
...
149
Flywheel Key Furnish 951-11099 Crankshaft Kit MTD-NA
...
150
Governor Seal Furnish 951-11100 Crankcase Kit MTD-NA
...
xx
Starter Handle Not shown MTD-731-05696
...
xx
WOODRUFF KEY Not shown MTD-751P10307A
...
xx
Oil Drain Assembly Not shown - Incl. Ref # 18 &2 MTD-951-10641
...
xx
Muffler Assembly Not shown - Incl. Ref # 41 & 43 MTD-951-11282
...
xx
Valve Kit Not shown - Incl. Ref # 98 & 103 MTD-951-10647A
...
xx
Push Rod Kit Not shown MTD-951-10648
...
xx
Fuel Cap Assembly Incl. Ref # 111 MTD-951-12533
...
xx
Fuel Line Kit Not shown - Incl. Ref # 117 & 118 MTD-951-10650
...
xx
Muffler Stud Assembly Not shown MTD-951-10657
...
xx
Gasket Kit - Complete Not shown MTD-951-10660A
...
xx
Gasket Kit-External Not shown - Incl. Ref # 19, 59, 61, 62, 63, & 47 MTD-951-10661B
...
xx
Oil Fill Plug Assembly Not shown - Incl. Ref # 2 & 3 MTD-951-10669
...
xx
Cylinder Head Kit Not shown - Incl. Ref # 51, 103, 98, 100, 101, 52, 53, 50, 49, 47, 61, 62, 59, 55, 102, & 104 MTD-951-10722B
...
xx
Gasket Kit Complete Not shown - Incl. Ref # 4, 10, 15, 55, 59, 47, 61, 62, 63, 42, & 19 MTD-951-10723A
...
xx
Short Block Not shown - Incl. Ref # 17, 5, 93, 95, 94, 92, 91, 96, 7, 61, 11, 62, 59, 16, 14, 12, 10, 55, 47, 20, 19, 9, 8, 56, 13, 1, 4, 6, 15, 2, 3, & 18 MTD-951-11062B
...
xx
Carburetor Repair Kit - HAUYI (Not shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Not shown) MTD-951-12712
...
xx
Valve Cover Kit Not shown - Incl. Ref # 46 & 47 MTD-951-12626
...
xx
Short Block Not shown - Incl. Ref # 1, 2, 3, 4, 5, 6, & 10 MTD-951-11062B
...
xx
Crankshaft Kit Not shown - Incl. Ref # 4, 6, 11, 13, 21, & 149 MTD-951-11099
...
xx
Short Block Not shown - Incl. Ref # 13, 15, 17, & 21 MTD-951-11062B
...
xx
Cylinder Head Not shown, Furnish 951-10722 Cylinder Head Assy MTD-NA
...
xx
Oil Pipe Reserve Not shown, Furnish 951-10724 Short Block MTD-NA
...
xx
Packing (Gasket) Not shown, Furnish 951-10649 MTD-NA
...
xx
Clip (Gasket Retainer) Not shown, Furnish 951-10649 MTD-NA
...
xx
COMPLETE ENGINE 208cc (Not shown) MTD-952Z670-WUB
...
...
...
