MTD OHV Engines 1P51RU 79cc Engine MTD OHV Engine

Model: 1P51RU 79cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

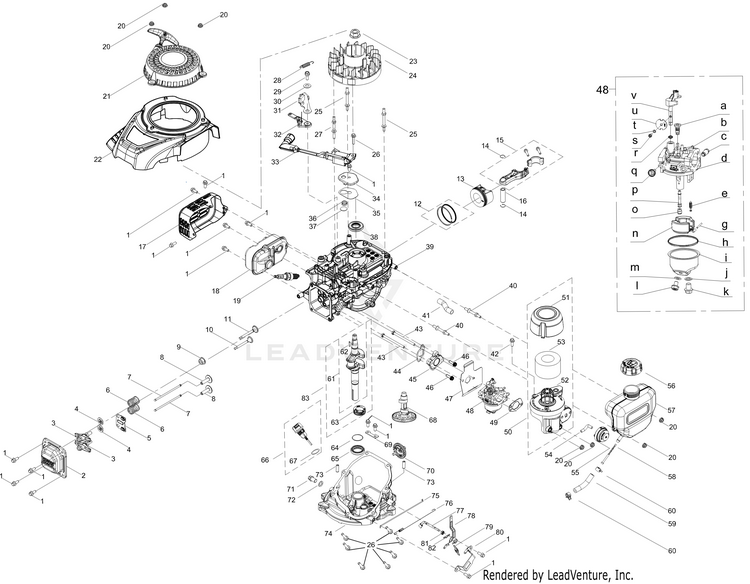

1P51RU General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-751P15154A
...
3
ROCKER ARM ASSEMBLY MTD-951-11606
...
4
VALVE SPRING RETAINER MTD-951-11977
...
5
PUSH ROD GUIDE MTD-751P15178
...
6
VALVE SPRING MTD-751P12004A
...
7
PUSH ROD MTD-751P15177
...
8
TAPPET (LIFTER) MTD-951-11607
...
9
INTAKE VALVE SEAL MTD-921-04237A
...
10
EXHAUST VALVE MTD-951-14641
...
11
INTAKE VALVE MTD-951-14640A
...
12
PISTON MTD-751-19470
...
13
PISTON RING SET MTD-751-19468
...
14
SNAP RING-PISTON PIN MTD-951-11603
...
15
CONNECTING ROD MTD-651P05335
...
16
PISTON PIN MTD-751P19469
...
17
MUFFLER GUARD MTD-751P15133A
...
18
MUFFLER MTD-751P15131
...
19
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
20
HEX NUT MTD-712-05015
...
21
STARTER RECOIL ASSEMBLY MTD-951-05320A
...
22
ENGINE SHROUD MTD-631P05345
...
23
FLYWHEEL NUT MTD-712-04287
...
24
ENGINE FLYWHEEL MTD-925-06190A
...
25
STUD M6 x 75 MTD-710-06208
...
26
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
27
STUD M6 x 73 MTD-710-06209
...
28
ENGINE BRAKE SPRING MTD-932-05379
...
29
ENGINE BRAKE PIN M6-1.0 MM MTD-911-06531
...
30
FLAT WASHER 10x20x1.0 MM MTD-936-05145
...
31
ENGINE BRAKE ARM MTD-951-15098
...
32
ENGINE BRAKE LOWER BRACKET MTD-651-05306
...
33
IGNITION COIL MTD-925-06488
...
34
BREATHER COVER PLATE MTD-708-05172
...
35
BREATHER GASKET MTD-721-04830
...
36
BREATHER VALVE SPRING MTD-732-04718
...
37
BREATHER VALVE MTD-951-11614
...
38
UPPER CRANKSHAFT SEAL MTD-921-04700
...
39
CRANKCASE MTD-751P19471
...
40
FUEL TANK MOUNTING STUD M6X59.5 MTD-751P15136
...
41
BREATHER HOSE MTD-735P05144
...
42
BOLT M6 x 16 MTD-710-04968
...
43
BOLT M6X80 MTD-710-06220
...
44
CARBURETOR INSULATION GASKET MTD-721-04833A
...
45
CARBURETOR INSULATOR MTD-751P15138A
...
46
BOLT M6X20 MTD-710-06195
...
47
CARBURETOR GASKET MTD-721-04832A
...
48
CARBURETOR MTD-651P07235
...
49
AIR FILTER BASE GASKET MTD-951-14419A
...
50
AIR FILTER ASSEMBLY (Components Only) MTD-NA
...
51
AIR FILTER COVER MTD-931-11695A
...
52
AIR FILTER BASE MTD-931-05507A
...
53
AIR FILTER - FOAM MTD-951-15137A
...
53
Genuine Factory Parts AIR FILTER FOAM Retail Packaged Part MTD-490-200-M074
...
54
PRIMER HOSE MTD-735P05143
...
55
PRIMER ASSEMBLY MTD-951-05177A
...
56
FUEL CAP ASSEMBLY MTD-651P05182
...
57
FUEL TANK MTD-751P19472
...
58
FUEL FILTER MTD-951-12296A
...
58
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
59
FUEL HOSE MTD-735P05142A
...
60
CARBURETOR HOSE CLAMP MTD-951-11700A
...
61
CRANKSHAFT MTD-751P15141
...
62
WOODRUFF KEY MTD-751P10307A
...
63
GEAR MTD-931-10288A
...
64
THRUST WASHER MTD-736-04491
...
65
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
66
DIPSTICK ASSEMBLY MTD-651P05334A
...
67
DIPSTICK SEAL MTD-721-04839
...
68
CAMSHAFT MTD-751P19473
...
69
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
70
GEAR GOVERNOR MTD-951-05336A
...
71
OIL DRAIN PLUG MTD-710-04906
...
72
FLAT WASHER MTD-736-04440A
...
73
DOWEL PIN 7X20 MTD-715-05058
...
74
CRANKCASE COVER MTD-751P15152
...
75
THROTTLE LINKAGE MTD-751P15144
...
76
THROTTLE LINKAGE SPRING MTD-732P05411
...
77
GOVERNOR ARM SHAFT MTD-751P15143
...
78
GOVERNOR ARM ASSEMBLY MTD-651P05327
...
79
GOVERNOR SPRING MTD-951-14411
...
80
COMPONENT BRACKET MTD-708-05179
...
81
GOVERNOR SEAL MTD-751P15150
...
82
COTTER PIN MTD-714-04078
...
83
CRANKSHAFT MTD-651P05347
...
a
Idle Jet Assembly MTD-NA
...
b
Primer Port MTD-NA
...
c
Fuel Inlet MTD-NA
...
d
Carburetor Body MTD-NA
...
e
Needle Valve MTD-NA
...
g
Float Pin MTD-NA
...
h
FLOAT BOWL O-RING MTD-721-04710A
...
i
Fuel Bowl MTD-NA
...
j
FLOAT BOWL GASKET MTD-721-04709
...
k
Fuel Bowl Mounting Bolt MTD-NA
...
l
Fuel Drain Plug MTD-NA
...
m
CARB FUEL DRAIN GASKET MTD-721-04974
...
n
Float MTD-NA
...
o
Main Jet MTD-NA
...
p
Emulsion Tube MTD-NA
...
q
Idle Speed Adjusting Screw MTD-NA
...
r
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
s
Screw M3×6 Throttle Plate MTD-NA
...
t
LOCK WASHER MTD-736-04638A
...
u
Throttle Plate MTD-NA
...
v
Throttle Shaft MTD-NA
...
xx
COMPLETE ENGINE 79cc MTD-952Z1P51RU
...
...
...
