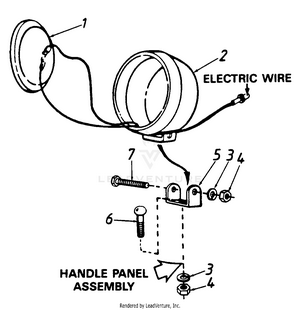

MTD 390-255-000 (1991) 18 Watt Headlight Kit Snow Thrower

Model: 390-255-000 (1991) 18 Watt Headlight Kit

Save
 Part Not Listed?Part Not Listed?
product name

255

...
...
1
Headlight MTD-925-1300
...
2
Lamp Assembly MTD-725-1301
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
HEX NUT 5/16-18 MTD-712-3010
...
5
Lamp Mounting Bracket MTD-13359
...
6
Carriage Bolt 5/16-18 x 1/4 MTD-710-0276
...
7
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
xx
Adapter (Not Shown) MTD-725-1302
...
...
...
