product name

MTD 31960S (1985) Snow Thrower

Model: 31960S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

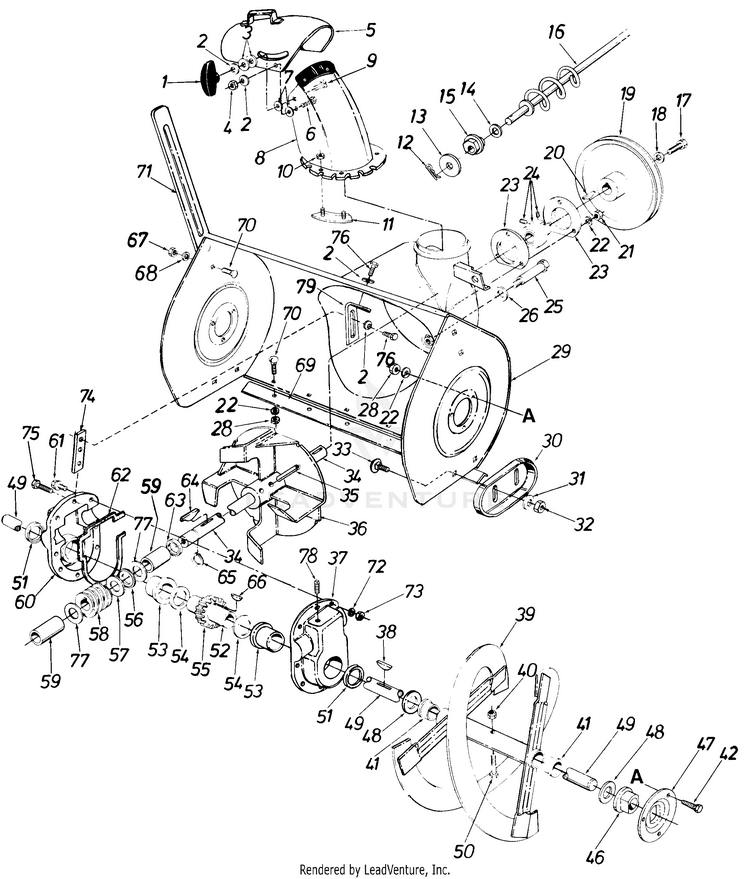

Snow

...
...
1
Star Knob MTD-720-04072A
...
2
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
3
Fl. Wash. .312 I.D. x 1.125 O.D. x .125 MTD-736-0231
...
4
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
5
Top Chute Ass'y. MTD-05225
...
6
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
7
Fl-Wash. .53 I.D. x 1.25 O.D. x .100 MTD-736-0179
...
8
Chute Ass'y. MTD-05996
...
9
Carr. Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
10
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
11
Chute Flange Keeper Ass'y. MTD-05783
...
12
Cotter Pin MTD-714-0507
...
13
Fl-Wash. .390" I.D. x 1.50" O.D. MTD-736-0234
...
14
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
15
Hex Bushing MTD-741-0403
...
16
Chute Crank Ass'y. MTD-05981
...
17
SCREW 5/16-18 x .750 MTD-710-1880
...
18
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
19
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243
...
20
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
24
Self Aligning Brg. .875 I.D. MTD-941-0185
...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
26
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Blower Hsg. Ass'y. (800) MTD-784-5010
...
xx
Blower Hsg. Ass'y. (960) MTD-784-5011
...
30
Skid Shoe MTD-784-5038B-0637
...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
34
Blower Axle MTD-738-0276
...
35
Spring Pin Spiral 5/16" Dia. x 1.75" Lg. MTD-715-0118
...
36
Blower Fan Ass'y. MTD-05812
...
37
Complete Gear Hsg. Half- 0 L.H. (Incl. Bearing) MTD-753-0889
...
38
#91 Woodruff Key 1/4" x 3/4" Dia. MTD-714-0135
...
39
6" Spiral Ass'y. L.H. (800) MTD-05463
...
xx
2" Spiral Ass'y. R.H. (800) MTD-05464
...
xx
3" Spiral Ass'y. L.H. (960) MTD-05461
...
xx
3" Spiral Ass'y. R.H. (960) MTD-05462
...
40
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
41
Plastic Bushing MTD-05136
...
42
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
46
Flange Bearing w/ Flats MTD-941-0170
...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
48
Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100 MTD-736-0250
...
49
Spiral Axle 26" (800) MTD-738-0490
...
xx
Spiral Axle 33" (960) MTD-738-0491
...
50
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-0891
...
51
Oil Seal 1.50" I.D. MTD-921-0146
...
52
Worm Gear Shaft MTD-738-0275
...
53
Flange Brg. 1.503 I.D. MTD-741-0182
...
54
Fl-Wash. 1.50 I.D. x 2.00 O.D. x .030 MTD-736-0266
...
55
Double Threaded Worm Gear MTD-917-1425
...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184
...
57
Fl-Wash. .88 I.D. x 1.40 O.D. x .1 50 MTD-736-0291
...
58
Double Threaded Worm-L.H. MTD-917-0299
...
59
Sleeve Brg. .875 I.D. MTD-941-0217
...
60
Complete Gear Hsg. Half- 0 L.H. (Incl. Ref. Nos. 51 & 53) MTD-753-0889
...
61
Hex Scr. 5/16-18 x 1.00" Lg. MTD-710-0376
...
62
Gasket MTD-921-0144
...
63
Oil Seal .875" I.D. MTD-921-0145
...
64
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
65
Snap Ring for.875" Dia. Shaft MTD-716-0111
...
66
#91 Woodruff Key 1/4 x 3/4" Dia. MTD-714-0135
...
67
HEX NUT 5/16-18 MTD-712-3010
...
68
Lock Wash. 5/16" I.D. MTD-936-0119
...
69
Shave Plate 26" (800) MTD-05000-0637
...
xx
Shave Place (960) MTD-05378-0637
...
70
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
71
Drift Cutter MTD-790-00181-0637
...
72
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
74
Gear Hsg. Support Brk't. MTD-784-5075
...
75
Hex Scr. 5/16-18 x 1.25" Lg. MTD-710-0528
...
76
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
77
Fl-Wash. .88 I.D. x 1.40 O.D. x .1 50 MTD-736-0291
...
78
Filler Plug MTD-737-0175
...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637

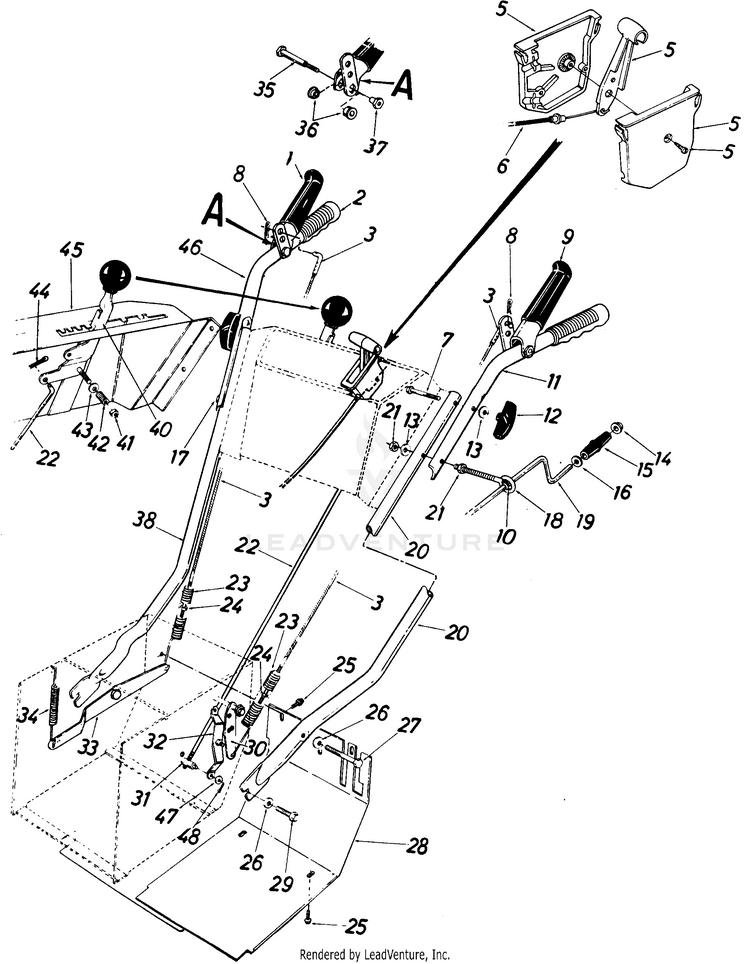

Snow

...
...
1
Clutch Grip Ass'y. R.H. MTD-05988
...
2
Grip MTD-720-04083
...
3
LOCKOUT CABLE MTD-946-0367
...
xx
Plastic Plug MTD-731-0496
...
5
Throttle Control Box Ass'y. MTD-831-0796A
...
6
Throttle Control Wire MTD-946-0500
...
7
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
8
Hairpin Cotter MTD-714-0111
...
9
Clutch Grip Ass'y. L.H. MTD-05987
...
10
BUSHING .380 ID MTD-941-0475
...
11
Upper Handle Half L.H. MTD-749-0593
...
12
Star Knob MTD-720-04072A
...
13
Bell-Wash. .345" I.D. x .88" O.D. x .060 MTD-736-0242
...
14
Cap Speed Nut for 3/8 Rod MTD-726-0100
...
15
Knob - Black MTD-920-0171
...
16
Fl-Wash. .38" I.D. x .62" O.D. x .060 MTD-736-0140
...
17
Carr. Bolt 5/16-18 x 2.50" Lg. MTD-710-0572
...
18
Eyebolt MTD-747-0416
...
19
Chute Crank Ass'y. MTD-747-0313
...
20
Lower Handle Half L.H. MTD-749-0343
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Shift Rod MTD-747-0325
...
23
Ext. Spring .75" O.D. x 5.00" Lg. MTD-732-0184
...
24
Hex ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
25
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
26
Bell-Wash. .401" I.D. x .88" O.D. x .060 MTD-736-0105
...
27
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
28
Frame Cover MTD-05517
...
29
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
30
Drive Clutch Brk't. Ass'y. MTD-05500
...
31
Engagement Ferru MTD-911-0677
...
32
Shifting Linkage Brk't. MTD-05522
...
33
Auger Clutch Brk't. MTD-05518
...
34
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
35
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
36
Hex Flange Brg. Plastic .38" I.D. MTD-741-0402
...
37
Shoulder Nut 1/4-20 Thd. MTD-938-0561
...
38
Lower Handle Half R.H. MTD-749-0344
...
40
Shift Handle Ass'y. MTD-05805
...
41
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
42
Comp. Spring .60" O.D. x .88" Lg. MTD-732-0193
...
43
Bell-Wash. .401" I.D. x .88" O.D. x .060 MTD-736-0105
...
44
Cotter Pin 3/32" Dia. x 1.00" Lg. MTD-714-0111
...
45
Handle Panel Ass'y. MTD-784-5006
...
46
Upper Handle Half R.H. MTD-749-0594
...
47
Fl-Wash. .34 I.D. x .62 O.D. x .060 MTD-736-0264
...
48
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507

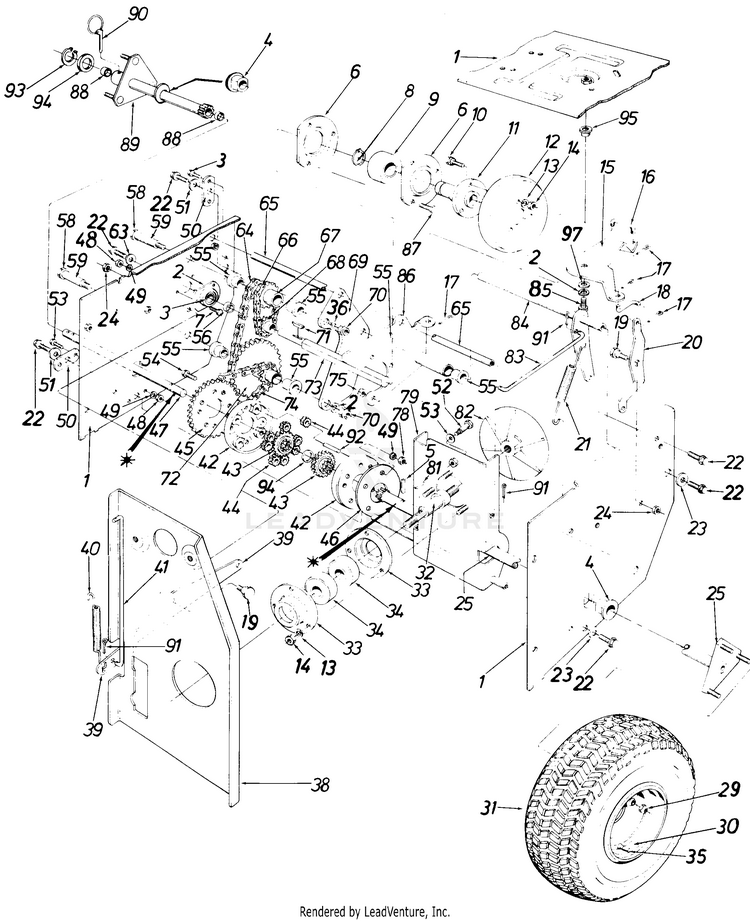

Snow

...
...
1
Frame Ass'y. MTD-05487
...
2
L-Wash. 3/8" I.D. MTD-736-0217
...
3
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
4
Flange Bearing w/ Flats MTD-941-0170
...
5
H-Spring Pin Spiral 3116" Dia. x 1.25" Lg. See special repair instructions in manual MTD-715-0136
...
7
UNKNOWN MTD-NA
...
6
Bearing Housing MTD-05794
...
8
Snap Ring 1.00" Dia. MTD-716-0102
...
9
Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301
...
10
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
11
Friction Wheel Adapter MTD-748-0281
...
12
Friction Wheel Ass'y. MTD-05080AP
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Sliding Linkage Brk't. MTD-05521
...
16
Sliding Rod .31" Dia. x 2.00" Lg. MTD-747-0151
...
17
Cot. Pin 3132" Dia. x .75" Lg. MTD-714-0507
...
18
Shifting Linkage Rod .31" Dia. x 2.25" Lg. MTD-747-0152
...
19
Shld. Scr. .625" Dia. x .170" MTD-738-0281
...
20
Shifting Linkage Brk't. MTD-05522
...
21
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
22
Hex L-Scr. 5/16-18 x .62" Lg. MTD-710-0538
...
23
Fl-Wash. .345 I.D. x .75 O.D. MTD-736-0264
...
24
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
25
Differential Shaft Ass'y. L.H. (Incl. Ref. Nos. 5, 47 & Brg) MTD-05820
...
29
Cone Nut 3/8-24 Thd. MTD-712-0193
...
30
Wheel Rim Ass'y. MTD-09262
...
31
Wheel Ass'y. Comp. 16.0 x 6.50 MTD-734-0748
...
xx
Tire Only 16 x 6.50-8 MTD-734-0275
...
32
Drive Plate Spindle MTD-738-0279
...
33
Bearing Housing MTD-08253B
...
34
BALL BEARING MTD-941-0919B
...
35
TUBELESS VALVE MTD-934-0255
...
36
Bearing Housing MTD-05034A
...
xx
Ball Bearing MTD-741-0133
...
38
Engine Brk't. Ass'y. MTD-05491
...
39
Auger Clutch Brk't. MTD-05518
...
40
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
41
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149
...
42
Differential Housing MTD-748-0222
...
43
20 Tooth Spur Gear MTD-748-0224
...
44
9 Tooth Spur Gear MTD-748-0223
...
45
28 Teeth Sprocket MTD-713-0198
...
46
Differential Hsg. Support Plate MTD-05484
...
47
Differential Connecting Shaft See special repair instructions in manual MTD-738-0284
...
48
Hex Nut 1/4-20 Thd. MTD-912-0287
...
49
L-Wash. 1/4" I.D. MTD-936-0329
...
50
Pivot Axle Brk't. MTD-05523
...
51
Fl-Wash. .345" I.D. x .75" O.D. MTD-736-0264
...
52
Shld. Scr. MTD-738-0144
...
53
Bell-Wash. MTD-736-0105
...
54
Hex Scr. 1/4-28 x 1.75" Lg. MTD-710-0559
...
55
Flange Brg. .630" I.D. MTD-748-0184
...
56
Spacer.51" I.D. x .69" O.D. MTD-750-0277
...
58
Hex Scr. 3/8-24 x 2.75" Lg. MTD-710-0629
...
59
Sprocket Hub Tubing 1.900" Lg. MTD-750-0275
...
63
Bell-Wash. .345" I.D. x .88 O.D. MTD-736-0242
...
64
#41 Chain 1/2" Pitch x 43 Links MTD-713-0270
...
xx
Master Link for #41 Chain MTD-913-0723
...
65
Sliding Support Axle MTD-738-0278
...
66
#41 Chain 1/2" Pitch x 19 Links MTD-713-0199
...
xx
Master Link for #41 Chain MTD-913-0723
...
67
9 and 14 Teeth Sprocket Hub Ass'y. MTD-913-0193
...
68
8 Teeth Sprocket MTD-748-0204
...
69
Chain Support Brk't. MTD-05520
...
70
Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116
...
71
#4 Hi-Pro Key 3/32 x 5/8" Dia. MTD-914-0129
...
72
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194
...
73
Hex Shaft MTD-738-0280
...
74
Chain #420 1/2" Pitch x 37 Links MTD-913-0269
...
xx
Master Link for #420 Chain MTD-913-0154
...
75
Hex Ins. Jam L-Nut 1/4-28" MTD-712-0896
...
78
Hex Nut 1/4-28 Thd. MTD-712-0138
...
79
Drive Plate Mtg. Brk't. Ass'y. MTD-05497
...
81
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
82
Plate, Drive MTD-917-0302
...
83
Drive Clutch Rod .31" Dia. x 7.38" Lg. MTD-747-0150
...
84
Drive Clutch Brk't. Ass'y. MTD-05500
...
85
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
86
Sliding Brk't. Ass'y. MTD-05502
...
87
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
88
Sleeve Brg. MTD-741-0305
...
89
Differential Tubing Ass'y. R.H. MTD-05637
...
90
Click Pin MTD-714-0143A
...
91
Internal Cot. Pin 5/16 Dia. MTD-714-0104
...
92
Differential Pin MTD-738-0304
...
93
Snap Ring .625" Shaft MTD-916-0115
...
94
Fl-Wash. .62 I.D. x 1.25 O.D. MTD-736-0187
...
95
Shld. Spacer .625" I.D. MTD-938-0347
...
97
Fl-Wash. MTD-07386

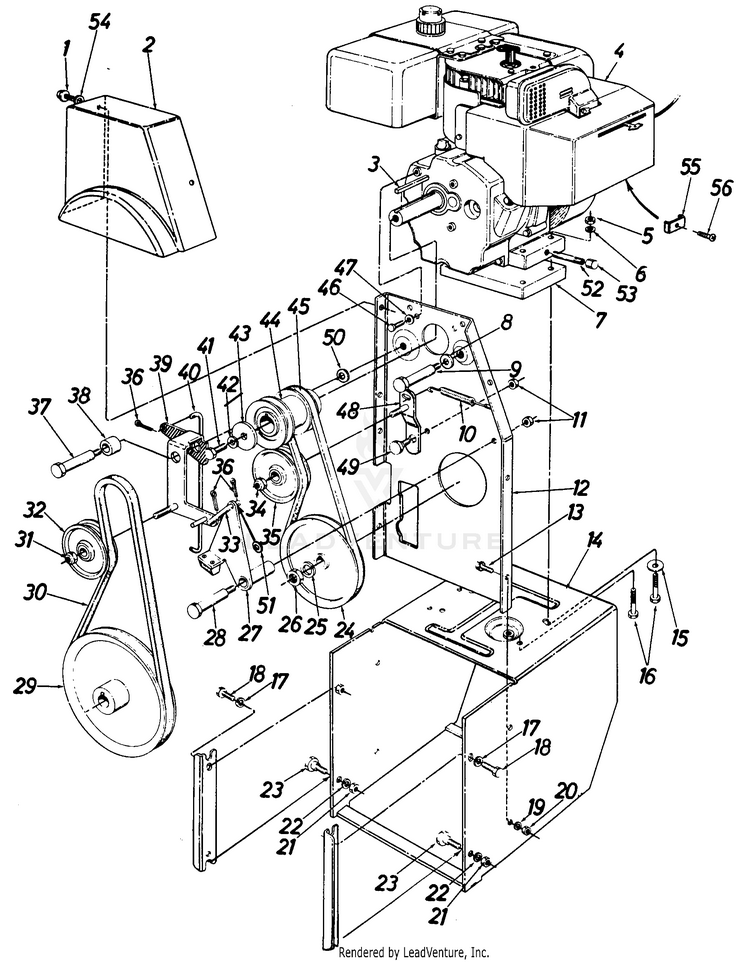

Snow

...
...
1
Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
2
Belt Cover MTD-931-2531
...
3
Sq. Key 1/4" x 1.50" Lg. MTD-714-0118
...
4
Engine MTD-NA
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
Engine Spacer Ass'y. (Used w/Tech. Engine) MTD-717-0522
...
8
Bell-Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
9
Shld. Scr. .498" x 3.0" Lg. (800) MTD-738-0215A
...
xx
Stud 3/8-16 x 3.37" Lg. (960) MTD-711-0769
...
10
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
11
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
12
Engine Brk't. Ass'y. MTD-05491
...
13
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
14
Frame Ass'y. MTD-05487
...
15
Fl-Wash. .345 I.D. x .75 O.D. x .060 MTD-736-0264
...
16
Hex Scr. 5/16-18 x 2.50" Lg. MTD-710-0378
...
17
L-Wash. 3/8 Scr. H.D. MTD-736-0217
...
18
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Hex Nut 3/8-16 Thd. MTD-712-0798
...
22
L-Wash. 3/8 Scr. H.D. MTD-736-0217
...
23
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
24
V-Puiley .628 I.D. x 7.50 O.D. MTD-756-0344
...
25
L-Wash. for 5/8" Scr. MTD-736-0158
...
26
Hex Ins. Jam L-Nut 5/8-18 Thd. MTD-712-0221
...
27
Brake Brkt. Ass'y. MTD-05510A
...
28
Shld. Scr. .498" Dia. x 2.00" Lg. MTD-738-0129
...
29
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243
...
30
V-Belt 1/2" X 45.0" Lg. MTD-954-0194
...
31
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
32
Fl-Idler w/Flanges 3.0 O.D. MTD-756-0240
...
33
Brake Linkage Ass'y. MTD-05531
...
34
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
35
3.0" O.D. Fl-Idler w/Flanges (800) MTD-756-0240
...
xx
Flat Idler Pulley (960) MTD-756-0225
...
36
Int. Cot. Pin 5/16" Dia. MTD-714-0104
...
37
Shld. Scr. .625 Dia. x 2.750" Lg. MTD-738-0282
...
38
Spacer .75 O.D. x 1.00" Lg. MTD-750-0227
...
39
Blower Idler Brk't. Ass'y. MTD-05493
...
40
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149
...
41
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
42
L-Wash. 3/8 Scr. H.D. MTD-736-0217
...
43
Fl-Wash. MTD-07386
...
44
Double Groove Engine Pulley (800) MTD-756-0241B
...
xx
Engine Pulley (960) MTD-756-0429
...
45
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
46
Hex Scr. 5/16-24 x .62" Lg. MTD-710-0237
...
47
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
48
Drive Idler Brk't. Ass'y. MTD-05495
...
49
Shld. Scr. .625" Dia. x .170" Lg. MTD-738-0281
...
50
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
51
Fl-Wash. .34 I.D. x .750 O.D. x .05 MTD-736-0264
...
52
Oil Drain Pipe MTD-737-0298
...
53
Hex Scr. 1/4-18 Pipe Thd. MTD-737-0132
...
54
Fl-Wash. .340 I.D. x .62 O.D. x .62 MTD-736-0264
...
55
Casing Clamp MTD-751B221535
...
56
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
xx
Key (Not Shown) MTD-TC-35062
...
...
...
Processing
