product name

MTD 317-254-000 (1987) Snow Thrower

Model: 317-254-000 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

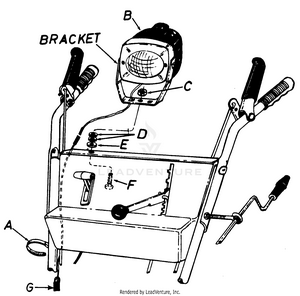

Headlight Kit

...
...
A
Cable Ties MTD-725-0157
...
B
Head Lamp Ass'y. Comp. MTD-725-0692
...
C
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
D
Rubber Wash. .33" I.D. x .87" O.D. x .12 Thk. MTD-735-0127
...
E
Flat Wash. .34" I.D. x 1.12" O.D. x .12 Thk. MTD-736-0231
...
F
Hex Bolt 5/16-18 x 1.0" 4. MTD-710-0376
...
...
...
